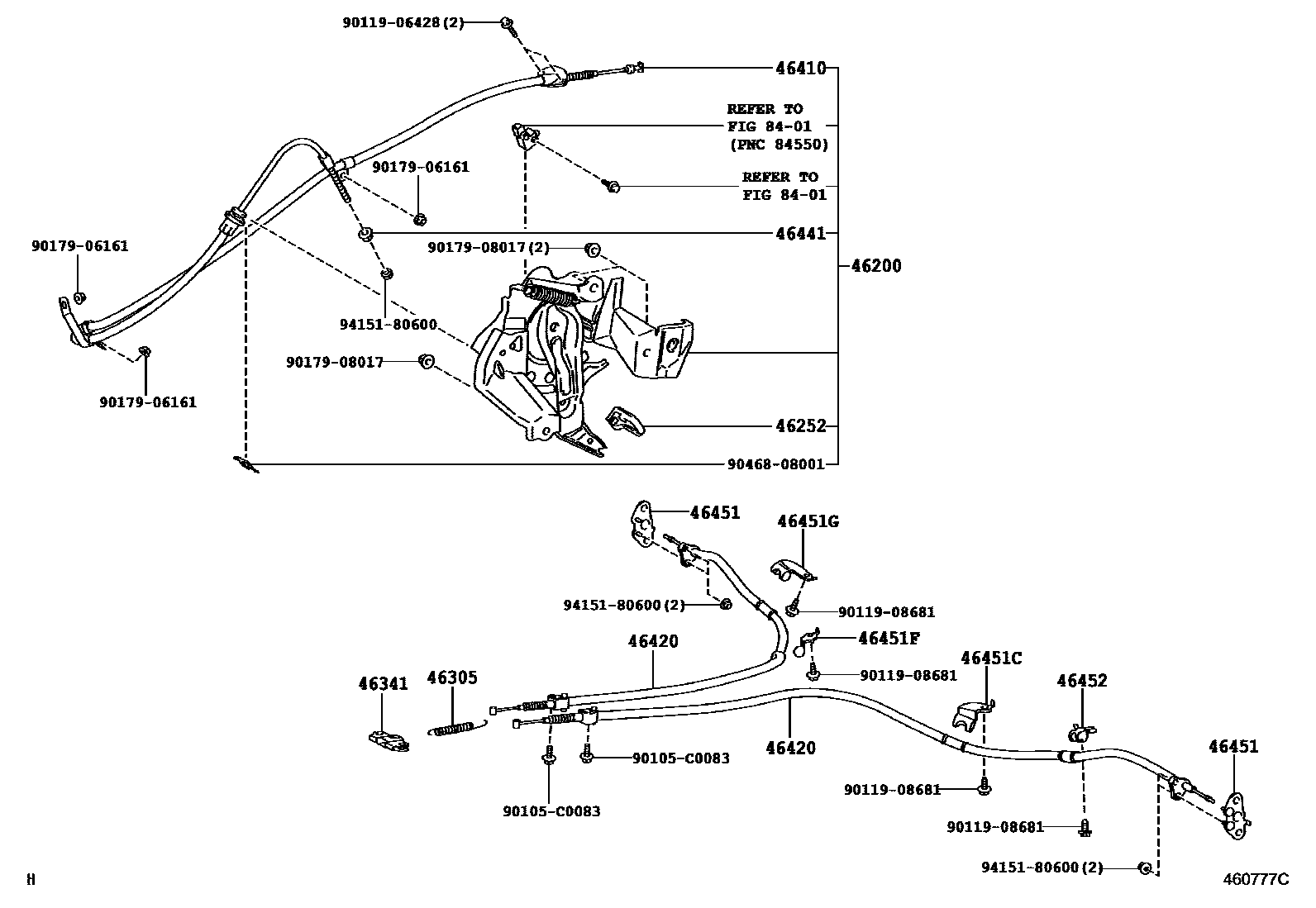

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0P010iGRX12#200510-200710

46252PAD, PARKING PEDAL

main46252-22010iGRX12#200510-200710

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-50020iGRX12#200510-200710

46341EQUALIZER, PARKING BRAKE

main46341-0P010iGRX12#200510-200710

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22300iGRX12#200510-200710

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22390×2iGRX12#200510-200710

main46420-22391×2iGRX12#201007

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGRX12#200510-200710

46451BRACKET, CABLE SUPPORT

main46451-50050×2iGRX12#200510-200710

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGRX12#200510-200710

46451FBRACKET, CABLE SUPPORT

main46451-22100iGRX12#200510-200710

46451GBRACKET, CABLE SUPPORT

main46451-30190iGRX12#200510-200710

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGRX12#200510-200710

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0083

main90105-C0083

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017908017

main90179-08017

9046808001

main90468-08001

9415180600

main94151-80600

20 parts on this diagram · 2 diagrams in section
