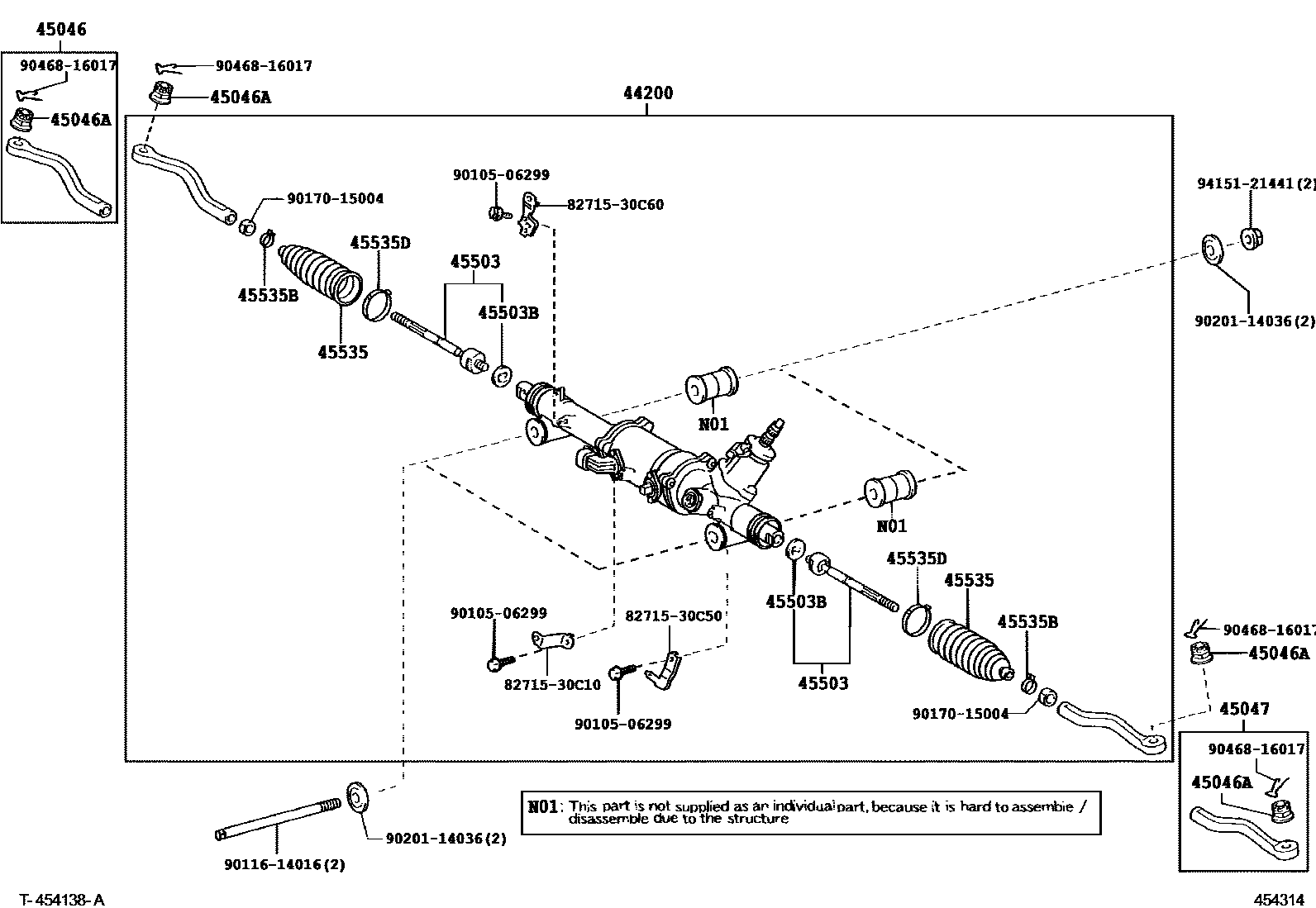

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-30320iGRX12#200510-200602

main44200-30321iGRX12#200603-200609

main44200-30322iGRX12#200610-200710

45046END SUB-ASSY, TIE ROD, RH

main45463-39015iGRX12#200510-200710

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGRX12#200510-200710

45047END SUB-ASSY, TIE ROD, LH

main45464-39015iGRX12#200510-200710

45503END SUB-ASSY, STEERING RACK

main45503-39295×2iGRX12#200510-200710

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011×2iGRX12#200510-200710

OD=40

45535BOOT, STEERING RACK, NO.1

main45535-30030×2iGRX12#200510-200710

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iGRX12#200510-200710

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016×2iGRX12#200510-200710

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C50BRACKET,WIRING HARNESS CLAMP

main82715-30C50

8271530C60BRACKET,WIRING HARNESS CLAMP

main82715-30C60

9010506299

main90105-06299

9011614016

main90116-14016

9017015004

main90170-15004

9020114036

main90201-14036

9046816017

main90468-16017

9415121441

main94151-21441

18 parts on this diagram · 1 diagram in section
