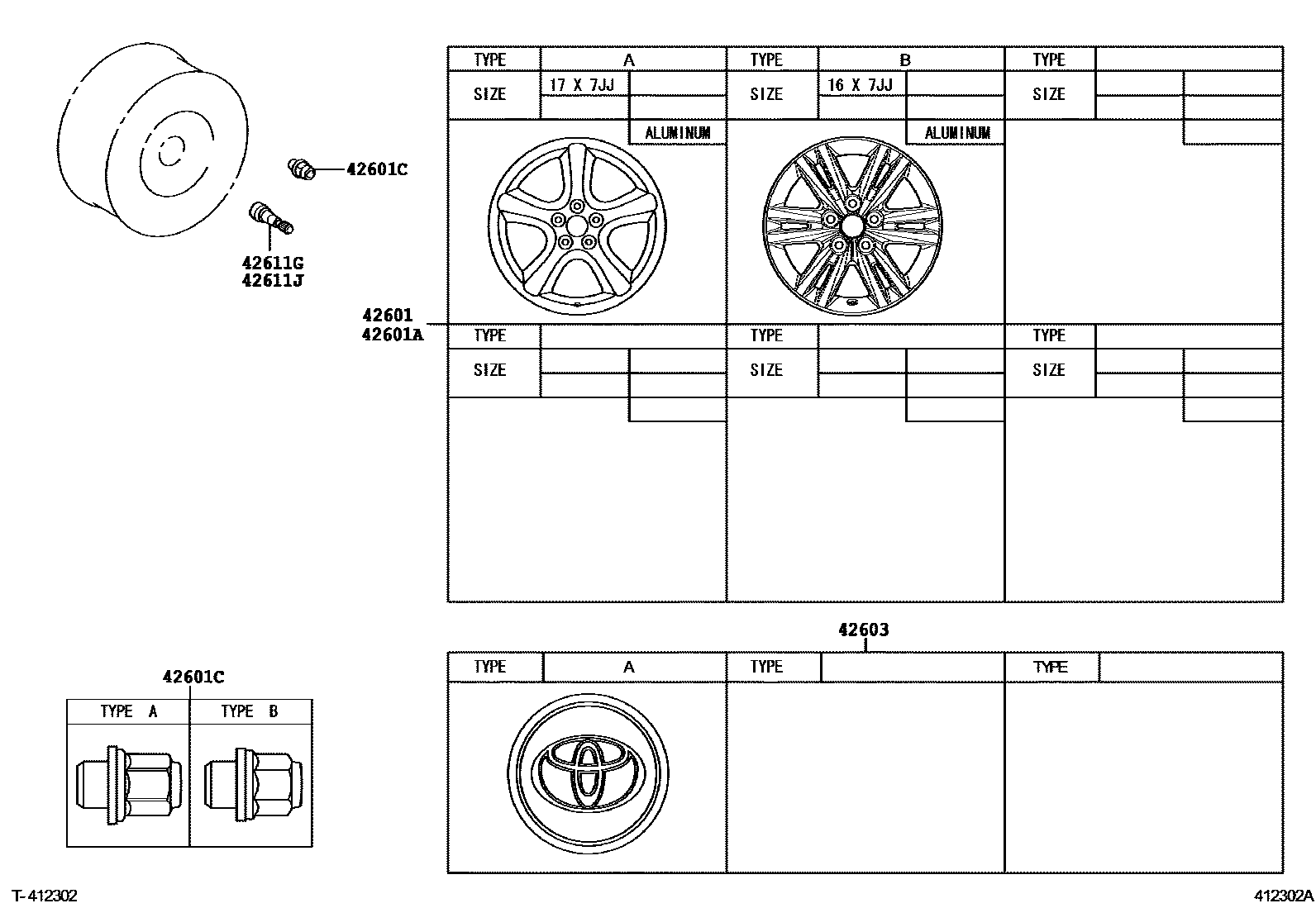

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-0P010×4iGRX121200510-200710

17X7JJ, #,TYPE A:REFER ILLUST.

main42611-0P011×4iGRX121; GRX122..25V200712

17X7JJ, #; 17X7JJ, #,SPECIAL MOON ROOF VERSION

main42611-0P020×4iGRX122200710-200711

16X7JJ, #

main42611-0P021×4iGRX122200712

16X7JJ, #

42601AWHEEL, DISC (FOR SPARE)

main42611-0P010iGRX121200510-200710

17X7JJ, #,TYPE A:REFER ILLUST.

main42611-0P011iGRX121; GRX122..25V200712

17X7JJ, #; 17X7JJ, #,SPECIAL MOON ROOF VERSION

main42611-0P020iGRX122200710-200711

16X7JJ, #

main42611-0P021iGRX122200712

16X7JJ, #

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGRX122200710-200906

TYPE B:REFER ILLUST.

main90942-01083×20iGRX121; GRX122..25V200710

SPECIAL MOON ROOF VERSION,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.

main90942-C1001×20iGRX122200906-201009

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-44070×4iGRX12#200510-200710

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iGRX12#200710

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGRX12#200710

6 parts on this diagram · 2 diagrams in section
