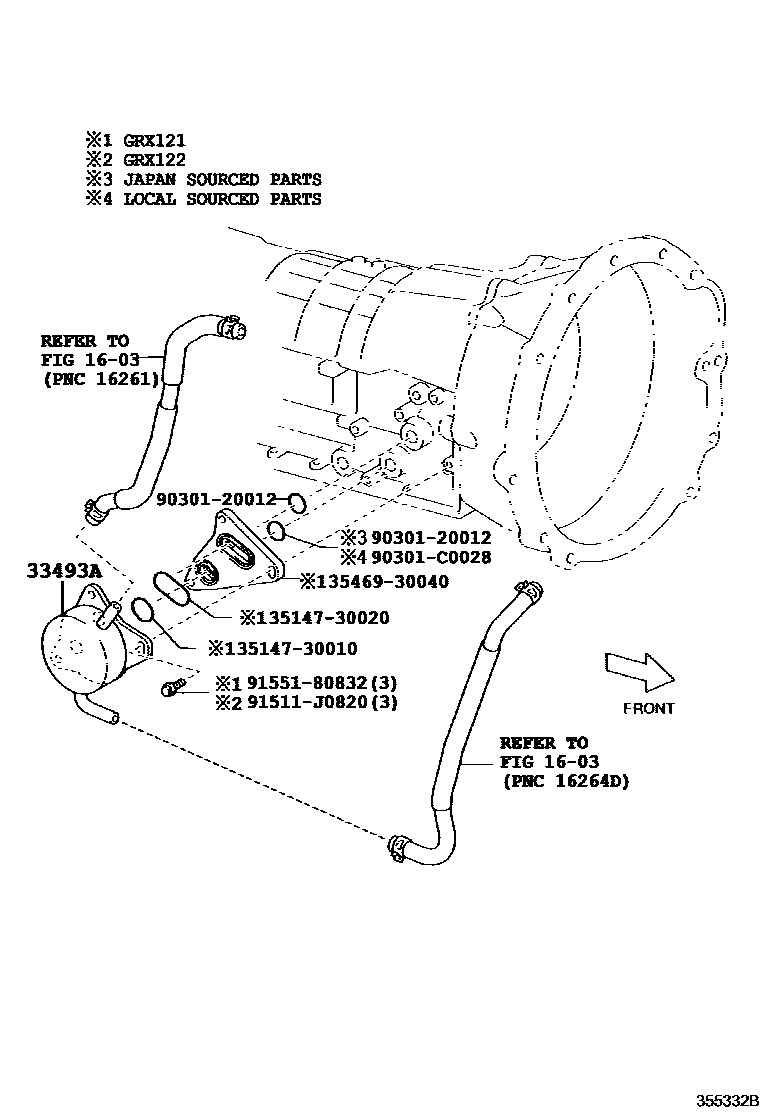

OIL COOLER & TUBE (ATM)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-22030iGRX122200510-200710

main33493-30010iGRX121200510-200710

3514730010

main35147-30010

3514730020

main35147-30020

3546930040SPACER (FOR VALVE BODY DOWN SHIFT PLUG)

main35469-30040

9030120012

main90301-20012

90301C0028

main90301-C0028

91511J0820

main91511-J0820

9155180832

main91551-80832

9 parts on this diagram · 1 diagram in section
