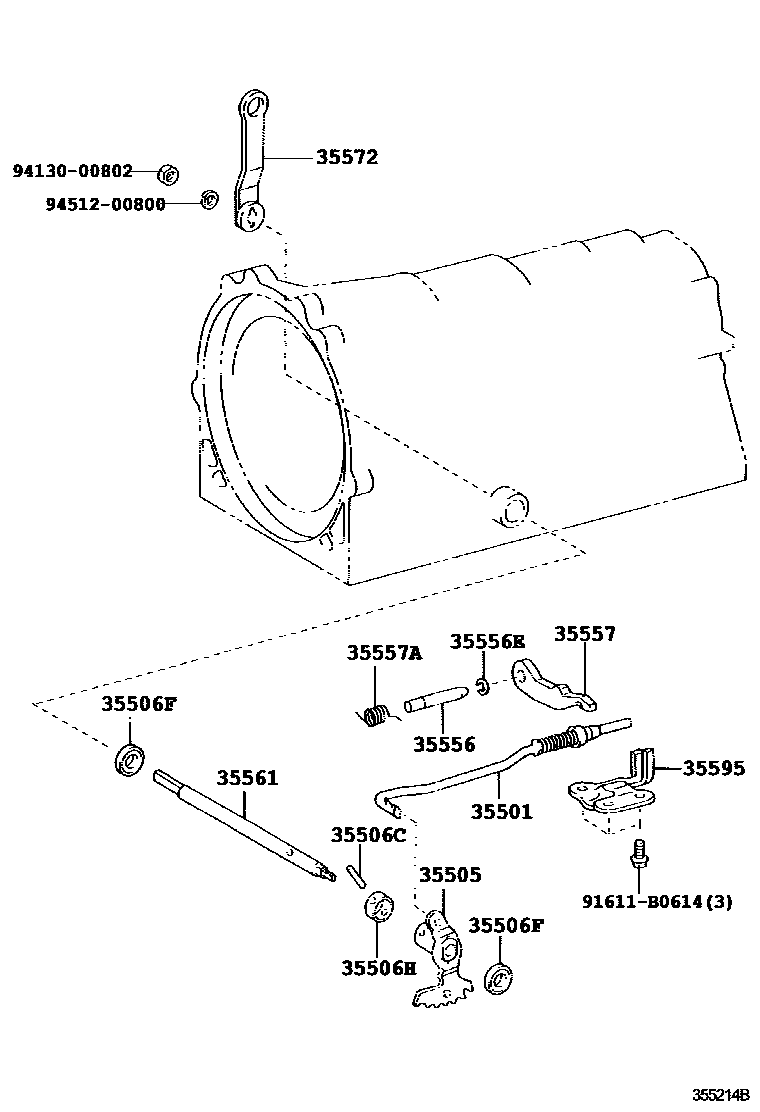

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-22030iGRX122200510-200710

main35501-50010iGRX121200510-200710

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-53030iGRX121200510-200710

main35505-53040iGRX122200710

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRX12#200710

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iGRX12#200510-200710

main90311-C0008×2iGRX122200710

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGRX12#200510-200710

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGRX12#200510-200710

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRX12#200510-200710

35557PAWL, PARKING LOCK

main35557-22020iGRX122200510-200710

main35557-22030iGRX122201005

main35590-50010iGRX121200710

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03130iGRX121200510-200710

main90949-03137iGRX122200710

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iGRX12#200710

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-0P010iGRX122200710-200712

(L)

main35572-30070iGRX121; GRX122200710

(J)

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGRX12#200510-200710

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
