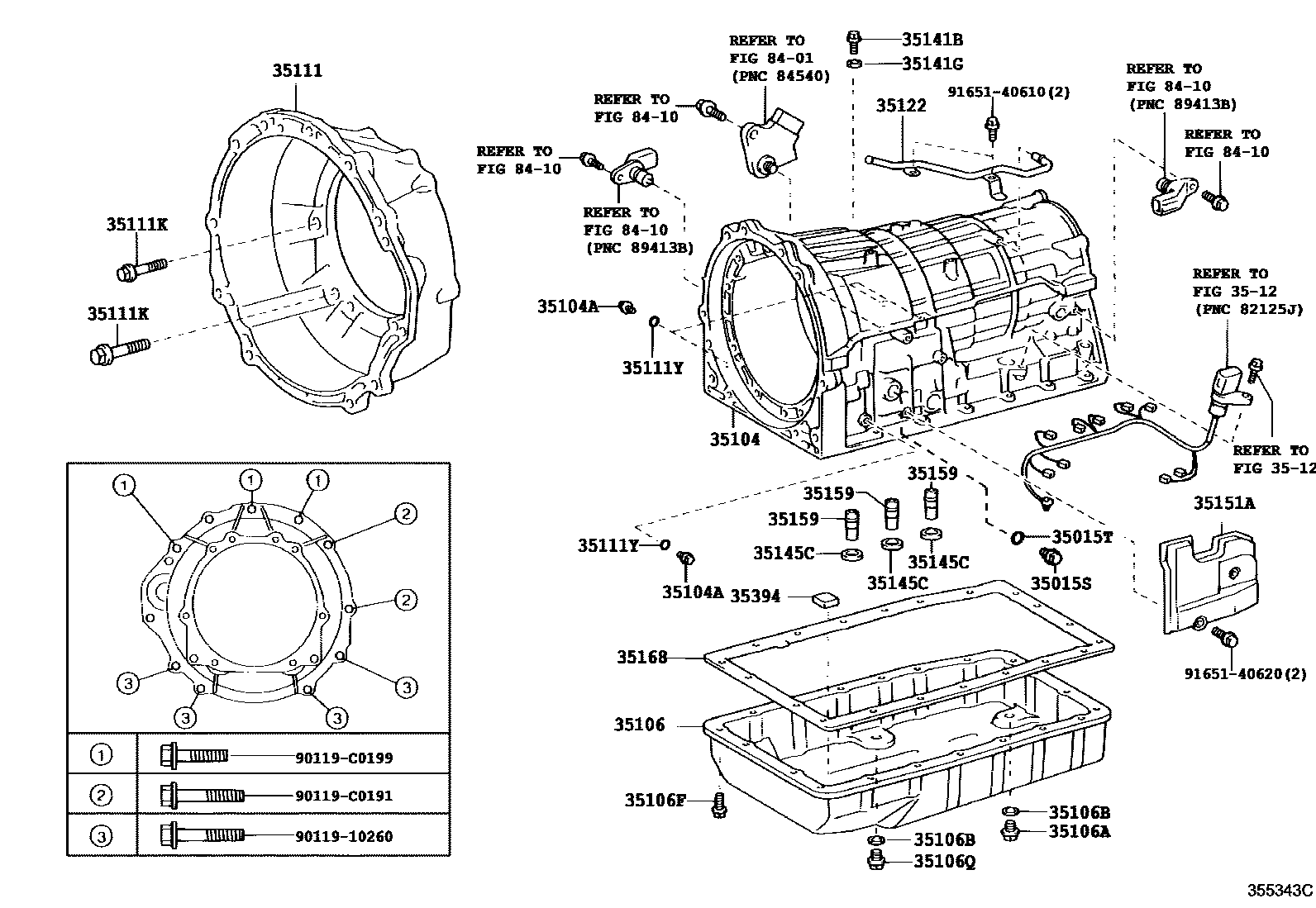

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A760E 0002 1A960E

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRX12#200510-200710

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGRX12#200510-200710

main90301-C0010iGRX122200710

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRX122200510-200710

main35104-50020iGRX121200510-200710

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRX12#200510-200710

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0P010iGRX122200710

main35106-22120iGRX122200510-200707

main35106-30270iGRX122200707-200710

main35106-50040iGRX121200510-200710

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRX12#200510-200710

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRX12#200510-200710

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×20iGRX12#200510-200610

main90119-06173×20iGRX121200710

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRX12#200710

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0N010iGRX121200710

(L)

main35111-0P010iGRX122200510-200710

(L)

main35111-22110iGRX122200510-200710

(J)

main35111-30190iGRX121200710

(J)

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRX12#200510-200710

*10-1.5PX35-30

main90119-10947×2iGRX12#200510-200710

*10-1.50PX35-29.3

main90119-12378×2iGRX12#200510-200710

*12-1.75PX38-30

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRX12#200710

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03171iGRX121200710

main90930-03181iGRX122200710

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRX12#200510-200710

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11006iGRX12#200510-200710

main90301-11030iGRX12#200710

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRX12#200710

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRX122200510-200710

main35151-30040iGRX121200510-200710

35159GASKET, BRAKE DRUM

main35159-60010×3iGRX12#200710

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRX122200710

main35168-60010iGRX121200710

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-0P010×3iGRX122200710

main35394-30011×3iGRX12#200510-200710

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910260

main90119-10260

90119C0191

main90119-C0191

90119C0199

main90119-C0199

9165140610

main91651-40610

9165140620

main91651-40620

28 parts on this diagram · 2 diagrams in section
