AIR CLEANER

17700CLEANER ASSY, AIR

main17700-0P030i3GRFE,5GRFE..GRX12#200510-200710

17705CAP SUB-ASSY, AIR CLEANER

main17705-0P030i3GRFE,5GRFE..GRX12#200510-200710

17751INLET, AIR CLEANER, NO.1

main17751-0P020i3GRFE,5GRFE..GRX12#200510-200710

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31110i3GRFE,5GRFE..GRX12#200510-200710

17881HOSE, AIR CLEANER, NO.1

main17881-0P020i3GRFE,5GRFE..GRX12#200510-200710

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850×2i3GRFE,5GRFE..GRX12#200510-200710

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i3GRFE,5GRFE..GRX12#200510-200710

17893RESONATOR, INTAKE AIR

main17893-0P020i3GRFE,5GRFE..GRX12#200510-200710

17893ACLAMP, HOSE

main96111-10330i3GRFE,5GRFE..GRX12#200510-200710

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-15010i3GRFE,5GRFE..GRX12#200510-200710

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i3GRFE,5GRFE..GRX12#200510-200710

9009900289

main90099-00289

9011906953

main90119-06953

90119C0088

main90119-C0088

90167C0002

main90167-C0002

9048017030

main90480-17030

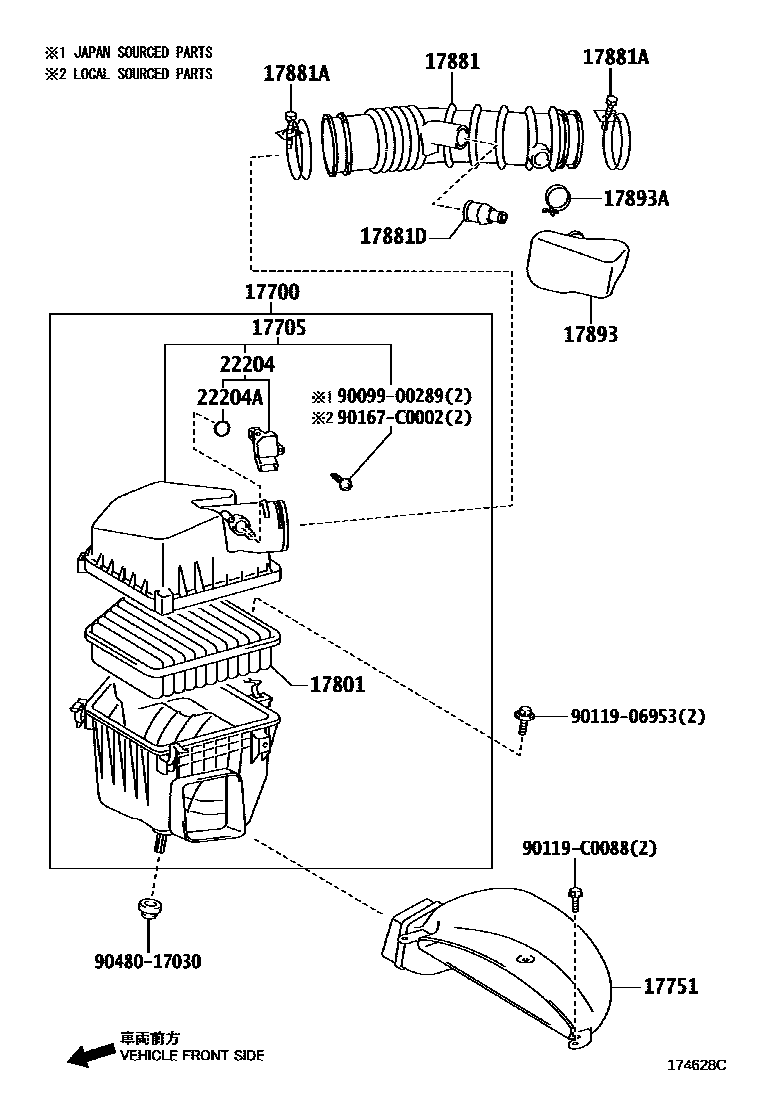

16 parts on this diagram · 1 diagram in section
