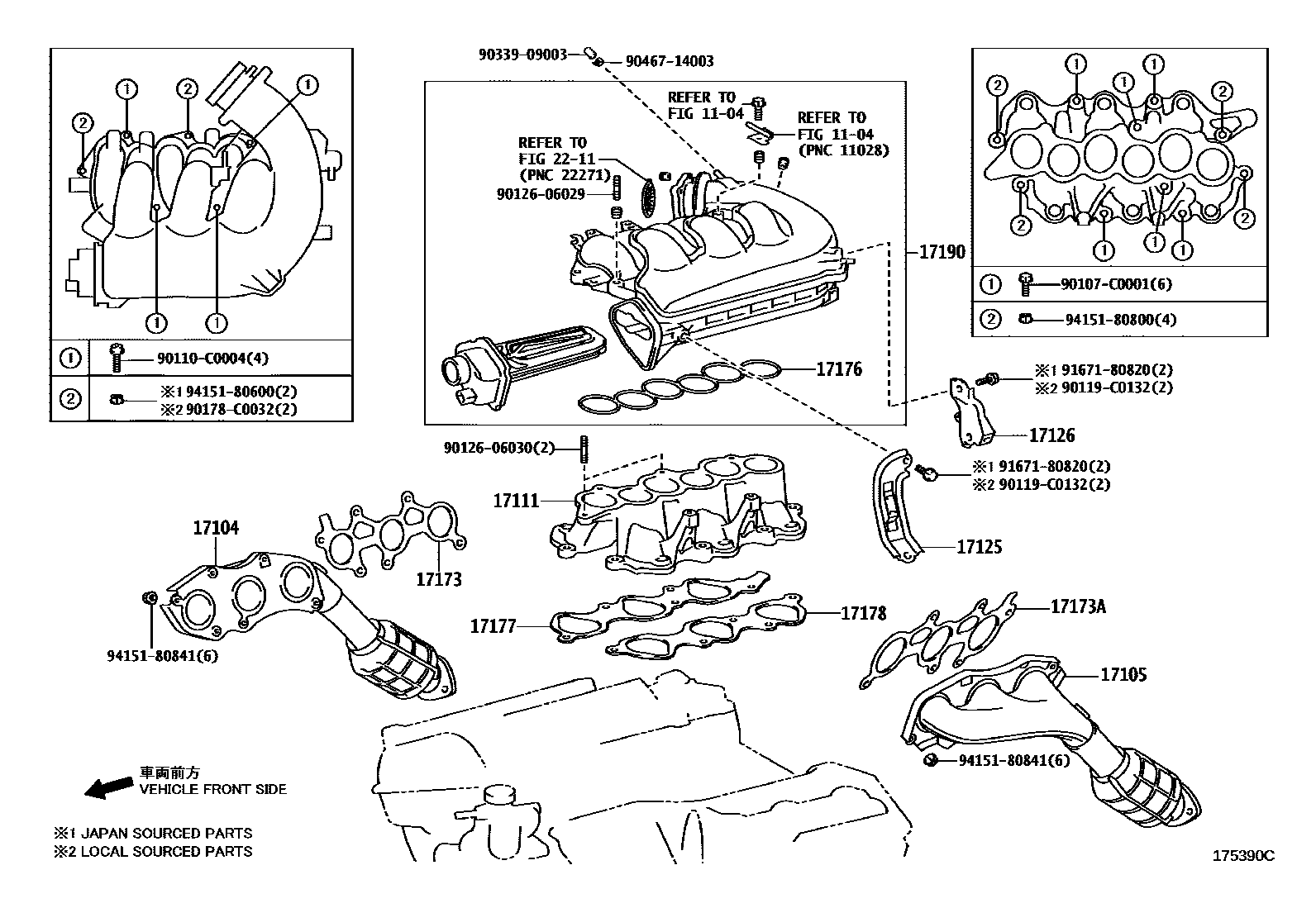

MANIFOLD
1104CYLINDER HEAD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
(L)
(J)
17125STAY, SURGE TANK, NO.1
(L)
(J)
17126STAY, SURGE TANK, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
(L)
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
(L)
(J)
17190TANK ASSY, INTAKE AIR SURGE
2211FUEL INJECTION SYSTEM
90107C0001
main90107-C0001
90110C0004
main90110-C0004
90119C0132
main90119-C0132
9012606029
main90126-06029
9012606030
main90126-06030
90178C0032
main90178-C0032
9033909003
main90339-09003
9046714003
main90467-14003
9167180820
main91671-80820
9415180600
main94151-80600
9415180800
main94151-80800
9415180841
main94151-80841
25 parts on this diagram · 1 diagram in section
