ENGINE OIL COOLER

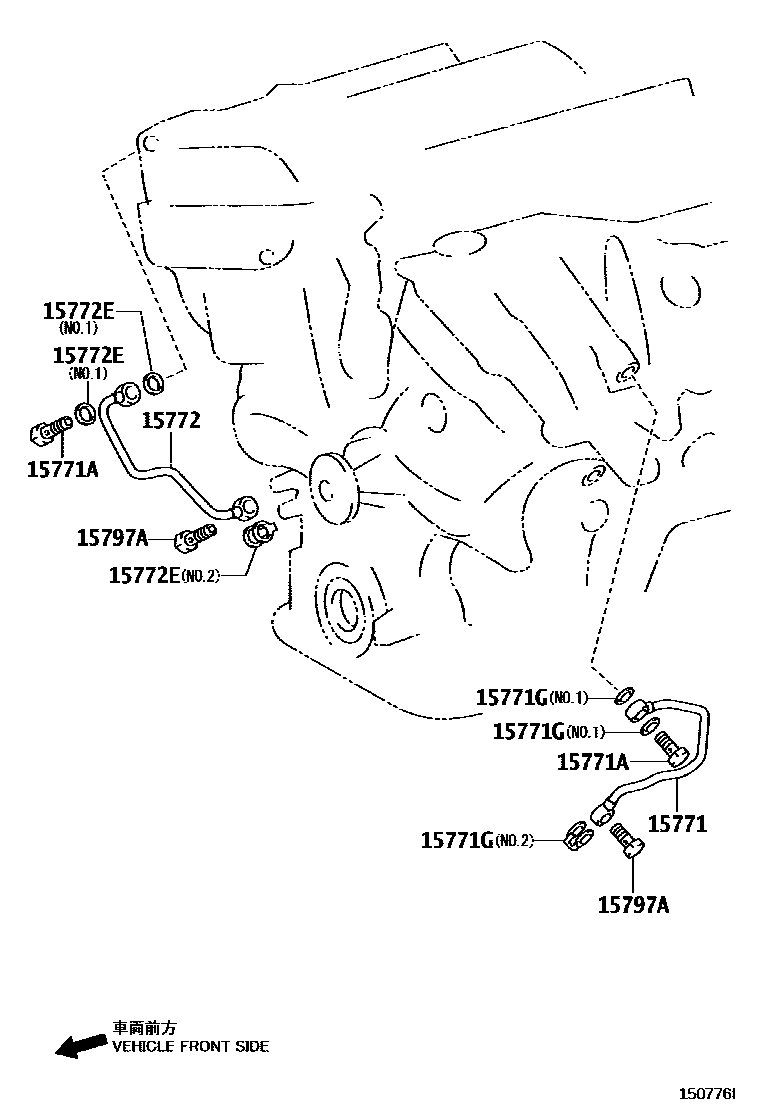

Parts diagram
15771PIPE, OIL, NO.1
main15771-0P010i200510-200710
(L)
main15771-31010i200510-200710
(J)
15771AUNION(FOR OIL PIPE)
main90401-16035×2i200510-200602
main90401-16043×2i200602-200710
15771GGASKET
main90430-16012×2i200510-200710
NO.1
main90430-16016i200710
NO.2
15772PIPE, OIL, NO.2
main15772-0P010i200710
(L)
main15772-31010i200510-200710
(J)
15772EGASKET(FOR OIL PIPE)
main90430-16012×2i200710
NO.1
main90430-16016i200510-200710
NO.2
15797ABOLT, OIL CHECK VALVE
main15797-31010×2i200510-200710

6 parts on this diagram · 1 diagram in section
