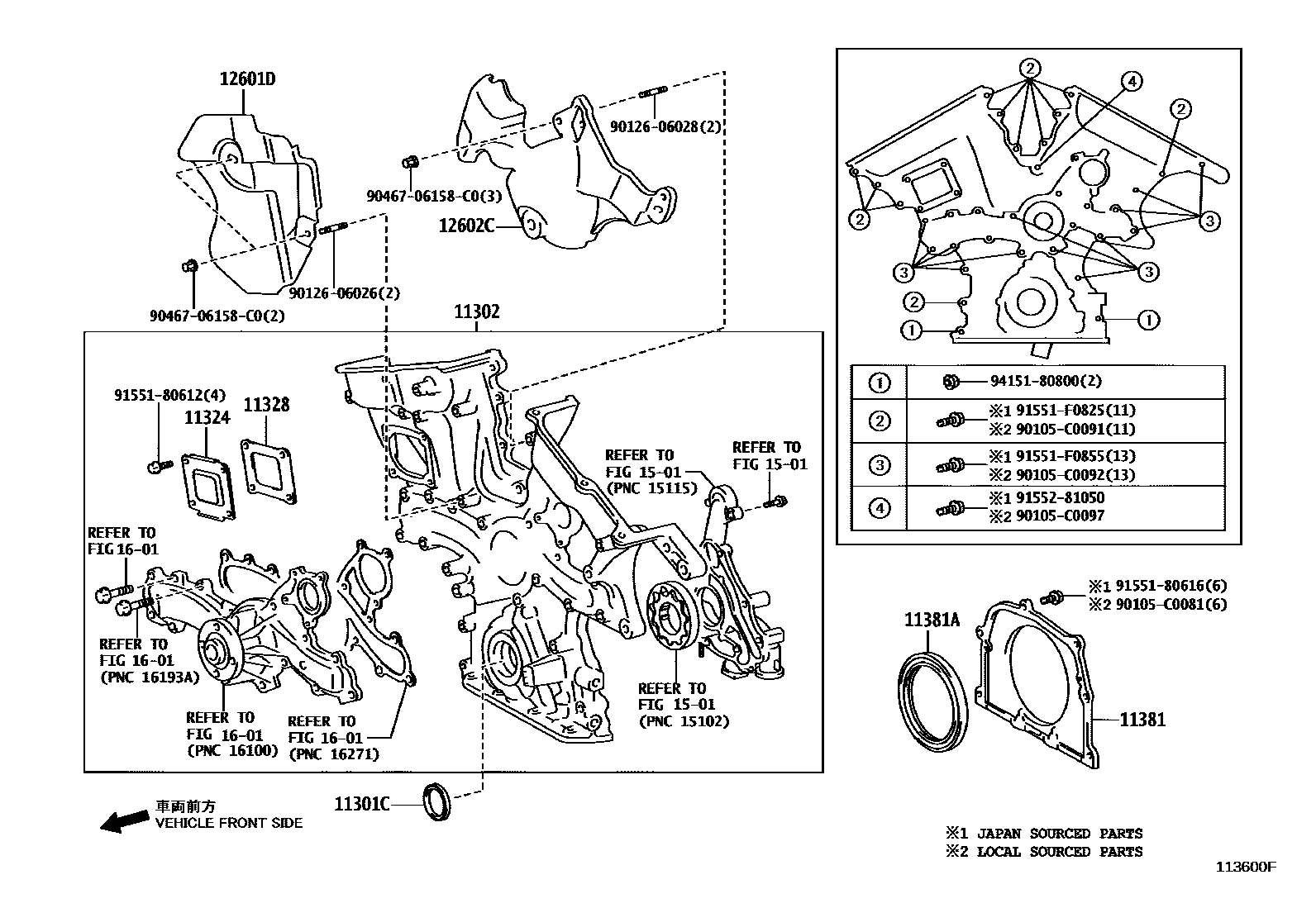

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i3GRFE,5GRFE..GRX12#200510-200710

(J)

main90311-42045i3GRFE,5GRFE..GRX12#200905

(J)

main90311-C0003i3GRFE,5GRFE..GRX12#200910

(L)

main90311-T0031i3GRFE,5GRFE..GRX12#200510-200710

(L)

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0P020i3GRFE,5GRFE..GRX12#200510-200710

11324PLATE, TIMING CHAIN COVER

main11324-31020i3GRFE,5GRFE..GRX12#200510-200710

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0P030i3GRFE,5GRFE..GRX12#200510-200710

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0P010i3GRFE,5GRFE..GRX12#200710

(L)

main11381-31021i3GRFE,5GRFE..GRX12#200710

(J)

11381ASEAL, ENGINE REAR OIL

main90311-92006i3GRFE,5GRFE..GRX12#200510-200710

(J)

main90311-92009i3GRFE,5GRFE..GRX12#200905-201005

(J)

main90311-C0004i3GRFE,5GRFE..GRX12#200910

(L)

main90311-T0030i3GRFE,5GRFE..GRX12#200710-200910

(L)

12601DCOVER, ENGINE, NO.1

main12601-31020i3GRFE,5GRFE..GRX12#200510-200710

12602CCOVER, ENGINE, NO.2

main12602-0P010i3GRFE,5GRFE..GRX12#200710

(L)

main12602-31012i3GRFE,5GRFE..GRX12#200710

(J)

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

90105C0081

main90105-C0081

90105C0091

main90105-C0091

90105C0092

main90105-C0092

90105C0097

main90105-C0097

9012606026

main90126-06026

9012606028

main90126-06028

9046706158C0

main90467-06158C0

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9155281050

main91552-81050

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
