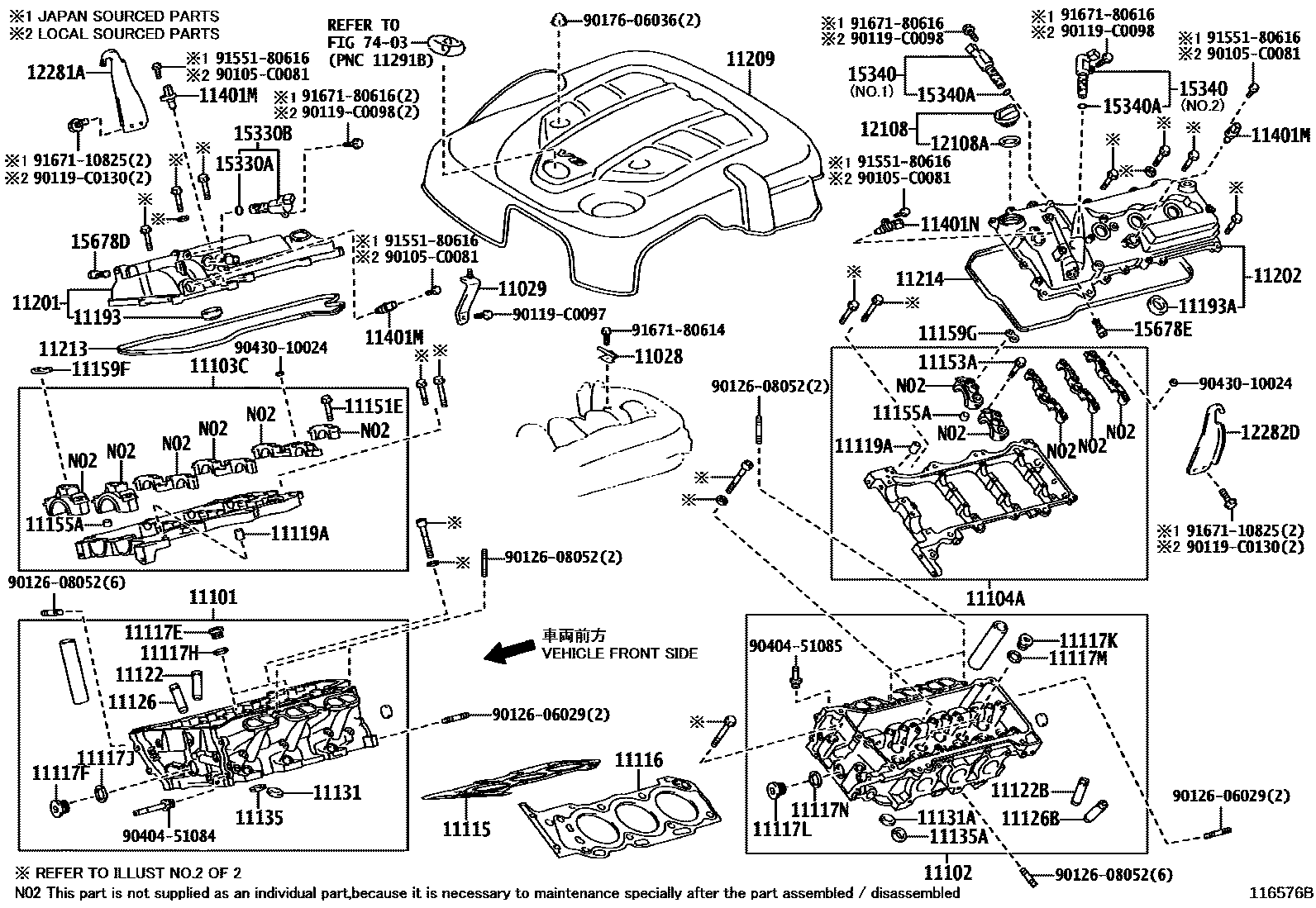

CYLINDER HEAD
11028BRACKET SUB-ASSY, V-BANK COVER, NO.2
11029BRACKET SUB-ASSY, V-BANK COVER
(L)
11101HEAD SUB-ASSY, CYLINDER
11102HEAD, CYLINDER, LH
11103CHOUSING SUB-ASSY, CAMSHAFT, RH
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11115GASKET, CYLINDER HEAD
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11119APIN, STRAIGHT, NO.1
L=13.8,OD=5.0
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD,(L)
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD,(L)
STD,(J)
O/S 0.03
11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11155APIN, RING W/HEAD
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
(L)
(J)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
(L)
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11201COVER SUB-ASSY, CYLINDER HEAD
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11209COVER SUB-ASSY, V-BANK
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
(J)
11401MSENSOR, CRANK POSITION, NO.2
11401NSENSOR, CRANK POSITION, NO.3
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(L)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
NO.1
NO.1
NO.1
NO.2
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(L)
15678DFILTER, OIL CONTROL VALVE, RH
15678EFILTER, OIL CONTROL VALVE, LH
7403CAUTION PLATE (EXTERIOR & INTERIOR)
90105C0081
main90105-C0081
90119C0097
main90119-C0097
90119C0098
main90119-C0098
90119C0130
main90119-C0130
9012606029
main90126-06029
9012608052
main90126-08052
9017606036
main90176-06036
9040451084
main90404-51084
9040451085
main90404-51085
9043010024
main90430-10024
9155180616
main91551-80616
9167110825
main91671-10825
9167180614
main91671-80614
9167180616
main91671-80616
64 parts on this diagram · 2 diagrams in section
