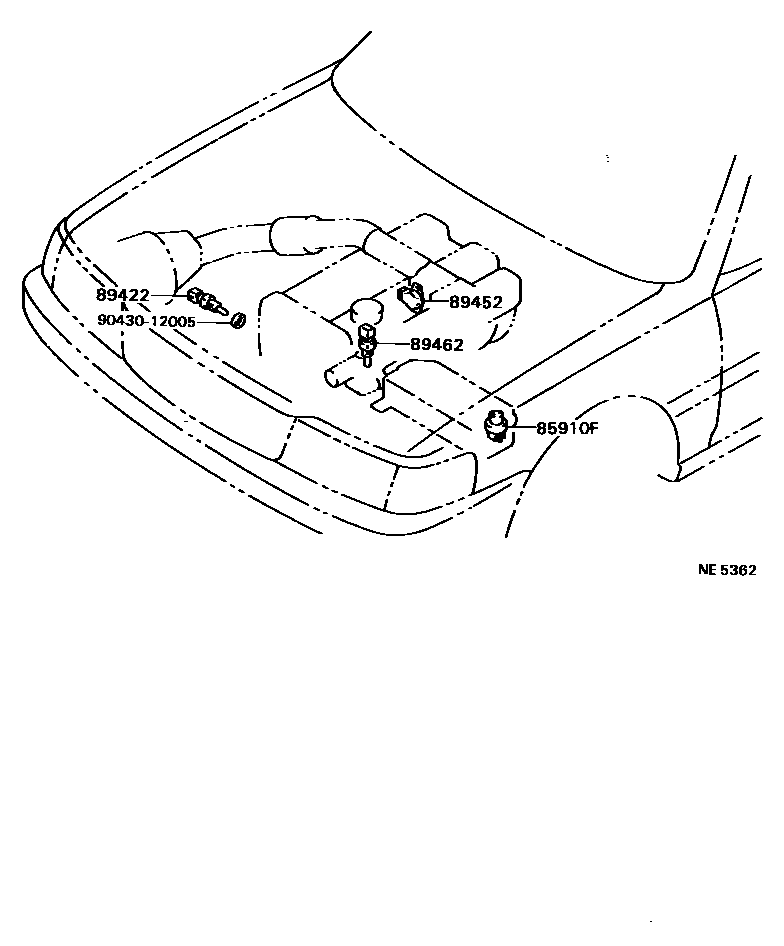

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iGX81,MX8#198808-199302

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGX81,MX8#198808-199302

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iMX83198808-199302

main89452-20030iMX81198808-199008

main89452-22010iGX81198808-199008

89462SWITCH, START INJECTOR TIME

main89462-20020iGX81,MX83198808-199006

main89462-20030iMX81198808-199006

9043012005

main90430-12005

5 parts on this diagram · 3 diagrams in section
