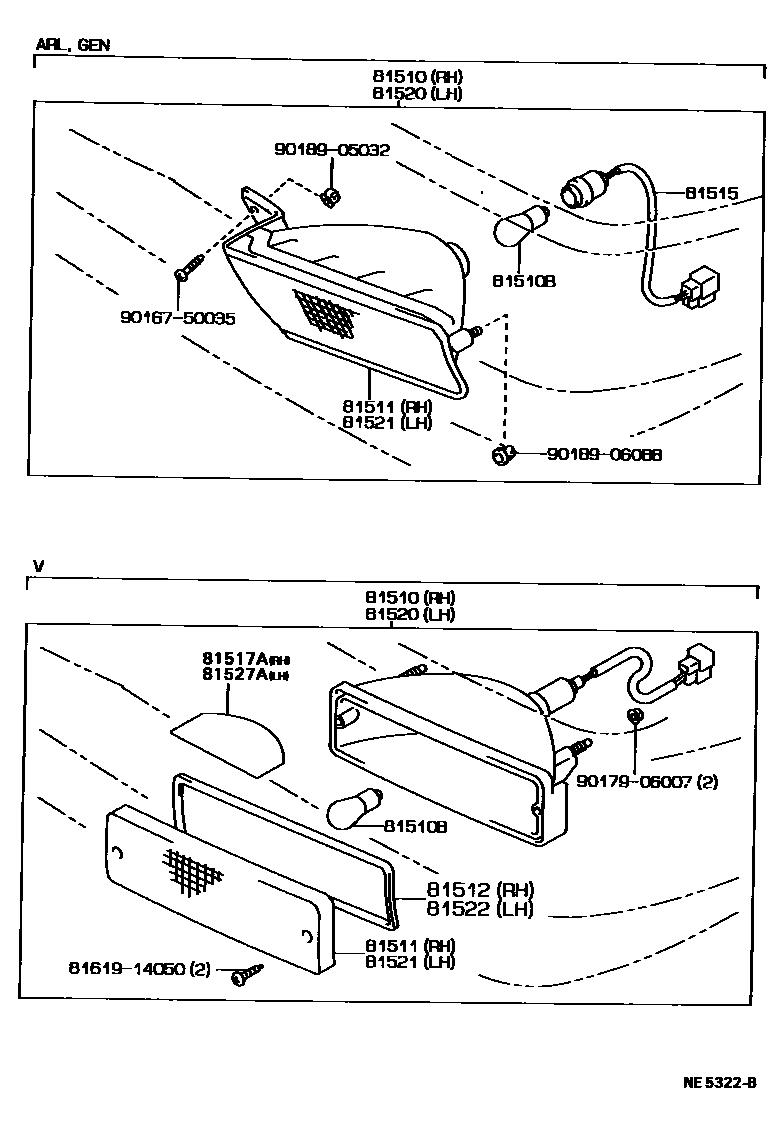

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80062iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

main81510-80065iMX81,RX8#..V198808-199608

main81510-80078iGX81,LX80,MX83,RX80199008-199302

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iGX81,LX80,MX8#,RX8#198808-199608

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iMX81,RX8#..V198808-199608

main81511-22330iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

main81511-22331iGX81,LX80,MX83,RX80199008-199302

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iMX81,RX8#..V198808-199608

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-22330×2iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

main81515-22331×2iGX81,LX80,MX83,RX80199008-199302

81517APROTECTOR, FRONT TURN SIGNAL LAMP, RH

main81517-22220iMX81,RX8#..V198808-199608

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80062iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

main81520-80065iMX81,RX8#..V198808-199608

main81520-80078iGX81,LX80,MX83,RX80199008-199302

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iMX81,RX8#..V198808-199608

main81521-22330iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

main81521-22331iGX81,LX80,MX83,RX80199008-199302

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iMX81,RX8#..V198808-199608

81527APROTECTOR, FRONT TURN SIGNAL LAMP, LH

main81517-22220iMX81,RX8#..V198808-199608

8161914050

main81619-14050

9016750035

main90167-50035

9017906007

main90179-06007

9018905032

main90189-05032

9018906088

main90189-06088

15 parts on this diagram · 2 diagrams in section
