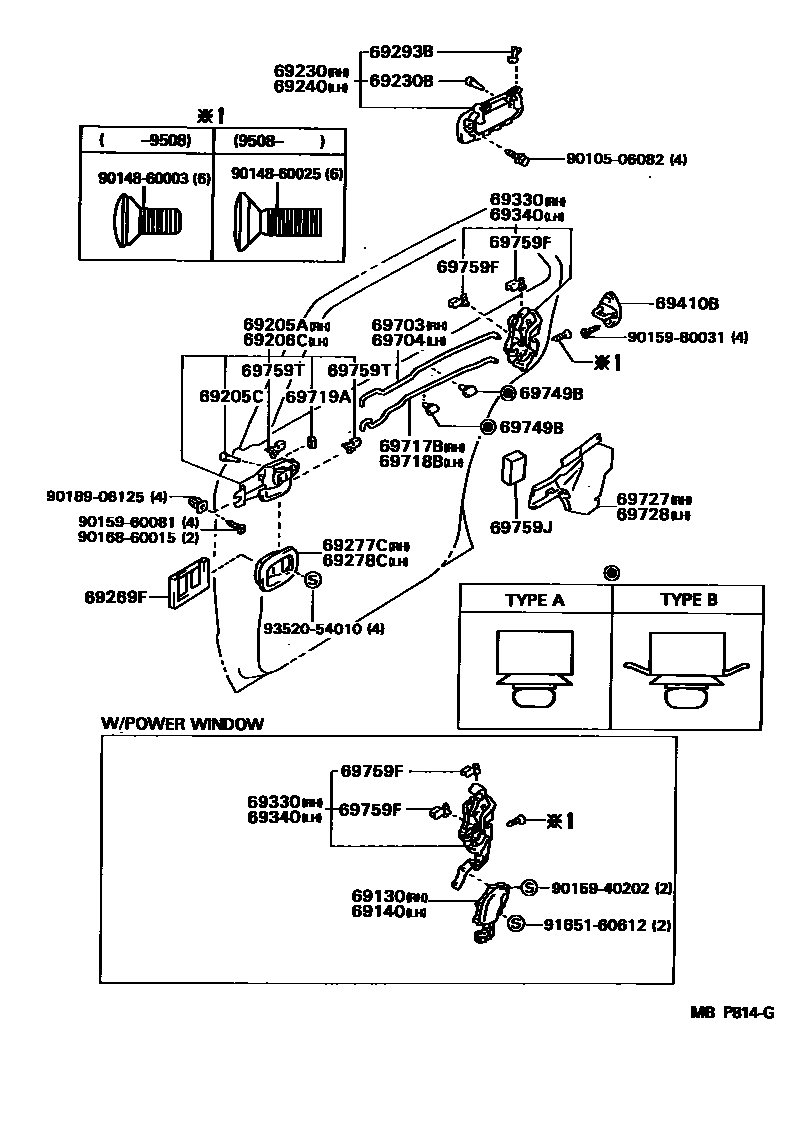

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-20090iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199608

main69130-22010iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199008

sub69130-20090

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-20090iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199608

main69140-22010iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199008

sub69140-20090

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22040-02iGX81,LX80,MX8#,RX8#198808-199008

NEW MAROON,TRIM3#

main69205-22040-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main69205-22040-06iGX81,LX80,MX8#,RX8#198808-199008

SABLE,TRIM4#

main69205-22050-02iGX81,LX80,MX8#,RX8#199008-199011

NEW MAROON,TRIM3#

sub69205-22060

main69205-22050-03iGX81,LX80,MX8#,RX8#199008-199011

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22050-06iGX81,LX80,MX8#,RX8#199008-199011

SABLE,TRIM4#

sub69205-22060

main69205-22060-02iGX81,LX80,MX8#,RX8#199011-199608

NEW MAROON,TRIM3#

sub69205-22060

main69205-22060-03iGX81,LX80,MX8#,RX8#199011-199302

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22060-06iGX81,LX80,MX8#,RX8#199011-199302

SABLE,TRIM4#

sub69205-22060

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04018iGX81,LX80,MX8#,RX8#198808-199008

main90541-04018iGX81,LX80,MX8#,RX8#198809-199608

OD=8.5

main90541-04020iGX81,LX80,MX8#,RX8#198809-199608

OD=12

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22040-02iGX81,LX80,MX8#,RX8#198808-199008

NEW MAROON,TRIM3#

main69206-22040-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main69206-22040-06iGX81,LX80,MX8#,RX8#198808-199008

SABLE,TRIM4#

main69206-22050-02iGX81,LX80,MX8#,RX8#199008-199011

NEW MAROON,TRIM3#

sub69206-22060

main69206-22050-03iGX81,LX80,MX8#,RX8#199008-199011

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22050-06iGX81,LX80,MX8#,RX8#199008-199011

SABLE,TRIM4#

sub69206-22060

main69206-22060-02iGX81,LX80,MX8#,RX8#199011-199608

NEW MAROON,TRIM3#

sub69206-22060

main69206-22060-03iGX81,LX80,MX8#,RX8#199011-199302

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22060-06iGX81,LX80,MX8#,RX8#199011-199302

SABLE,TRIM4#

sub69206-22060

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22060iGX81,LX80,MX8#,RX8#198808-199608

main69230-22070-01iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,BLACK,202

main69230-22070-03iMX83199008-199302

SUPER SILVER 3 M.,176

main69230-22070-03iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER SILVER 3 M.,176

main69230-22070-12iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,RED MICA,3H4

main69230-22070-14iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,LIGHT BLUE M. M.,8G2

main69230-22070-14iMX83199008-199302

LIGHT BLUE M. M.,8G2

main69230-22070-16iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,DK. BROWN M. M.,4L4

main69230-22070-18iMX83199008-199302

SUPER WHITE 4,050

main69230-22070-18iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER WHITE 4,050

main69230-22070-22iMX83199008-199302

MIDDLE EAST GRANDE PACKAGE,RED M.M,3J9

main69230-22070-22iMX81..GD199008-199302

RED M.M,3J9

main69230-22070-23iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,GRAY M. M.,170

main69230-22070-24iMX83199008-199302

MIDDLE EAST GRANDE PACKAGE,BLUE M,869

main69230-22070-24iMX81..GD199008-199302

BLUE M,869

main69230-22070-26iMX81..GD199008-199302

BEIGE M.M,4J1

main69230-22070-26iMX83199008-199302

MIDDLE EAST GRANDE PACKAGE,BEIGE M.M,4J1

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iGX81,LX80,MX8#,RX8#198808-199608

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22060iGX81,LX80,MX8#,RX8#198808-199608

main69240-22070-01iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,BLACK,202

main69240-22070-03iMX83199008-199302

SUPER SILVER 3 M.,176

main69240-22070-03iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER SILVER 3 M.,176

main69240-22070-12iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,RED MICA,3H4

main69240-22070-14iMX83199008-199302

LIGHT BLUE M. M.,8G2

main69240-22070-14iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,LIGHT BLUE M. M.,8G2

main69240-22070-16iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,DK. BROWN M. M.,4L4

main69240-22070-18iMX83199008-199302

SUPER WHITE 4,050

main69240-22070-18iMX81..GD198908-199302

MIDDLE EAST GRANDE PACKAGE,SUPER WHITE 4,050

main69240-22070-22iMX83199008-199302

MIDDLE EAST GRANDE PACKAGE,RED M.M,3J9

main69240-22070-22iMX81..GD199008-199302

RED M.M,3J9

main69240-22070-23iMX81..GD198908-199008

MIDDLE EAST GRANDE PACKAGE,GRAY M. M.,170

main69240-22070-24iMX83199008-199302

MIDDLE EAST GRANDE PACKAGE,BLUE M,869

main69240-22070-24iMX81..GD199008-199302

BLUE M,869

main69240-22070-26iMX81..GD199008-199302

MIDDLE EAST GRANDE PACKAGE,BEIGE M.M,4J1

main69240-22070-26iMX83199008-199302

BEIGE M.M,4J1

69269FSEAL, REAR DOOR INSIDE HANDLE

main69269-22050iGX81,LX80,MX8#,RX8#198906-199608

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-22020-02iLX80;MX81,RX8#..XL198808-199008

NEW MAROON,TRIM3#

sub69297-22020

main69297-22020-04iLX80;MX81,RX8#..XL198808-199008

DARK BLUE,TRIM8#

sub69297-22020

main69297-22020-06iLX80;MX81,RX8#..XL198808-199008

SABLE,TRIM4#

sub69297-22020

main69297-22030-02iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

NEW MAROON,TRIM3#

main69297-22030-02iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

W(*PW),NEW MAROON,TRIM3#

main69297-22030-04iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

DARK BLUE,TRIM8#

main69297-22030-04iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

W(*PW),DARK BLUE,TRIM8#

main69297-22030-06iLX80198808-199008

W(*PW),SABLE,TRIM4#

main69297-22030-06iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

SABLE,TRIM4#

main69297-22040-02iLX80;MX81,RX8#..XL199008-199608

NEW MAROON,TRIM3#

main69297-22040-03iLX80;MX81,RX8#..XL199008-199302

MEDIUM GRAY,TRIM1#

main69297-22040-06iLX80;MX81,RX8#..XL199008-199302

SABLE,TRIM4#

main69297-22050-02iLX80199008-199302

W(*PW),NEW MAROON,TRIM3#

sub69297-22050

main69297-22050-02iGX81,MX8#,RX8#..GD,GL,GLX199008-199608

NEW MAROON,TRIM3#

sub69297-22050

main69297-22050-03iLX80199008-199302

MEDIUM GRAY,TRIM1#

sub69297-22050

main69297-22050-03iLX80199008-199302

W(*PW),MEDIUM GRAY,TRIM1#

sub69297-22050

main69297-22050-06iGX81,MX8#,RX8#..GD,GL,GLX199008-199302

W(*PW),SABLE,TRIM4#

sub69297-22050

main69297-22050-06iGX81,MX8#,RX8#..GD,GL,GLX199008-199302

SABLE,TRIM4#

sub69297-22050

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-22020-02iLX80;MX81,RX8#..XL198808-199008

NEW MAROON,TRIM3#

sub69298-22020

main69298-22020-04iLX80;MX81,RX8#..XL198808-199008

DARK BLUE,TRIM8#

sub69298-22020

main69298-22020-06iLX80;MX81,RX8#..XL198808-199008

SABLE,TRIM4#

sub69298-22020

main69298-22030-02iLX80198808-199008

NEW MAROON,TRIM3#

main69298-22030-02iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

W(*PW),NEW MAROON,TRIM3#

main69298-22030-04iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

W(*PW),DARK BLUE,TRIM8#

main69298-22030-04iLX80198808-199008

DARK BLUE,TRIM8#

main69298-22030-06iLX80198808-199008

SABLE,TRIM4#

main69298-22030-06iGX81,MX8#,RX8#..GD,GL,GLX198808-199008

W(*PW),SABLE,TRIM4#

main69298-22040-02iLX80;MX81,RX8#..XL199008-199608

NEW MAROON,TRIM3#

main69298-22040-03iLX80;MX81,RX8#..XL199008-199302

MEDIUM GRAY,TRIM1#

main69298-22040-06iLX80;MX81,RX8#..XL199008-199302

SABLE,TRIM4#

main69298-22050-02iLX80199008-199302

W(*PW),NEW MAROON,TRIM3#

sub69298-22050

main69298-22050-02iGX81,MX8#,RX8#..GD,GL,GLX199008-199608

NEW MAROON,TRIM3#

sub69298-22050

main69298-22050-03iLX80199008-199302

MEDIUM GRAY,TRIM1#

sub69298-22050

main69298-22050-03iLX80199008-199302

W(*PW),MEDIUM GRAY,TRIM1#

sub69298-22050

main69298-22050-06iGX81,MX8#,RX8#..GD,GL,GLX199008-199302

SABLE,TRIM4#

sub69298-22050

main69298-22050-06iGX81,MX8#,RX8#..GD,GL,GLX199008-199302

W(*PW),SABLE,TRIM4#

sub69298-22050

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iGX81,LX80,MX8#,RX8#198808-199608

RH

main69293-12060iGX81,LX80,MX8#,RX8#198808-199608

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-22240iMX81,RX8#..XL..V198808-199008

main69330-22241iMX81,RX81..XL199008-199608

main69330-22250iLX80;RX80..XL..GEN198808-199008

main69330-22251iLX80;RX80..XL199008-199302

main69330-22290iMX83198808-199008

main69330-22291iMX8#,RX81..GD,GL,GLX199008-199608

main69330-22300iMX81,RX8#..(GD,GL)..V198808-199008

main69330-22310iGX81,MX81,RX8#..(GL,GLX)..GEN198808-199008

W(*PW)

main69330-22311iLX80199008-199302

W(*PW)

69340LOCK ASSY, REAR DOOR, LH

main69340-22250iMX81,RX8#..XL..V198808-199008

main69340-22251iMX81,RX81..XL199008-199608

main69340-22260iLX80;RX80..XL..GEN198808-199008

main69340-22261iLX80;RX80..XL199008-199302

main69340-22300iMX83198808-199008

main69340-22301iMX8#,RX81..GD,GL,GLX199008-199608

main69340-22310iMX81,RX8#..(GD,GL)..V198808-199008

main69340-22320iLX80198808-199008

W(*PW)

main69340-22321iGX81,RX80..GL,GLX199008-199302

W(*PW)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iGX81,LX80,MX8#,RX8#198808-199302

main69410-87001iRX81199302-199608

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69737-22080iGX81,LX80,MX81,RX8#..GEN198808-199008

main69737-22100iGX81,LX80,RX80199008-199302

main69770-22060iMX8#,RX8#..ARL,V198808-199008

main69770-22070iMX8#,RX81199008-199608

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69738-22070iGX81,LX80,MX81,RX8#..GEN198808-199008

main69738-22090iGX81,LX80,RX80199008-199302

main69780-22060iMX8#,RX8#..ARL,V198808-199008

main69780-22070iMX8#,RX81199008-199608

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-22070iGX81,LX80,MX8#,RX8#198808-199008

main69713-22080iGX81,LX80,MX8#,RX8#199008-199608

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-22070iGX81,LX80,MX8#,RX8#198808-199008

main69714-22080iGX81,LX80,MX8#,RX8#199008-199608

69719ACUSHION, DOOR LOCK CONTROL

main69719-22010iGX81,LX80,MX8#,RX8#198808-199008

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-22020iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-22020iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20030iGX81,LX80,MX8#,RX8#198808-199008

main69749-20030iGX81,LX80,MX8#,RX8#199008-199608

TYPE A

main69749-50010iGX81,LX80,MX8#,RX8#199008-199608

TYPE B

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050iGX81,LX80,MX8#,RX8#198808-199608

GREEN

main69759-24060iGX81,LX80,MX8#,RX8#198808-199608

GRAY

69759JSILENCER, DOOR LOCK LINK

main69759-30021iGX81,LX80,MX81,RX8#..GEN198808-199302

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iGX81,LX80,MX8#,RX8#198808-199608

LH

main69759-24070iGX81,LX80,MX8#,RX8#198808-199608

RH

9010506082

main90105-06082

9014860003

main90148-60003

9014860025

main90148-60025

9015940202

main90159-40202

9015960081

main90159-60081

9015980031

main90159-80031

9016860015

main90168-60015

9018906125

main90189-06125

9165160612

main91651-60612

9352054010

main93520-54010

36 parts on this diagram · 1 diagram in section
