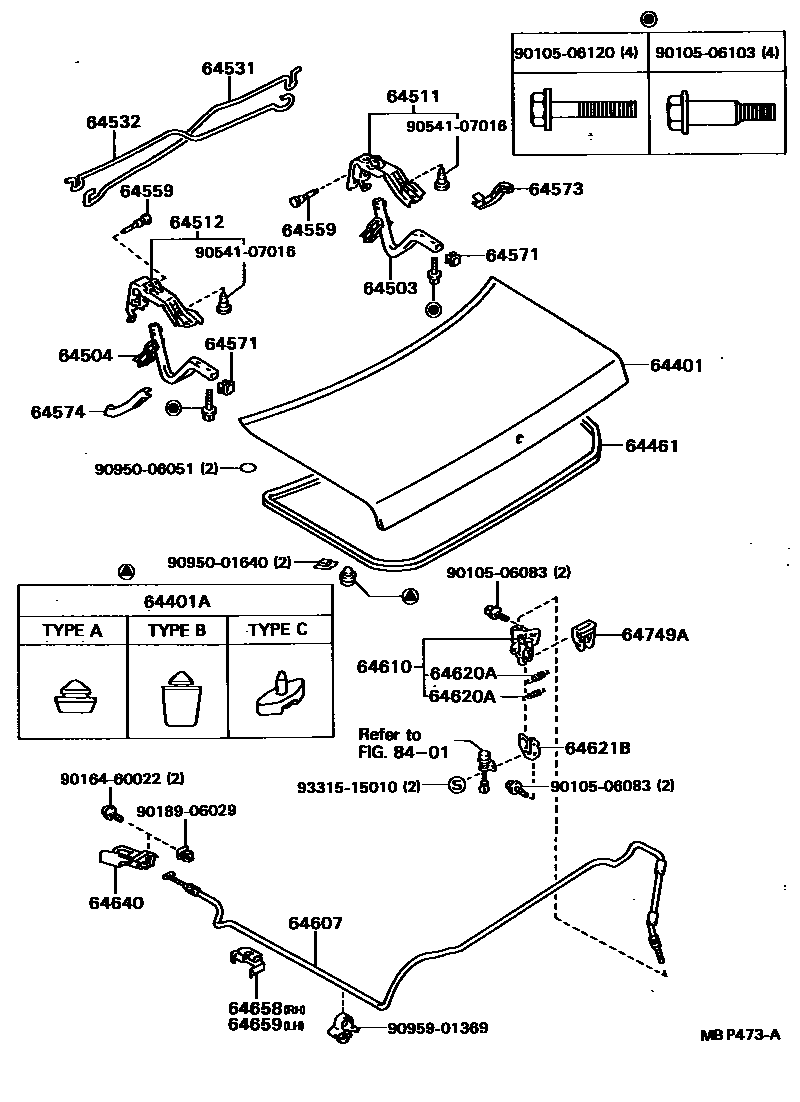

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22510iGX81,MX83,RX80..RHD198808-199302

main64401-22540iGX81..RHD198808-199302

W(REAR AIR SPOILER)

main64401-22550iGX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL)199008-199608

main64401-22560iMX81..GD198908-199008

W(REAR AIR SPOILER)

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06041×2iGX81,LX80,MX8#,RX8#198808-199311

TYPE A

main90541-06059×2iRX81199311-199608

TYPE A

main90541-07034×2iMX81..GD198908-199008

W(REAR AIR SPOILER),TYPE C

main90541-09029×2iGX81,LX80,MX8#,RX8#198808-199608

TYPE B

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22200iGX81,LX80,MX8#,RX8#198808-199608

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-22060iMX81..GD199008-199302

W(REAR AIR SPOILER)

main64503-22120iGX81; MX81..GD; MX81..GL199008-199302

MIDDLE EAST SPORTS PACKAGE; W(REAR AIR SPOILER)

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-22060×3iGX81,LX80,MX8#,RX8#198808-199008

main64503-22120iGX81,MX81..GL,GLX; MX81..GD198908-199008

W(REAR AIR SPOILER)

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-22110iGX81,LX80,MX8#,RX8#198808-199608

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-22110iGX81,LX80,MX8#,RX8#198808-199608

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22220iMX81..GD199008-199302

W(REAR AIR SPOILER)

main64531-22230iGX81; MX81..GD; MX81..GL199008-199302

W(REAR AIR SPOILER)

main64531-22260iMX83..GLX198808-199302

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22220iGX81,LX80,MX81,RX8#..GL,GLX,XL199008-199608

main64532-22230iGX81,MX81..GL,GLX; MX81..GD198908-199008

W(REAR AIR SPOILER)

main64532-22260iMX83..GLX198808-199302

64559PIN, LUGGAGE DOOR HINGE

main64559-22020×2iGX81,LX80,MX8#,RX8#198808-199608

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-22020×2iGX81; MX81..GD; MX81..GL199008-199302

W(REAR AIR SPOILER)

main64571-30020×2iMX83..GL;GX81,LX80,MX81,RX8#198808-199008

64573PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH

main64573-22010iGX81,MX83,RX80..RHD198808-199302

64574PROTECTOR, LUGGAGE DOOR OPENER CABLE, LH

main64574-22010iGX81,LX80,MX81,RX8#..LHD198808-199608

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22330iGX81,LX80,MX81,RX8#..LHD198808-198809

main64607-22350iGX81,MX83,RX80..RHD198808-198809

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22110iGX81,LX80,MX8#,RX8#198808-199608

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iGX81,LX80,MX8#,RX8#198808-198809

YELLOW

main90506-05002iGX81,LX80,MX8#,RX8#198808-199608

WHITE

main90506-06009iGX81,LX80,MX8#,RX8#198809-199608

GREEN

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-22040iGX81,LX80,MX8#,RX8#198808-199608

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-22210-02iGX81,MX83,RX80..RHD198808-199302

NEW MAROON,TRIM3#

main64640-22210-03iGX81,MX83,RX80..RHD199008-199302

MEDIUM GRAY,TRIM1#

main64640-22210-04iGX81,MX83,RX80..RHD198808-199008

DARK BLUE,TRIM8#

main64640-22210-06iGX81,MX83,RX80..RHD198808-199302

SABLE,TRIM4#

main64640-22220-02iGX81,LX80,MX81,RX8#..LHD198808-199608

NEW MAROON,TRIM3#

main64640-22220-03iGX81,LX80,MX81,RX8#..LHD199008-199302

MEDIUM GRAY,TRIM1#

main64640-22220-04iGX81,LX80,MX81,RX8#..LHD198808-199008

DARK BLUE,TRIM8#

main64640-22220-06iGX81,LX80,MX81,RX8#..LHD198808-199302

SABLE,TRIM4#

64658BRACKET, LUGGAGE CONTROL CABLE, RH

main64658-22010iGX81,MX83,RX80..RHD198808-199302

64659BRACKET, LUGGAGE CONTROL CABLE, LH

main64659-22010iGX81,LX80,MX81,RX8#..LHD198808-199608

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-22040iMX81,RX80..XL198808-198812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506083

main90105-06083

9010506103

main90105-06103

9010506120

main90105-06120

9016460022

main90164-60022

9018906029

main90189-06029

9054107016

main90541-07016

9095001640

main90950-01640

9095006051

main90950-06051

9095901369

main90959-01369

9331515010

main93315-15010

32 parts on this diagram · 1 diagram in section
