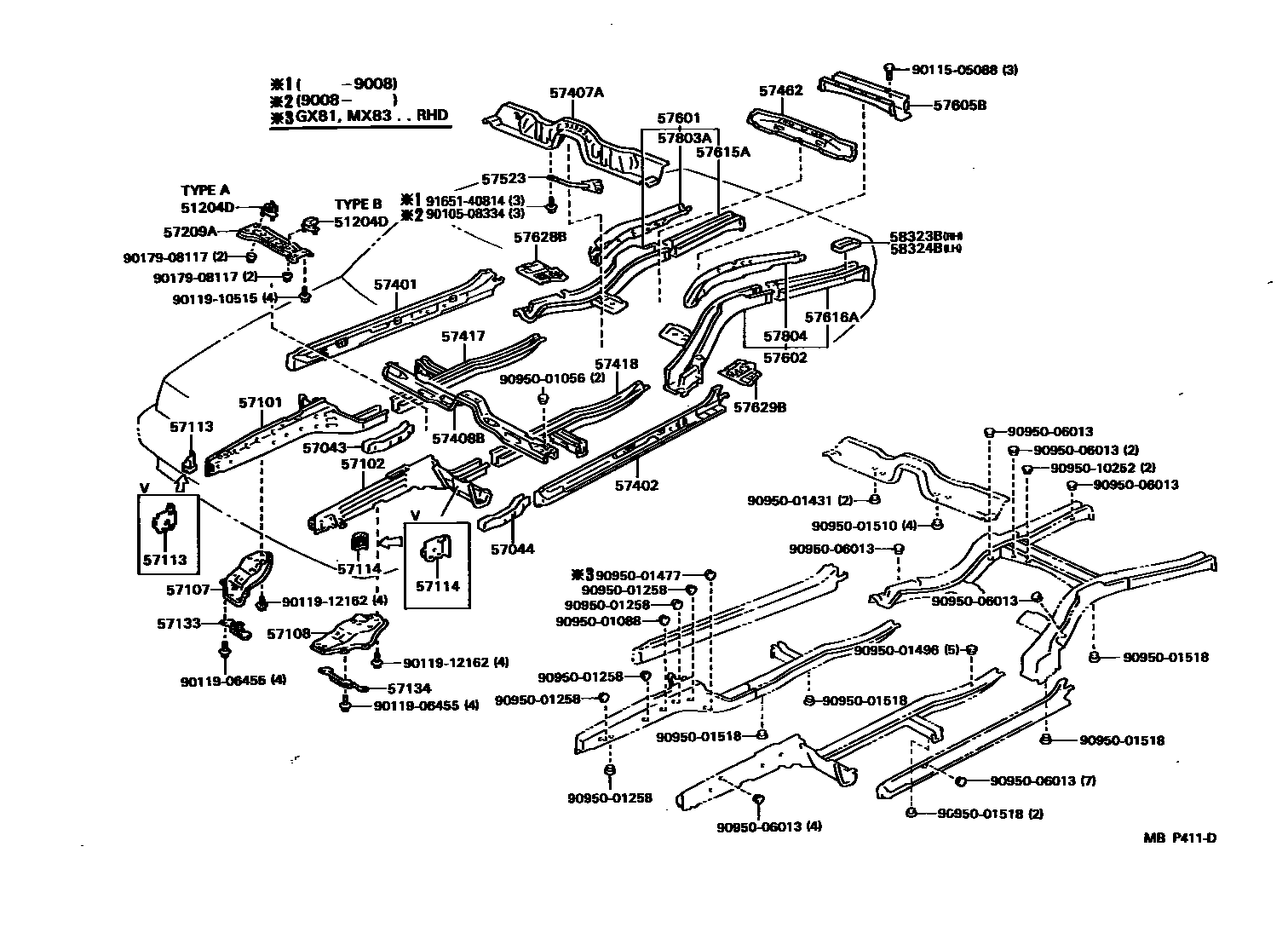

FLOOR SIDE MEMBER

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22100iGX81,MX8#..4FC198808-199608

TYPE A

main51204-22120iGX81,MX8#..4FC198808-199302

TYPE B

main51204-22130iGX81,MX81..5F198808-199302

main51204-22140iLX80198808-199302

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-22040iMX81,RX8#..V198808-199509

main57043-22041iRX81199509-199608

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-22020iMX81,RX8#..V198808-199608

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22300iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main57101-22900iMX81,RX8#..V198808-199608

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22340iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main57102-22900iMX81,RX8#..V198808-199608

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22080iGX81,LX80,MX8#,RX8#198808-199008

main57107-22091iGX81,LX80,MX8#,RX8#199008-199608

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22110iGX81,LX80,MX8#,RX8#198808-199008

main57108-22151iGX81,LX80,MX8#,RX8#199008-199608

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22060iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main57113-22070iMX81,RX8#..V198808-199608

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22060iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main57114-22070iMX81,RX8#..V198808-199608

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-22030iLX80,RX80..LHD..5F..GEN198808-199302

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-22020iLX80,RX80..LHD..5F..GEN198808-199302

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22160iGX81,MX8#..4FC198808-199302

main57255-22190iRX8#;LX80..4FC;GX81,MX81..5F198808-199608

main57255-22240iLX80..5F198808-199302

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22130iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main57401-22150iMX81,RX8#..V198808-199608

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22130iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main57402-22150iMX81,RX8#..V198808-199608

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-22080iGX81,MX8#,RX81198808-199608

main57407-22090iLX80,RX80198808-199302

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-22031iGX81,LX80,MX8#,RX8#198808-199608

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-22070iGX81,MX83,RX80..RHD198808-199302

main57505-22090iGX81,LX80,MX81,RX8#..LHD198808-199608

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-22070iGX81,MX83,RX80..RHD198808-199302

main57506-22090iGX81,LX80,MX81,RX8#..LHD198808-199608

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57462-22030iGX81,LX80,MX8#,RX8#198808-199608

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-22020iGX81,MX8#,RX81198808-199608

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22210iGX81,MX8#,RX81..ARL,GEN198808-199302

main57601-22220iLX80,RX80198811-199302

main57601-22280iMX81,RX81..V198808-199608

main57601-22290iLX80,RX80198808-198811

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22190iGX81,MX8#,RX81..ARL,GEN198808-199302

main57602-22210iLX80,RX80198811-199302

main57602-22220iMX81,RX81..V198808-199608

main57602-22280iLX80,RX80198808-198811

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-22900iGX81,MX8#,RX81198808-199608

main57605-22901iLX80,RX80198808-199302

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-22904iLX80,RX80198808-198809

main57615-22905iGX81,LX80,MX8#,RX8#198808-199608

main57615-22906iGX81,MX8#,RX81..ARL,GEN198808-199008

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-22070iLX80,RX80198808-198809

main57616-22090iRX80;GX81,LX80,MX8#,RX81..ARL,GEN198808-199302

main57616-22905iMX81,RX81..V198808-199608

57628BPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-22020iGX81,LX80,MX8#,RX8#198808-199608

57629BPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-22010iGX81,LX80,MX8#,RX8#198808-199608

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-22050iGX81,MX8#,RX81..ARL,GEN198808-199302

main57803-22060iMX81,RX81..V198808-199608

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-22050iGX81,MX8#,RX81..ARL,GEN198808-199302

main57804-22060iMX81,RX81..V198808-199608

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58303-22060iGX81,LX80,MX8#,RX8#198808-199608

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58304-22030iGX81,LX80,MX8#,RX8#198808-199608

9010508334

main90105-08334

9011505088

main90115-05088

9011906455

main90119-06455

9011910515

main90119-10515

9011912162

main90119-12162

9017908117

main90179-08117

9095001056

main90950-01056

9095001088

main90950-01088

9095001258

main90950-01258

9095001431

main90950-01431

9095001477

main90950-01477

9095001496

main90950-01496

9095001510

main90950-01510

9095001518

main90950-01518

9095006013

main90950-06013

9095010252

main90950-10252

9165140814

main91651-40814

48 parts on this diagram · 1 diagram in section
