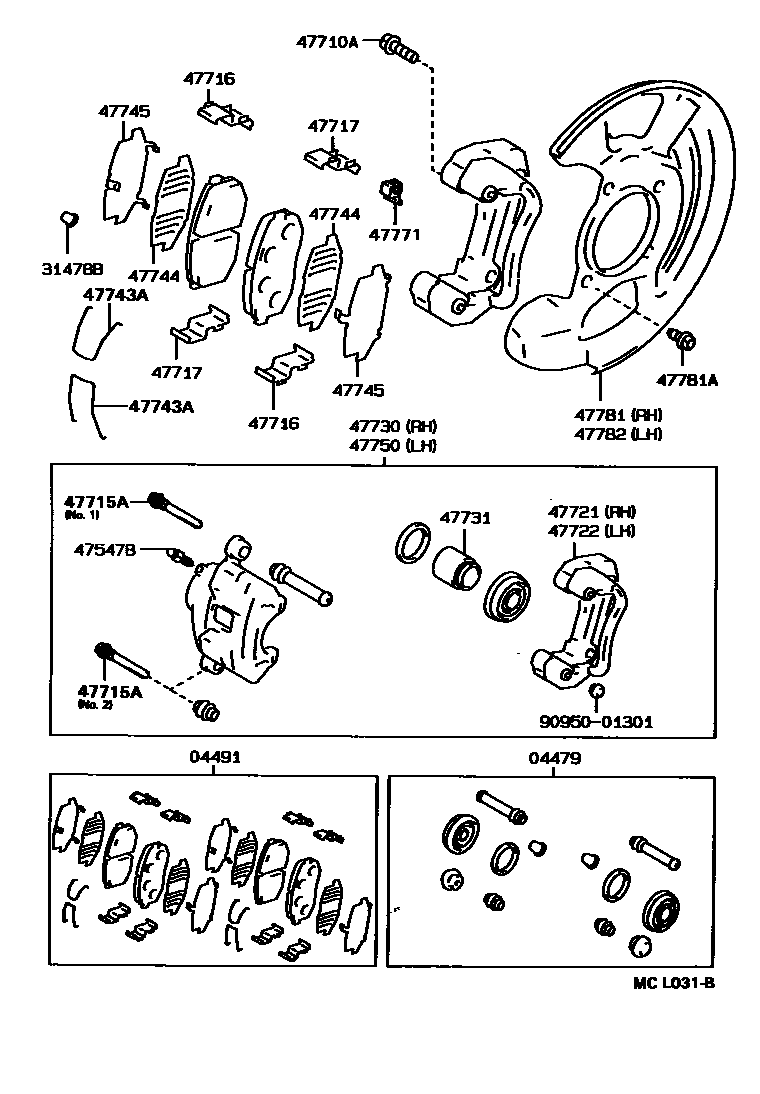

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22020iGX81,LX80,MX8#,RX8#198808-199412

main04479-22021iRX81199412-199608

04491PAD KIT, DISC BRAKE, FRONT

main04491-22260iGX81,LX80,MX8#,RX8#198808-199105

main04491-22270iLX80,RX80..LHD..5F..GEN198808-199002

TAXI PACKAGE FOR CHINA

main04491-22310iLX80,RX80..LHD..5F..GEN199002-199206

TAXI PACKAGE FOR CHINA

main04491-22311iLX80,RX80..LHD..5F199206-199302

TAXI PACKAGE FOR CHINA

main04491-22340iGX81,LX80,MX8#,RX8#199105-199408

main04491-22410iRX81199408-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGX81,LX80,MX8#,RX8#198808-199608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iGX81,LX80,MX8#,RX8#198808-199608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058×4iGX81,LX80,MX8#,RX8#198808-199608

*12-1.25PX31-20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22010×4iGX81,LX80,MX8#,RX8#198808-199608

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-35010×4iGX81,LX80,MX8#,RX8#198808-199608

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-35010×4iGX81,LX80,MX8#,RX8#198808-199608

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22090iGX81,LX80,MX8#,RX8#198808-199008

main47721-22130iMX8#,RX81199008-199608

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22070iGX81,LX80,MX8#,RX8#198808-199008

main47722-22090iMX8#,RX81199008-199608

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22190iGX81,LX80,MX8#,RX8#198808-199008

main47730-22230iMX8#,RX81199008-199412

main47730-22231iRX81199412-199608

47731PISTON, FRONT DISC BRAKE

main47731-35020×2iGX81,LX80,MX8#,RX8#198808-199608

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-22010×4iGX81,LX80,RX80199105-199408

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-35030×4iGX81,LX80,MX8#,RX8#198808-199105

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35030×4iGX81,LX80,MX8#,RX8#198808-199105

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22190iGX81,LX80,MX8#,RX8#198808-199008

main47750-22230iMX8#,RX81199008-199412

main47750-22231iRX81199412-199608

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030×2iGX81,LX80,MX8#,RX8#198906-199608

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-22030iMX83..GLX198908-199302

W(*66)

main47781-22130iGX81,LX80,MX8#,RX8#198808-199608

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08696×6iMX83..GLX198908-199302

W(*66)

main91612-60814×8iRX81199403-199608

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-22030iMX83..GLX198908-199302

W(*66)

main47782-22130iGX81,LX80,MX8#,RX8#198808-199608

9095001301

main90950-01301

21 parts on this diagram · 2 diagrams in section
