ENGINE OVERHAUL GASKET KIT

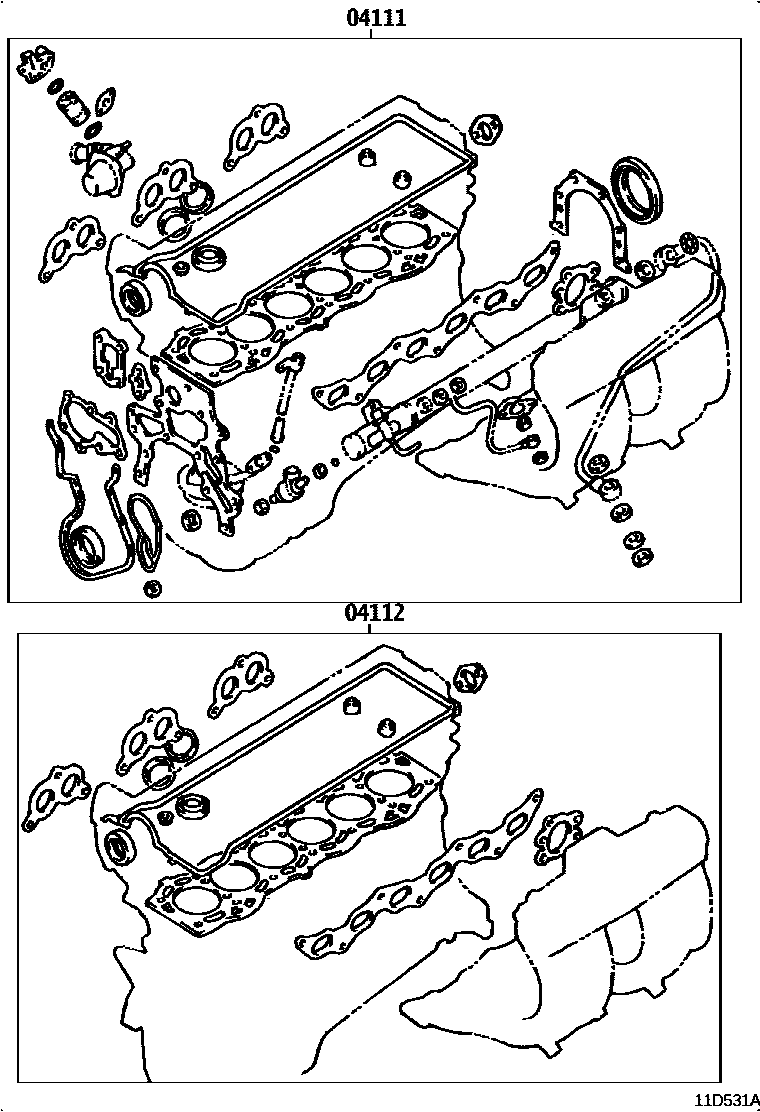

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-35310i199008-199011

main04111-35311i199011-199311

main04111-35312i199311-199608

main04111-35320i198808-199011

main04111-35321i199011-199302

main04111-42030i198808-199008

main04111-42031i199008-199110

main04111-42032i199110-199111

main04111-42033i199111-199302

main04111-43060i198808-198901

main04111-43061i198901-199003

main04111-43062i199003-199008

main04111-43063i199008-199302

main04111-54080i198808-198904

main04111-54081i198904-198908

main04111-54082i198908-199108

main04111-54083i199108-199302

main04111-70060i198808-199007

main04111-70061i199007-199302

04112GASKET KIT, ENGINE VALVE GRIND

main04112-35290i198808-199008

main04112-35291i199011-199311

main04112-35292i199311-199608

main04112-35300i198808-199008

main04112-35301i199011-199302

main04112-42030i198808-199008

main04112-42031i199008-199110

main04112-42032i199110-199111

main04112-42033i199111-199302

main04112-43011i198808-199003

main04112-43012i199003-199009

main04112-43013i199009-199302

main04112-54070i198808-199108

main04112-54071i199108-199302

main04112-70060i198808-199007

main04112-70061i199007-199302

2 parts on this diagram · 5 diagrams in section
