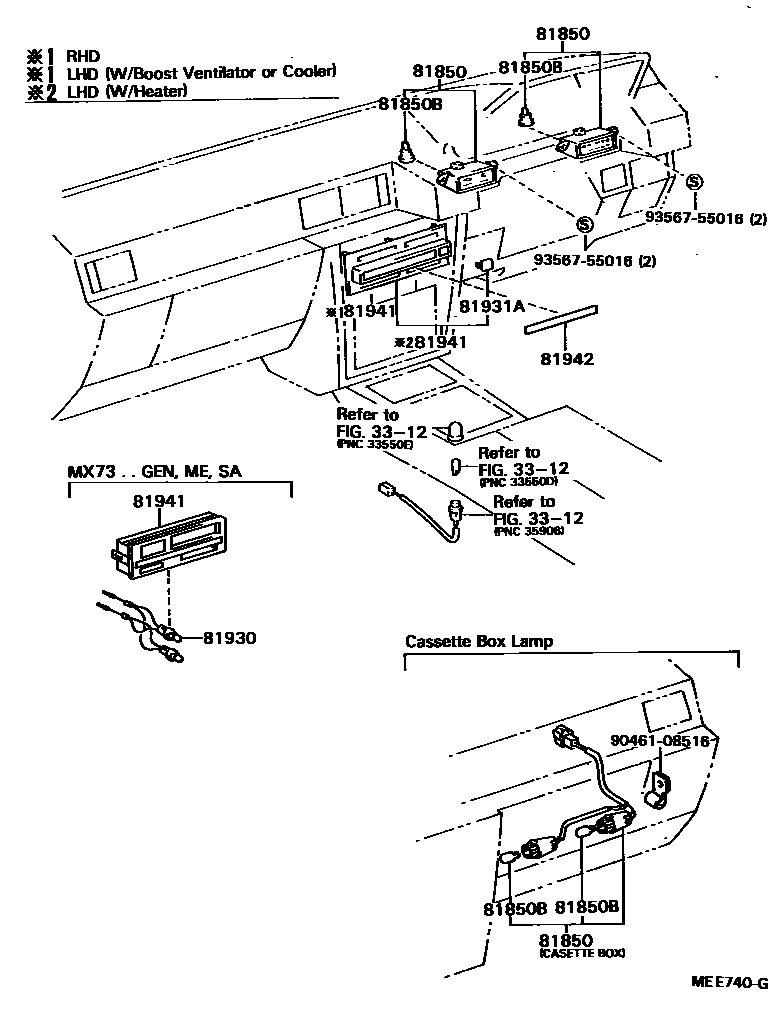

INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-22090iGX71,MX73,RX70..HT198504-198808

CASSETTE BOX

main81850-22130iMX73..ARL198408-198508

INNER

sub81850-22300

main81850-22150iLX7#198408-198608

INNER

main81850-22151iLX70198608-198808

INNER

main81850-22180iMX73..5F..SA198408-198608

INNER

sub81850-22350

main81850-22220iMX73..ARL198408-198808

OUTER

main81850-22230iGX71,MX7#,RX70,YX70..EUR,GEN,ME,SA198408-198608

OUTER

sub81850-22390

main81850-22240iLX7#198408-198808

OUTER

main81850-22270iMX73..ARL198508-198608

INNER

main81850-22271iMX73..ARL198608-198808

INNER

main81850-22280iMX73..4FC..TWC..(EUR,GEN,SA)198408-198808

INNER

main81850-22350iMX73..GEN198608-198808

INNER

main81850-22390iGX71,MX73,RX7#,YX70198608-198808

OUTER

81850BBULB, INDICATOR LAMP

main84999-30020iGX71,LX7#,MX7#,RX70,71,72,YX70198408-198808

12V 1.4W,12V 1.4W,YAZAKI

main84999-50140iGX71,LX70,MX73,RX7#..GEN,ME198608-198808

12V 1.4W,12V 1.4W,JEKO

main90981-11014iGX71,MX73,RX70..HT198504-198808

14V 1.4W,12V 1.4W,CASSETTE BOX LAMP

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-22100iMX73..SA198411-198808

81931ACOVER, COOLER SWITCH HOLE

main55538-22040iGX71,LX7#,RX70,YX70198408-198808

sub55538-22041

81941PLATE, HEATER CONTROL NAME

main55519-22120iMX73..GEN,ME,SA198411-198808

W/PUSH TYPE *AAC

main55519-22121iMX73..(GD,GLX,GTX)..(GEN,ME)198608-198808

sub55519-22122

main55519-22160iGX71,RX70,YX70..RHD198408-198808

W/*HEA,W/*HEA & COOLER

sub55519-22162

main55519-22161iMX73..ARL198608-198808

W/*HEA

sub55519-22162

main55519-22161iMX73..EFI..GEN198701-198808

sub55519-22162

main55519-22170iMX73..RHD..GLX..(ARL,EUR)198408-198808

W/*AAC

main55519-22180iRX70..RHD..GEN198408-198608

W/*BV,W/*BV & COOLER

sub55519-22182

main55519-22181iRX70,72..RHD..GEN198608-198808

W/*BV,W/*BV & COOLER

sub55519-22182

main55519-22190iGX71,LX7#,MX7#,RX70..LHD..(GL,GLX,XL)198408-198608

W/*HEA

sub55519-22192

main55519-22191iRX72..XL..ME198608-198808

W/*HEA

sub55519-22192

main55519-22200iMX7#..LHD198408-198608

W/LEVER TYPE *AAC

main55519-22200iGX71..LHD..GEN198408-198608

W/*AAC

main55519-22220iLX7#,RX70..LHD198408-198808

W/*HEA & COOLER

sub55519-22222

main55519-22221iMX73,RX7#..LHD198608-198808

W/*HEA & COOLER

sub55519-22222

main55519-22230iRX70..XL..ME198408-198608

W/*BV,W/*BV & COOLER

sub55519-22232

main55519-22231iRX72..5F..XL..ME198608-198808

W/*BV,W/*BV & COOLER

sub55519-22232

81942SHEET, HEATER CONTROL NAME

main81942-22010iGX71..GEN198608-198808

W/*AAC

sub81942-22011

9046108516

main90461-08516

9356755016

main93567-55016

9 parts on this diagram · 1 diagram in section
