EPC Data

WIRING & CLAMP

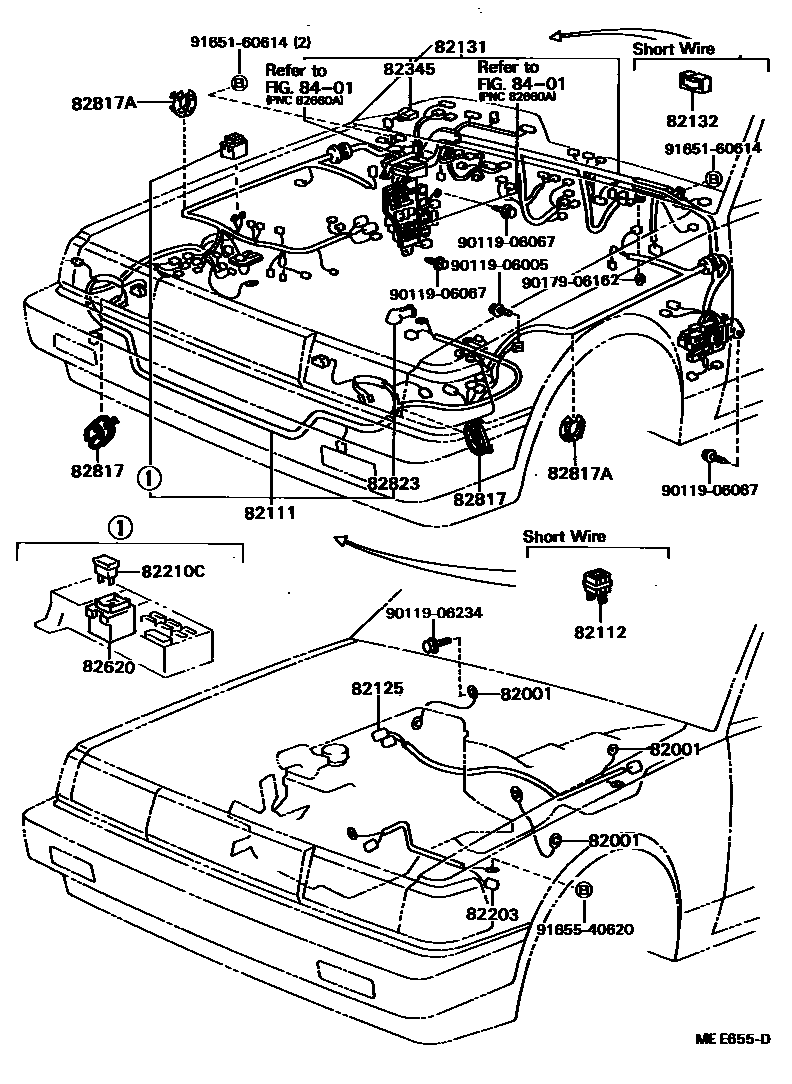

Parts diagram
82001CABLE, BOND, NO.1
main90980-07109i198805-198808
ENGINE-COWL
main90980-07119i198408-198808
CLUTCH-MEMBER
main90980-07126i198408-198808
ENGINE-COWL
main90980-07200i198408-198608
ENGINE-COWL
main90980-07252i198408-198808
MISSION-MEMBER
main90980-07292i198708-198808
ENGINE-COWL
main90980-07309i198805-198808
ENGINE-COWL
82111WIRE, ENGINE ROOM MAIN
main82111-22280i198408-198608
main82111-22290i198408-198608
main82111-22310i198408-198608
main82111-22320i198408-198607
main82111-22321i198608-198609
main82111-22322i198607-198608
main82111-22330i198411-198503
main82111-22331i198503-198508
main82111-22332i198508-198608
main82111-22333i198608-198609
main82111-22334i198609-198808
main82111-22340i198408-198512
main82111-22341i198512-198608
main82111-22343i198608-198611
main82111-22350i198408-198503
main82111-22351i198508-198512
main82111-22352i198512-198608
main82111-22353i198608-198611
main82111-22354i198611-198808
main82111-22360i198408-198608
main82111-22361i198608-198808
main82111-22370i198508-198608
main82111-22371i198608-198808
main82111-22390i198408-198608
main82111-22400i198408-198608
main82111-22401i198608-198808
main82111-22520i198502-198512
main82111-22521i198512-198611
main82111-22523i198611-198712
main82111-22530i198502-198808
main82111-22630i198504-198608
main82111-22631i198608-198609
main82111-22632i198609-198808
main82111-22640i198504-198512
main82111-22641i198512-198808
main82111-22650i198504-198608
main82111-22651i198608-198808
main82111-22660i198508-198512
main82111-22661i198512-198808
main82111-22670i198508-198608
main82111-22671i198608-198808
main82111-22730i198609-198808
main82111-22740i198611-198808
82112WIRE, ENGINE ROOM, NO.2
main82112-22020i198608-198808
SHORT PIN(MAGNET CLUTCH RELAY)
82125WIRE, TRANSMISSION
main82125-22030i198408-198808
82131WIRE, COWL
main82131-22770i198408-198508
main82131-22771i198508-198510
main82131-22772i198510-198608
main82131-22773i198608-198808
main82131-22790i198411-198503
main82131-22791i198503-198508
main82131-22792i198508-198510
main82131-22793i198510-198608
main82131-22800i198408-198508
main82131-22802i198510-198705
main82131-22810i198408-198503
main82131-22811i198503-198508
main82131-22812i198508-198608
main82131-22820i198408-198503
W/*DS
main82131-22821i198503-198508
W/*DS
main82131-22822i198508-198608
W/*DS
main82131-22830i198408-198503
main82131-22831i198503-198508
main82131-22832i198508-198608
main82131-22833i198608-198808
main82131-22840i198408-198508
main82131-22841i198508-198510
main82131-22842i198510-198608
main82131-22843i198608-198705
main82131-22844i198705-198808
main82131-22850i198408-198508
main82131-22851i198508-198608
main82131-22852i198608-198705
main82131-22853i198705-198808
main82131-22870i198408-198508
main82131-22871i198508-198608
main82131-22880i198408-198501
main82131-22881i198501-198508
main82131-22882i198508-198608
main82131-22883i198608-198808
main82131-2A040i198408-198510
main82131-2A042i198510-198608
main82131-2A050i198408-198508
main82131-2A051i198508-198608
main82131-2A060i198408-198503
main82131-2A061i198503-198508
main82131-2A062i198508-198808
main82131-2A080i198408-198508
W/*PW OR *HC
main82131-2A081i198508-198608
main82131-2A090i198408-198508
main82131-2A170i198408-198508
W/*DS
main82131-2A171i198508-198510
W/*DS
main82131-2A172i198510-198608
W/*DS
main82131-2A173i198608-198808
W/*DS
main82131-2A190i198411-198503
W/*DS
main82131-2A191i198503-198508
W/*DS
main82131-2A193i198510-198608
W/*DS
main82131-2A194i198608-198808
W/*DS
main82131-2A200i198411-198503
W/*CRC
main82131-2A201i198503-198508
W/*CRC
main82131-2A202i198508-198608
W/*CRC
main82131-2A203i198608-198808
W/*AC
main82131-2A210i198411-198503
W/*DS & *CRC
main82131-2A211i198503-198508
W/*DS & *CRC
main82131-2A212i198508-198608
W/*DS & *CRC
main82131-2A213i198608-198808
W/*DS & *AC
main82131-2A250i198504-198508
main82131-2A251i198508-198510
main82131-2A252i198510-198608
main82131-2A253i198608-198808
main82131-2A260i198504-198508
W/*DS
main82131-2A262i198510-198608
W/*DS
main82131-2A263i198608-198808
W/*DS
main82131-2A270i198504-198508
W/*CRC
main82131-2A271i198508-198608
W/*CRC
main82131-2A272i198608-198808
main82131-2A280i198504-198508
W/*DS & *CRC
main82131-2A281i198508-198608
W/*DS & *CRC
main82131-2A282i198608-198808
W/*DS
main82131-2A290i198504-198508
main82131-2A291i198508-198608
main82131-2A300i198504-198508
W/*DS
main82131-2A310i198504-198508
main82131-2A311i198508-198608
main82131-2A312i198608-198808
main82131-2A360i198508-198510
main82131-2A361i198510-198608
main82131-2A362i198608-198808
main82131-2A410i198608-198808
main82131-2A420i198608-198808
82132WIRE, COWL, NO.2
main82132-22040i198601-198608
SHORT PIN(BLOWER MOTOR)
main83132-22050i198709-198808
82203WIRE SUB-ASSY, ALTERNATOR
main82203-22010i198502-198512
82210CFUSIBLE LINK
main90982-08188i198408-198808
30A,TERM.:FEMALE,PNK,30A
main90982-08189i198408-198808
40A,TERM.:FEMALE,GRN,40A
main90982-08203×2i198408-198808
80A,TERM.:MALE,BLK,80A
main90982-08245i198512-198808
main90982-08246i198608-198808
100A,TERM.:MALE,BLUE,100A
82345DIODE
main82345-12050i198705-198808
NO.2
main82345-22051i198612-198808
main82345-32010i198612-198808
*DS,KM
82620BLOCK ASSY, FUSIBLE LINK
main82602-22150i198408-198608
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-22420×2i198408-198808
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-32010×2i198408-198808
82823CAP, TERMINAL, NO.1
main82823-20040i198603-198604
ALTERNATOR(B)TERMINAL
main82823-22050i198604-198608
ALTERNATOR(B)TERMINAL
main82823-22060i198608-198808
ALTERNATOR(B)TERMINAL
main82823-32020i198510-198603
ALTERNATOR(B)TERMINAL
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011906005
main90119-06005
9011906067
main90119-06067
9011906234
main90119-06234
9017906162
main90179-06162
9165160614
main91651-60614
9165540620
main91655-40620

20 parts on this diagram · 12 diagrams in section
