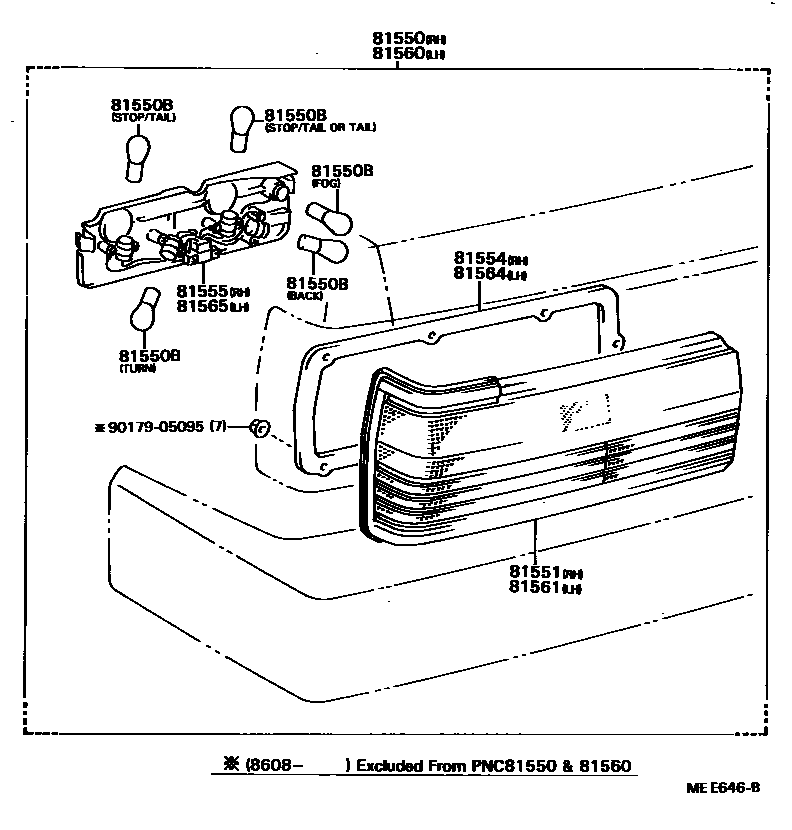

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-22601iMX73,RX72..SED..ME198608-198808

main81550-22630iGX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA)198608-198808

main81550-22651iMX73,RX72..HT198608-198808

main81550-23190iRX70,72..WG..(GEN,ME)198608-198808

main81550-23210iRX70,72..WG..SA198608-198808

main81550-80230iGX71,MX73,RX70..SED..ME198408-198608

main81550-80232iGX71,LX71,MX73..EUR198408-198608

main81550-80233iGX71,LX70,MX73,RX70,YX70..SED..(ARL,GEN,SA)198408-198608

main81550-80235iGX71,MX73,RX70..HT198504-198608

main81550-80246iRX70..WG..(GEN,ME)198606-198608

main81550-80248iLX70,MX72,RX70..WG..(EUR,SA)198606-198608

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iGX71,LX7#,MX7#..EUR; GX71,LX71,MX73..EUR198408-198608

12V 21W,12V 21W(RR FOG); 12V 21W,12V 21W(TURN OR BACK)

main99132-11230×4iGX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA198408-198606

12V 23W,12V 23W(TURN OR BACK)

main99132-21210×4iGX71,LX7#,MX7#,RX7#,YX70198408-198808

12V 21/5W,12V 21/5W(STOP/TAIL OR TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-22600iGX71,MX73,RX70..SED..ME198408-198608

main81551-22601iMX73,RX72..SED..ME198608-198808

main81551-22620iGX71,LX71,MX73..EUR198408-198608

main81551-22630iGX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA)198408-198808

main81551-22650iGX71,MX73,RX70..HT198504-198608

main81551-22651iMX73,RX72..HT198608-198808

main81551-23190iRX70,72..WG..(GEN,ME)198606-198808

main81551-23210iLX70,MX72..EUR198411-198608

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-22600iGX71,MX73,RX70..SED..ME198408-198608

main81554-22601iMX73,RX72..SED..ME198608-198808

main81554-22620iGX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)198408-198808

main81554-22650iGX71,MX73,RX70,72..HT198504-198808

main81554-23190iLX70,MX72,RX70,72..WG198411-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-22600iGX71,MX73,RX70..SED..ME198408-198608

main81555-22601iMX73,RX72..SED..ME198608-198808

main81555-22620iGX71,LX71,MX73..EUR198408-198608

main81555-22630iGX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA)198408-198808

main81555-22650iGX71,MX73,RX70..HT198504-198608

main81555-22651iMX73,RX72..HT198608-198808

main81555-23190iRX70,72..WG..(GEN,ME)198606-198808

main81555-23210iRX70,72..WG..SA198606-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-22601iMX73,RX72..SED..ME198608-198808

main81560-22630iGX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA)198608-198808

main81560-22651iMX73,RX72..HT198608-198808

main81560-23190iRX70,72..WG..(GEN,ME)198608-198808

main81560-23210iRX70,72..WG..SA198608-198808

main81560-80236iGX71,MX73,RX70..SED..ME198408-198608

main81560-80238iGX71,LX71,MX73..EUR198408-198608

main81560-80239iGX71,LX70,MX73,RX70,YX70..SED..(ARL,GEN,SA)198408-198608

main81560-80241iGX71,MX73,RX70..HT198504-198608

main81560-80256iRX70..WG..(GEN,ME)198606-198608

main81560-80258iLX70,MX72,RX70..WG..(EUR,SA)198606-198608

81561LENS, REAR COMBINATION LAMP, LH

main81561-22600iGX71,MX73,RX70..SED..ME198408-198608

main81561-22601iMX73,RX72..SED..ME198608-198808

main81561-22620iGX71,LX71,MX73..EUR198408-198608

main81561-22630iGX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA)198408-198808

main81561-22650iGX71,MX73,RX70..HT198504-198608

main81561-22651iMX73,RX72..HT198608-198808

main81561-23190iRX70,72..WG..(GEN,ME)198606-198808

main81561-23210iRX70,72..WG..SA198606-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-22600iGX71,MX73,RX70..SED..ME198408-198608

main81554-22601iMX73,RX72..SED..ME198608-198808

main81554-22620iGX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)198408-198808

main81554-22650iGX71,MX73,RX70,72..HT198504-198808

main81554-23190iLX70,MX72,RX70,72..WG198411-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-23190iRX70..WG198411-198606

main81555-23210iRX70,72..WG..SA198606-198808

main81565-22600iGX71,MX73,RX70..SED..ME198408-198608

main81565-22601iMX73,RX72..SED..ME198608-198808

main81565-22620iGX71,LX71,MX73..EUR198408-198608

main81565-22630iGX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA)198408-198808

main81565-22650iGX71,MX73,RX70..HT198504-198608

main81565-22651iMX73,RX72..HT198608-198808

9017905095

main90179-05095

10 parts on this diagram · 5 diagrams in section
