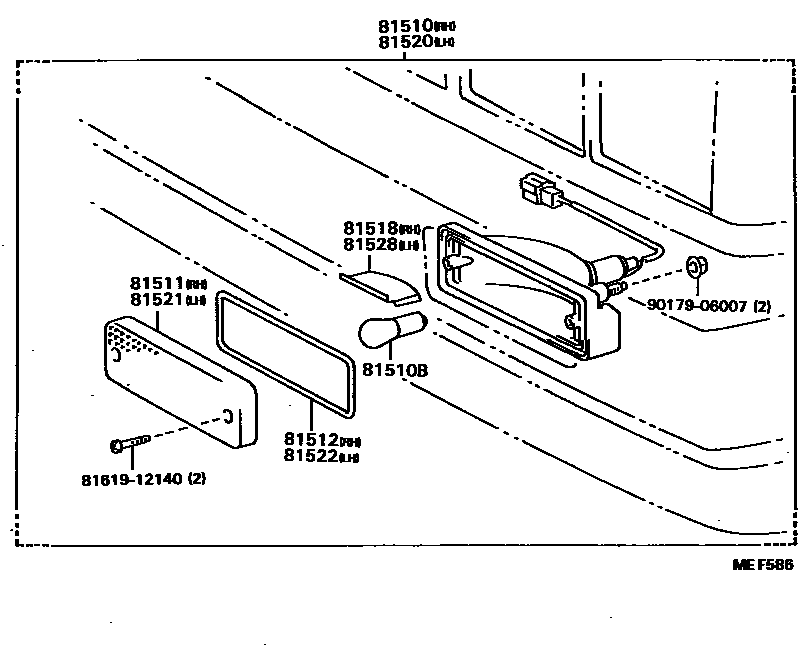

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80015iMX73,RX72..ME198608-198808

main81510-80016iGX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA198408-198608

main81510-80017iGX71,LX7#,MX7#..EUR198408-198608

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iGX71,LX7#,MX7#..EUR198408-198608

12V 21W,12V 21W

main99132-11230×2iGX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA198408-198608

12V 23W,12V 23W

main99132-11270×2iMX73,RX72..ME198608-198808

12V 27W,12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iGX71,LX7#,MX7#,RX7#,YX70198408-198808

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iGX71,LX7#,MX7#,RX7#,YX70198408-198808

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-22220iGX71,LX7#,MX7#,RX70,71,72,YX70198408-198808

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80015iMX73,RX72..ME198608-198808

main81520-80016iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,SA198608-198808

main81520-80017iGX71,LX7#,MX7#..EUR198408-198608

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iGX71,LX7#,MX7#,RX7#,YX70198408-198808

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iGX71,LX7#,MX7#,RX7#,YX70198408-198808

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81517-22220iGX71,LX7#,MX7#,RX7#,YX70198408-198808

8161912140

main81619-12140

9017906007

main90179-06007

11 parts on this diagram · 1 diagram in section
