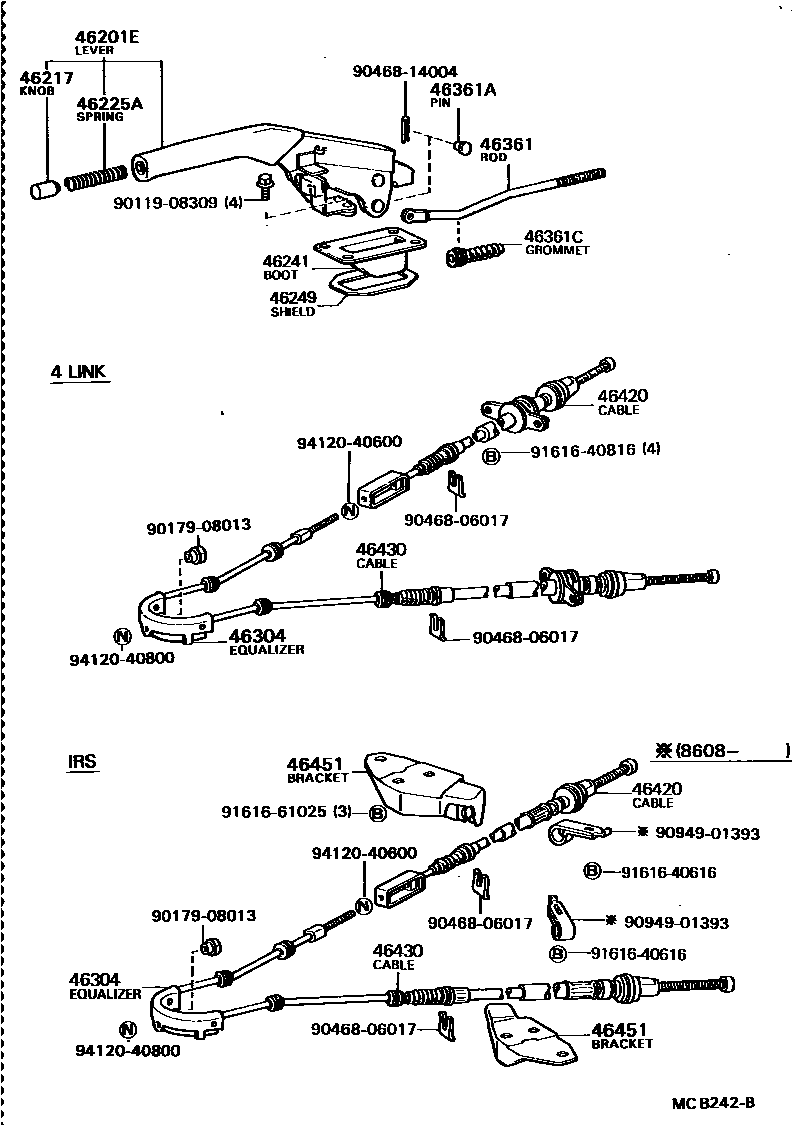

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-22150-02iGX71,LX7#,MX7#,RX70,YX70198408-198608

MAROON,MAROON

main46201-22150-03iGX71,MX73,RX70,YX70..SA198608-198705

GRAY,COOL GRAY

main46201-22150-04iGX71,LX70,RX7#; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198608-198802

BLUE,DARK BLUE

main46201-22150-05iGX71,LX7#,MX7#,RX70,YX70198408-198608

BEIGE,BEIGE

main46201-22150-12iGX71,LX70,RX7#; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198608-198802

MAROON,MAROON

main46201-22150-15iGX71,LX70,RX7#; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198608-198802

BEIGE,DARK BEIGE

main46201-22151-04iGX71,LX70,RX7#; GX71,MX73,RX72,YX70..SA; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198802-198808

BLUE,DARK BLUE

main46201-22151-12iGX71,LX70,RX7#; GX71,MX73,RX72,YX70..SA; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198802-198808

MAROON,MAROON

main46201-22151-15iGX71,LX70,RX7#; GX71,MX73,RX72,YX70..SA; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198802-198808

BEIGE,DARK BEIGE

main46201-22170-04iMX73..(GLX,GTX)..(GEN,ME)198608-198802

BLUE,DARK BLUE

main46201-22170-12iMX73..(GLX,GTX)..(GEN,ME)198608-198802

MAROON,MAROON

main46201-22170-15iMX73..(GLX,GTX)..(GEN,ME)198608-198802

BEIGE,DARK BEIGE

main46201-22171-04iMX73..GTX198802-198808

BLUE,DARK BLUE

main46201-22171-12iMX73..GTX198802-198808

MAROON,MAROON

main46201-22171-15iMX73..GTX198802-198808

BEIGE,DARK BEIGE

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-32iGX71,LX7#,MX73,RX70198408-198410

MAROON,MAROON

main46217-10020-35iGX71,LX7#,MX73,RX70198408-198410

BEIGE,BEIGE

main46217-10020-53iGX71,LX7#,MX73,RX70198408-198410

GRAY,COOL GRAY

main46217-12020-D0iGX71,LX70,RX7#; GX71,MX73,RX72,YX70..SA; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198802-198808

MAROON,MAROON

main46217-12020-E0iGX71,LX70,RX7#; GX71,MX73,RX72,YX70..SA; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198802-198808

BEIGE,DARK BEIGE

main46217-12020-J0iGX71,LX70,RX7#; GX71,MX73,RX72,YX70..SA; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198802-198808

BLUE,DARK BLUE

main46217-20020-05iGX71,MX73,RX70,YX70..SA198608-198705

BEIGE,BEIGE

main46217-20020-12iGX71,MX73,RX70,YX70..SA198608-198705

MAROON,MAROON

main46217-20020-15iGX71,MX73,RX72,YX70..SA198705-198802

BEIGE,BEIGE

main46217-20020-23iGX71,LX7#,MX7#,RX70,YX70198410-198608

GRAY,COOL GRAY

main46217-20020-42iGX71,LX70,RX7#; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198608-198802

MAROON,MAROON

main46217-20020-54iGX71,LX70,RX7#; MX73..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198608-198802

BLUE,DARK BLUE

main46217-22040-12iMX73..(GLX,GTX)..(GEN,ME)198608-198802

MAROON,MAROON

main46217-22040-14iMX73..(GLX,GTX)..(GEN,ME)198608-198802

BLUE,DARK BLUE

main46217-22040-15iMX73..(GLX,GTX)..(GEN,ME)198608-198802

BEIGE,BEIGE

main46217-32010-15iMX73..GTX198802-198808

BEIGE,DARK BEIGE

main46217-32010-D0iMX73..GTX198802-198808

MAROON,MAROON

main46217-32010-J0iMX73..GTX198802-198808

BLUE,DARK BLUE

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iGX71,LX70,MX73,RX7#,YX70198802-198808

main90501-10745iGX71,LX7#,MX7#,RX7#,YX70198408-198802

46241BOOT, PARKING BRAKE LEVER

main46241-22060iGX71,LX7#,MX7#,RX7#,YX70198408-198808

46249SHIELD, PARKING BRAKE HOLE

main46249-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-14010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

46361ROD, PARKING BRAKE PULL

main46361-22060iGX71,LX7#,MX7#,RX7#,YX70198408-198808

46361APIN, PARKING BRAKE PULL ROD

main90240-08037iGX71,LX7#,MX7#,RX7#,YX70198408-198808

46361CGROMMET(FOR PARKING BRAKE PULL ROD)

main90480-01292iGX71,LX7#,MX7#,RX7#,YX70198408-198808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22270iGX71,LX71..(EFI,TD)..(EUR,ME,SA)198408-198503

main46420-22271iGX71,LX71..(EFI,TD)..(EUR,ME,SA)198503-198808

main46420-22280iRX70,YX70..SED..SA198608-198705

main46420-22281iLX70,RX70,72..(HT,SED)..(GEN,ME)198608-198808

main46420-22340iMX73;GX71..EUR,GEN198408-198808

main46420-23140iLX70,MX72,RX70,72..WG198411-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-22190iGX71,LX71..(EFI,TD)..(EUR,ME,SA)198408-198503

main46430-22191iRX71,73198608-198808

main46430-22200iRX72,YX70..SED..SA198705-198808

main46430-22201iLX70,RX70,72..(HT,SED)..(GEN,ME)198608-198808

main46430-22260iMX73;GX71..EUR,GEN198408-198808

main46430-23100iLX70,MX72,RX70,72..WG198411-198808

46451BRACKET, CABLE SUPPORT

main46451-22030iGX71,LX71,MX73,RX71,73198408-198808

RH

main46452-22030iGX71,LX71,MX73,RX71,73198408-198808

LH

9011908309

main90119-08309

9017908013

main90179-08013

9046806017

main90468-06017

9046814004

main90468-14004

9094901393

main90949-01393

9161640616

main91616-40616

9161640816

main91616-40816

9161661025

main91616-61025

9412040600

main94120-40600

9412040800

main94120-40800

22 parts on this diagram · 2 diagrams in section
