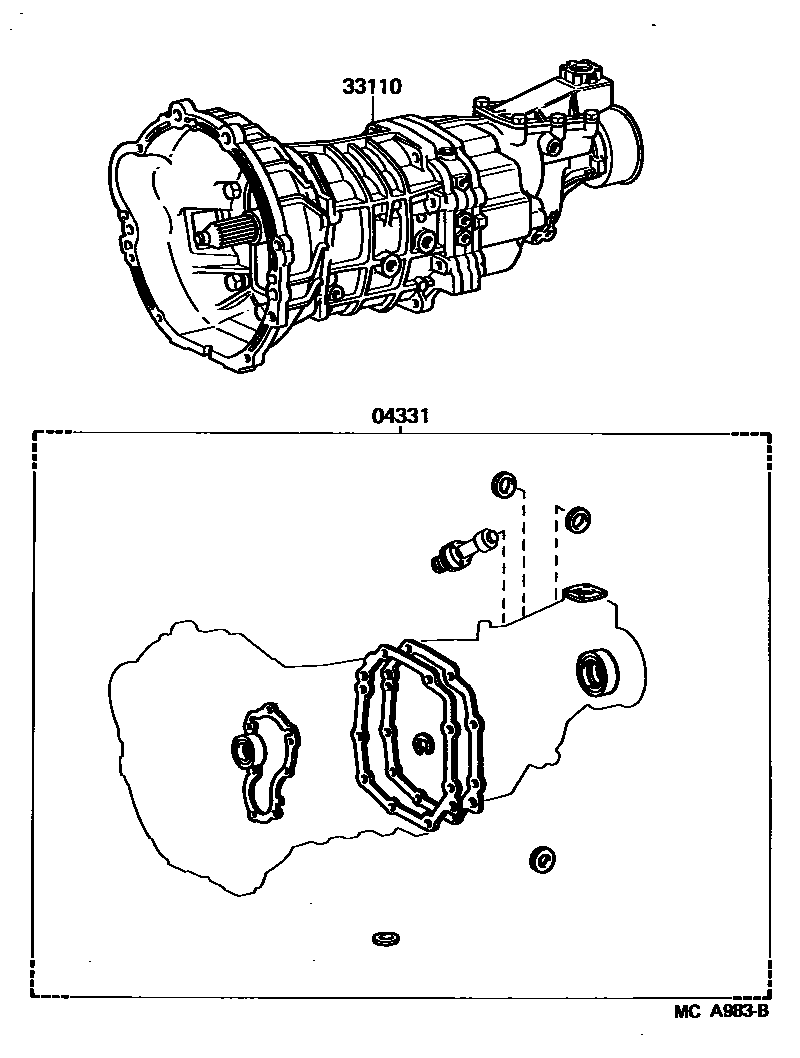

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20050iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33110TRANSMISSION ASSY, MANUAL

main33030-22760iRX70..4F198408-198608

main33030-22780iRX7#..5F198408-198808

main33030-22810iLX70..5F..GEN198408-198808

main33030-22860iYX70198502-198808

main33030-22880iLX71..5F198408-198608

main33030-2A010iMX73..5F..SA198502-198808

main33030-2A020iGX71..5F..EFI198408-198808

main33030-2A030iLX70..EUG198411-198608

main33030-3A150iGX71..EUG198408-198608

main33030-3A170iMX73..5F..(EUR,GEN,ME)198408-198808

2 parts on this diagram · 1 diagram in section
