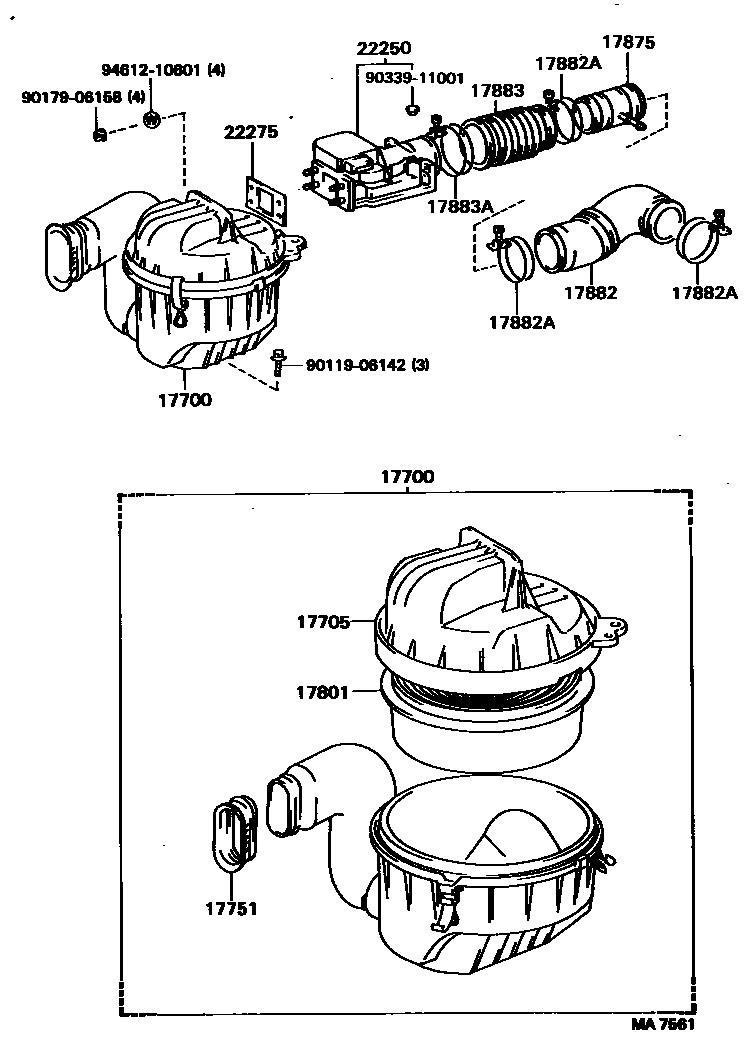

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

17700CLEANER ASSY, AIR

main17700-37150i21R,22R..RX7#..GEN198408-198808

W/HOT AIR INTAKE

main17700-37160i21R,22R..RX7#198408-198808

main17700-43120i5ME..MX7#..ARL,EUR198408-198608

main17700-54310i2L#..LX7#198408-198808

main17700-70030i5MGE..MX73198408-198808

main17700-70031i5MGE..MX73..ARL,GEN198608-198808

main17700-70040i1GE..GX71..GEN,ME198408-198608

main17700-70041i1GE..GX71198608-198808

main17700-72060i2Y..YX70198502-198808

17705CAP SUB-ASSY, AIR CLEANER

main17705-37050i21R,22R..RX7#198408-198808

main17705-43090i5ME..MX7#..ARL,EUR198408-198608

main17705-54110i2L#..LX7#198408-198808

main17705-70030i1GGE..GX71198408-198808

sub17705-73120

main17705-70040i5ME..MX73..GEN,ME198408-198808

main17705-71020i2Y..YX70198502-198808

sub17705-73080

17751INLET, AIR CLEANER, NO.1

main17751-70010i5M#..MX7#198408-198808

main17751-70011i5M#..MX73..ARL,GEN,ME198608-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-34070i2Y..YX70198502-198808

sub17801-34060

main17801-37010i21R,22R..RX7#198408-198808

sub17801-41090

main17801-54060i2L#..LX7#198408-198808

main17801-70020i1G#..GX71198408-198808

17875PIPE, INTAKE AIR CONNECTOR

main17875-43050i5MGE..MX73198408-198808

sub17875-42060

main17875-43070i5ME..MX7#198408-198808

main17875-70060i1GE..GX71198408-198411

main17875-70061i1GE..GX71198411-198808

main17875-70070i1GGE..GX71198408-198608

17882HOSE, AIR CLEANER, NO.2

main17880-37020i21R..RX70198408-198608

sub17880-37030

main17880-37021i21R..RX70,71198608-198705

sub17880-37022

main17880-37022i22R..RX7#..GEN,ME198705-198808

main17880-37030i22R..RX72..SA198705-198808

sub17880-37022

main17881-54240i2LT..LX7#198408-198608

TURBO SIDE

main17881-54250i2Y..YX70198502-198808

main17881-70110i1GE..GX71198408-198411

main17881-70111i1GE..GX71198411-198808

main17882-43110i5MGE..MX73198408-198808

main17882-43120i5ME..MX7#..ARL,EUR198408-198608

main17882-43130i5ME..MX73..GEN,ME198411-198808

main17882-54130i2L#..LX7#198408-198808

AIR CLEANER SIDE

main17882-70080i1GGE..GX71198408-198608

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-54010i2L..LX70198609-198808

NO.2

main90460-01016i2Y..YX70198408-198808

sub90460-01055

main96111-10710i2L..LX70198609-198808

NO.1

main96111-10710i2L#..LX7#198408-198609

NO.1,NO.2

main96111-10710i5ME..MX7#198408-198808

PIPE SIDE

main96111-10800i5ME..MX7#198408-198808

AIR FLOW METER SIDE

main96111-10830i5MGE..MX73198408-198808

PIPE SIDE

main96111-10900i5MGE..MX73198408-198808

AIR FLOW METER SIDE

17883HOSE, AIR CLEANER, NO.3

main17881-37050i21R,22R..RX7#..GEN,ME198510-198808

W/PRE-CLEANER

main17882-70070i1GE..GX71198408-198411

main17882-70071i1GE..GX71198411-198808

main17883-54070i2L#..LX7#198408-198808

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01016i21R,22R..RX7#..GEN,ME198510-198808

W/PRE-CLEANER,AIR CLEANER SIDE

sub90460-01055

main96111-10710i21R,22R..RX7#..GEN,ME198510-198808

W/PRE-CLEANER,PRE-CLEANER SIDE

main96111-10800i1GE..GX71198408-198808

22250METER ASSY, INTAKE AIR FLOW

main22250-43230i5MGE..MX73..ARL198508-198808

main22250-43240i5MGE..MX73..EUR,GEN,SA198408-198808

main22250-43260i5ME..MX7#198408-198608

main22250-43270i5ME..MX73198608-198808

main22250-70110i1GE..GX71..ME198408-198508

SAUDI ARABIA SPEC

main22250-70110i1GE..GX71..RHD..GEN198408-198808

SINGAPORE SPEC

main22250-70110i1GE..GX71..ME198508-198808

main22250-70120i1GGE..GX71198408-198608

main22250-70130i1GE..GX71..GLX198408-198808

main22250-70130i1GE..GX71..ME198408-198508

EXCL/SAUDI ARABIA

22275GASKET, AIR FLOW METER

main22275-41010i1GE..GX71198408-198808

main22275-43010i5MGE..MX73198408-198808

9011906142

main90119-06142

9017906158

main90179-06158

9033911001

main90339-11001

9461210601

main94612-10601

15 parts on this diagram · 8 diagrams in section
