ENGINE OVERHAUL GASKET KIT

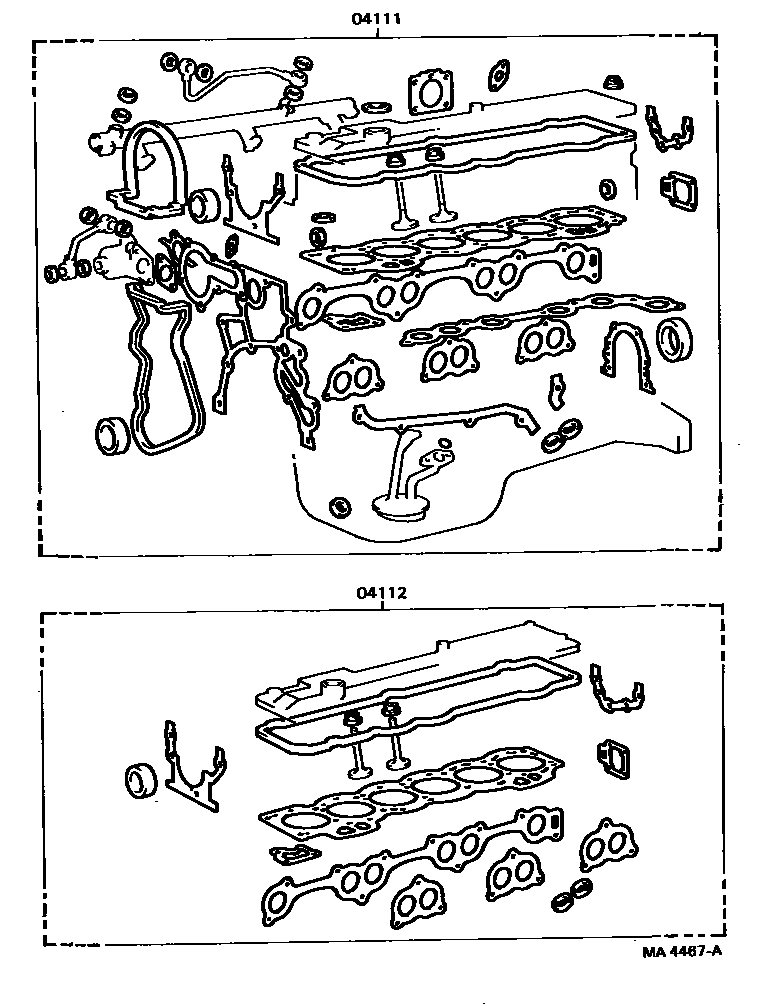

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-35050i198608-198808

main04111-35131i198608-198808

main04111-37040i198408-198411

EXCL/SAUDI ARABIA

main04111-37041i198411-198606

main04111-37042i198606-198705

main04111-37050i198508-198705

main04111-43060i198408-198808

main04111-43070i198408-198808

main04111-54041i198408-198501

main04111-54042i198501-198608

main04111-54050i198408-198501

main04111-54051i198501-198808

main04111-70013i198408-198808

main04111-70021i198408-198608

main04111-72010i198502-198508

main04111-72011i198508-198704

main04111-72012i198704-198808

04112GASKET KIT, ENGINE VALVE GRIND

main04112-35040i198608-198808

main04112-35121i198608-198808

main04112-37040i198408-198411

EXCL/SAUDI ARABIA

main04112-37041i198411-198705

main04112-37050i198408-198508

SAUDI ARABIA SPEC

main04112-43011i198408-198808

main04112-43051i198408-198808

main04112-54031i198408-198501

main04112-54032i198501-198608

main04112-54040i198408-198501

main04112-54041i198501-198808

main04112-70011i198408-198808

main04112-70020i198408-198608

main04112-72010i198502-198508

main04112-72011i198508-198704

main04112-72012i198704-198808

2 parts on this diagram · 7 diagrams in section
