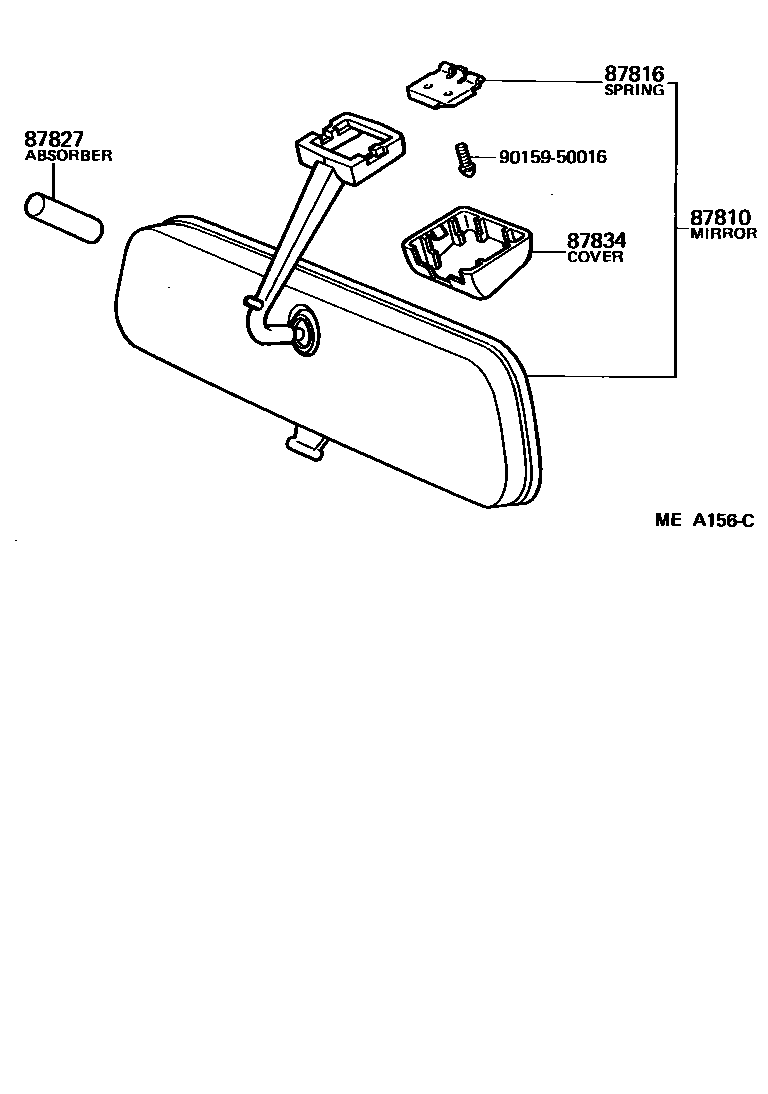

MIRROR

0001 1 0002 1 0006 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-22161-01iLX60,RX6#,TX62..EUR,ME,SA,SAA198009-198208

BLACK,BLACK,TRIM2#

main87810-22161-04iLX60,RX6#,TX62..EUR,ME,SA,SAA198009-198208

BLUE,BLUE,TRIM8#

main87810-22161-12iGX6#,LX60,MX63,RX60,TX62..EUR,SA198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main87810-22161-24iGX6#,LX60,MX63,RX60,TX62..EUR,SA198208-198403

BLUE,BLUE,TRIM8#

main87810-22161-26iLX60,RX6#,TX62..EUR,ME,SA,SAA198009-198208

DARK BROWN,BROWN,TRIM0#,4#

main87810-22161-34iGX6#,LX60,MX63,RX60,TX62..EUR,SA198403-198504

BLUE,BLUE,TRIM8#

main87810-22170-01iLX60,MX62,RX60..ARL,GEN198009-198208

BLACK,BLACK,TRIM2#

main87810-22170-02iGX60,LX60,MX62,RX60..ARL,GEN,ME198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main87810-22170-04iLX60,MX62,RX60..ARL,GEN198009-198208

BLUE,BLUE,TRIM8#

main87810-22170-06iLX60,MX62,RX60..ARL,GEN198009-198208

DARK BROWN,BROWN,TRIM0#,4#

main87810-22170-14iGX60,LX60,MX62,RX60..ARL,GEN,ME198208-198407

BLUE,BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iGX60,RX60..ME198208-198407

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main87834-20080-08iLX60,MX6#,RX6#,TX62198009-198504

IVORY,IVORY,TRIM0#,2#,3#,4#

main87834-20080-14iGX6#,LX60,MX6#,RX60198208-198504

BLUE,BLUE,TRIM8#

9015950016

main90159-50016

5 parts on this diagram · 3 diagrams in section
