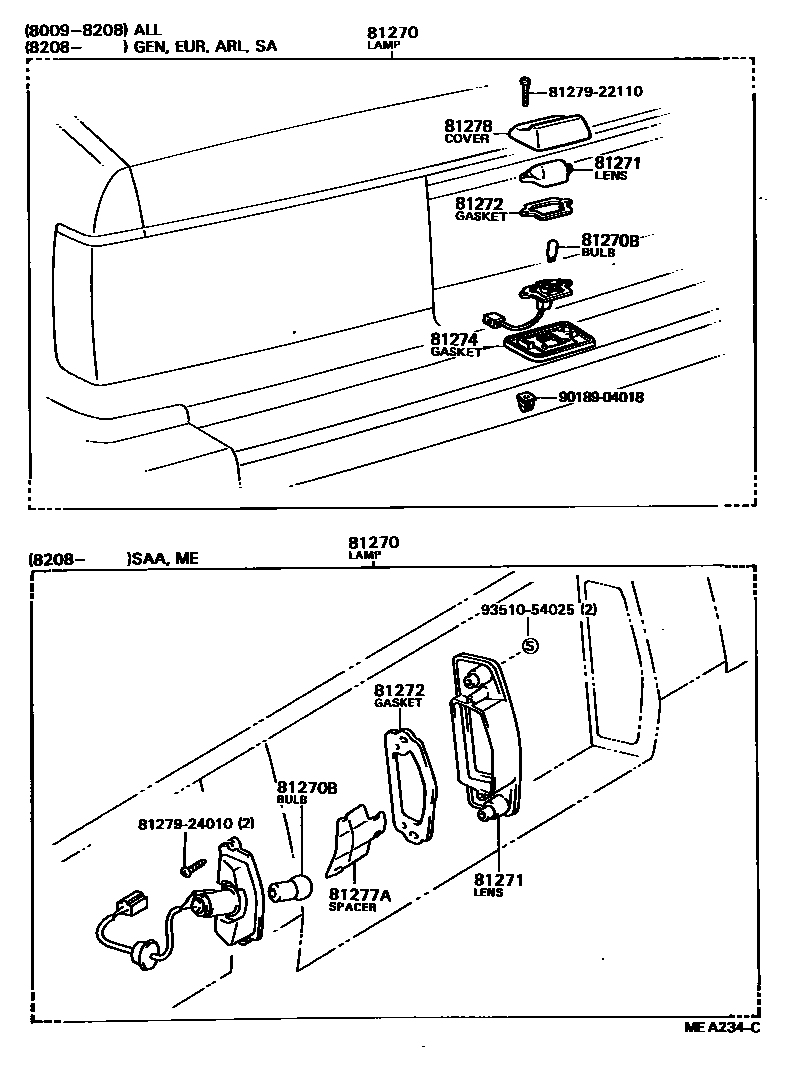

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-20210×2iGX60,RX60..SED..ME198208-198407

main81270-29535×2iTX62198209-198504

main81270-29615iLX60,MX62,RX6#..WG198009-198208

main81270-29765×2iMX63,RX60..SED..(GEN,SA);GX60,LX60,MX62..SED..(ARL,GEN)198208-198504

main81270-29775iLX60,MX62,RX60..WG198208-198504

main81270-29865×2iGX61,LX60,RX60..SED..EUR198208-198407

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iLX60,MX62,RX6#..WG198009-198504

12V 5W,12V 5W

main99132-11100×2iGX60,RX60..SED..ME198208-198407

12V 10W,12V 10W

main99132-12050×2iLX60,MX62,RX60,TX62..SED198009-198208

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-20210×2iGX60,RX60..SED..ME198208-198407

main81271-22110×2iLX60,MX62,RX60,TX62..SED198009-198208

main81271-91601×2iLX60,MX62,RX6#..WG198009-198504

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iGX60,RX60..SED..ME198208-198407

main81272-22110×2iMX63,RX60,TX62..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)198208-198504

main81272-91601×2iLX60,MX62,RX6#..WG198009-198504

81274GASKET, LICENSE PLATE LAMP BODY

main81274-22110×2iTX62198209-198504

main81274-22150×2iMX63,RX60..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)198208-198504

81277ASPACER, LICENSE PLATE LAMP GASKET, B

main81277-20210×2iGX60,RX60..SED..ME198208-198407

81278COVER, LICENSE PLATE LAMP

main81276-10101×2iMX63,RX60..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)198208-198504

main81276-22110×2iLX60,MX62,RX60,TX62..SED198009-198208

8127922110WASHER, SIDE TURN SIGNAL LAMP

main81279-22110

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

9018904018

main90189-04018

9351054025

main93510-54025

11 parts on this diagram · 2 diagrams in section
