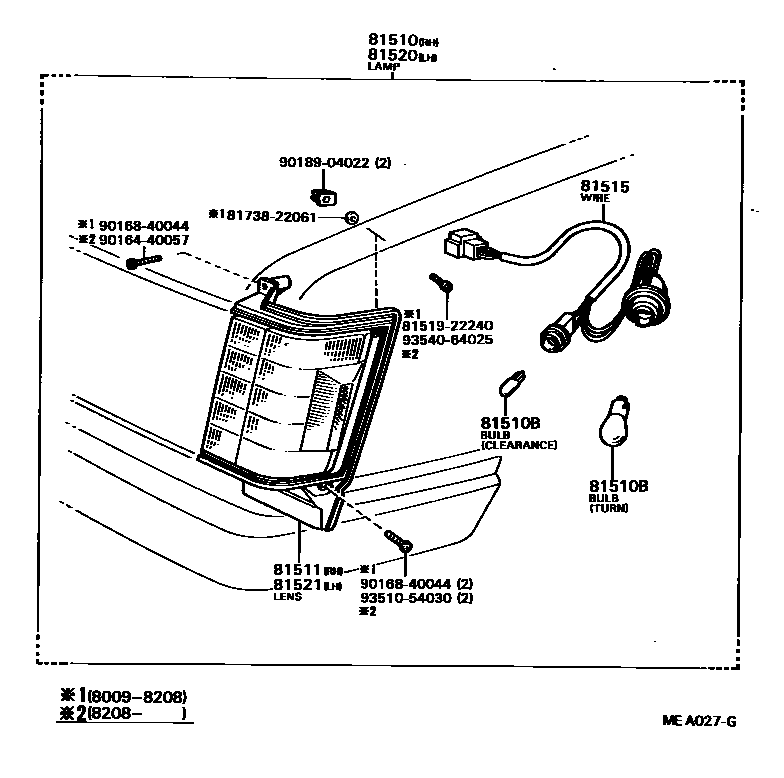

FRONT TURN SIGNAL LAMP

0001 1 0003 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29665iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198208

main81510-29675iLX60,RX6#,TX62..EUR,SA198009-198208

main81510-29676iGX61,LX60..RHD198208-198407

main81510-29705iGX60,RX60..ME198308-198407

main81510-29875iGX61,LX60,RX60..LHD..EUR198208-198407

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iGX6#,LX60,MX62,RX60,TX62198208-198308

12V 21W,12V 21W(TURN)

main99132-11230×2iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198208

12V 23W,12V 23W(TURN)

main99132-12050×2iGX6#,LX60,MX62,RX6#,TX62198009-198308

12V 5W,12V 5W(CLEARANCE)

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22220iGX60,RX60..ME198308-198407

main81511-22240iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198208

main81511-22250iLX60,RX6#,TX62..EUR,SA198009-198208

main81511-22251iGX6#,LX60,MX62,RX60,TX62198208-198308

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-22240×2iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198208

main81515-22250×2iLX60,RX6#,TX62..EUR,SA198009-198208

main81515-22251iGX61,LX60..RHD198208-198407

main81515-22270iGX61,LX60,RX60..LHD..EUR198208-198407

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29665iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198208

main81520-29675iLX60,RX6#,TX62..EUR,SA198009-198208

main81520-29676iGX60,LX60,MX6#,RX60,TX62..ARL,GEN,SA198308-198504

main81520-29695iGX60,RX60..ME198308-198407

main81520-29865iGX61,LX60,RX60..LHD..EUR198208-198407

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22220iGX60,RX60..ME198308-198407

main81521-22240iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198208

main81521-22250iLX60,RX6#,TX62..EUR,SA198009-198208

main81521-22251iGX6#,LX60,MX62,RX60,TX62198208-198308

8151922240BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-22240

8173822061

main81738-22061

9016440057

main90164-40057

9016840044

main90168-40044

9018904022

main90189-04022

9351054030

main93510-54030

9354064025

main93540-64025

13 parts on this diagram · 2 diagrams in section
