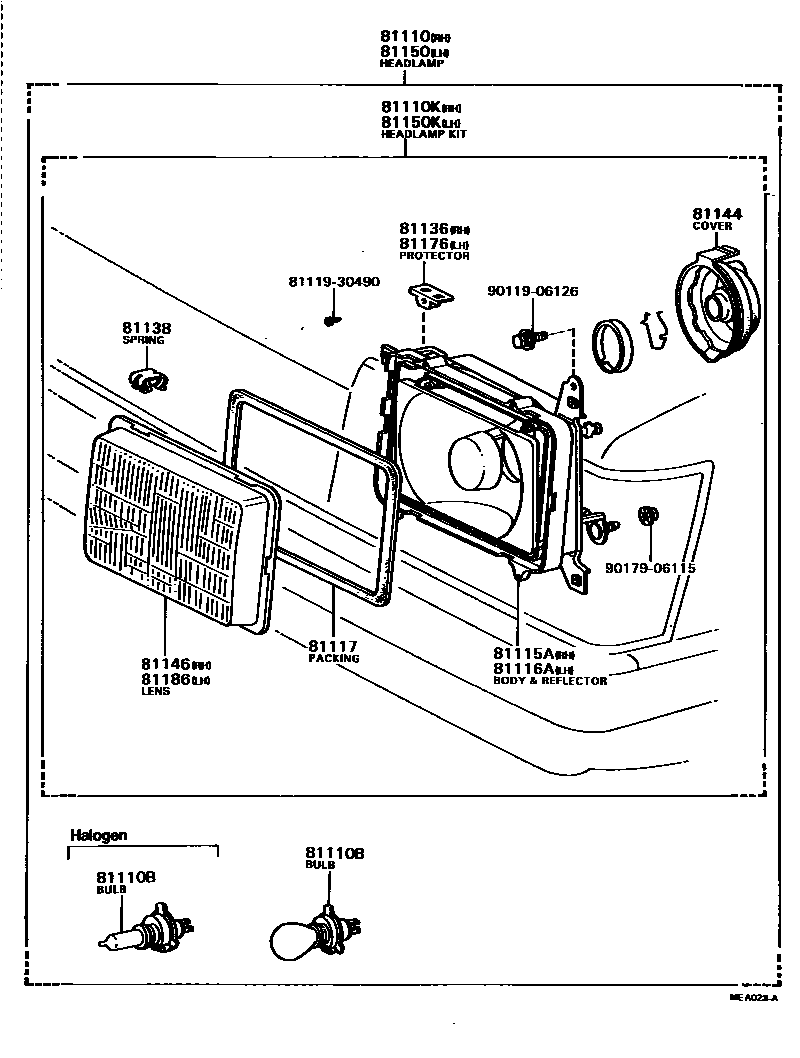

HEADLAMP

0001 1 0002 1 0003 1

81110HEADLAMP ASSY, RH

main81110-80095iLX60,RX60..RHD..GEN198009-198208

main81110-80097iLX60,RX60..LHD..(DLX,STD)..EUG; LX60,RX60..LHD..(GEN,ME,SAA)198009-198208

main81110-80098iLX60,RX60..LHD198009-198208

WHITE,HALOGEN

main81110-80099iLX60..LHD;RX60..SED..LHD..GEN;RX60..SED..LHD..EUG;RX60..WG..LHD..(EUR,GEN)198009-198208

YELLOW,HALOGEN

main81110-80100iLX60,MX62,RX6#,TX62..RHD198009-198208

WHITE,HALOGEN

main81110-80234iGX6#,LX60,RX60..LHD198208-198308

WHITE,HALOGEN

main81110-80235iGX60,LX60,RX60..LHD..GEN198208-198407

YELLOW,HALOGEN

main81110-80236iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

HALOGEN

main81110-80346iGX60,RX60..ME198308-198407

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iLX60,RX60..LHD..(DLX,STD)..EUG; LX60,RX60..LHD..(GEN,ME,SAA)198009-198208

12V 45/40W,WHITE,12V 45/40W

main90981-13015×2iGX6#,LX60,MX62,RX6#,TX62198009-198308

12V 60/55W,*HAL *WH,12V 60/55W,WHITE,HALOGEN

main90981-13016×2iGX60,LX60,RX60..LHD..GEN198208-198407

12V 60/55W,*HAL *YE,12V 60/55W,YELLOW,HALOGEN

main90981-13022×2iLX60,RX60..RHD..GEN198009-198208

12V 65/60W,WHITE,12V 65/60W

81110KHEADLAMP KIT, W/O SEALED BEAM, RH

main04817-22030iLX60,RX60..LHD198010-198208

main04817-22040iLX60,MX62,RX6#,TX62..RHD198010-198208

main04817-22050iGX6#,LX60,RX60..LHD198208-198308

main04817-22060iGX60,LX60,RX60..LHD..GEN198308-198407

BAHAMA SPEC

main04817-22080iGX60,RX60..ME198308-198407

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81115-22360iLX60,RX60..RHD..GEN198009-198208

main81115-22380iLX60,RX60..LHD..(DLX,STD)..EUG; LX60,RX60..LHD..(GEN,ME,SAA)198009-198208

main81115-22390iLX60,RX60..LHD198009-198208

HALOGEN

main81115-22410iLX60,MX62,RX6#,TX62..RHD198009-198208

WHITE,HALOGEN

main81135-22341iGX6#,LX60,RX60..LHD198208-198308

main81135-22371iGX60,LX60,RX60..LHD..GEN198308-198407

BAHAMA SPEC

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81116-22360iLX60,RX60..RHD..GEN198009-198208

main81116-22380iLX60,RX60..LHD..(DLX,STD)..EUG; LX60,RX60..LHD..(GEN,ME,SAA)198009-198208

main81116-22390iLX60,RX60..LHD198009-198208

HALOGEN

main81116-22410iLX60,MX62,RX6#,TX62..RHD198009-198208

WHITE,HALOGEN

main81175-22341iGX6#,LX60,RX60..LHD198208-198308

main81175-22371iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

81117PACKING, HEADLAMP HOUSING

main81147-30490×2iLX60,MX62,RX6#,TX62198009-198208

main81147-32020×2iGX6#,LX60,MX62,RX60,TX62198208-198308

81136PROTECTOR, HEADLAMP, NO.1 RH

main81136-22370×2iLX60,MX62,RX6#,TX62198009-198208

81138SPRING, HEADLAMP

main81138-20550×12iGX6#,LX60,MX6#,RX60,TX62..ARL,EUR,GEN,SA198308-198504

81144COVER, HEADLAMP, NO.1

main81139-30481×2iGX6#,LX60,MX62,RX60,TX62198208-198308

main81139-30490×2iLX60,MX62,RX6#,TX62198009-198208

81146LENS, HEADLAMP, RH

main81146-14221iLX60,RX60..LHD..(DLX,STD)..EUG; LX60,RX60..LHD..(GEN,ME,SAA)198009-198208

main81146-14461iLX60,RX60..LHD198009-198208

HALOGEN

main81146-14471iLX60,MX62,RX6#,TX62..RHD198009-198208

WHITE,HALOGEN

main81146-22341iGX6#,LX60,RX60..LHD..(EUR,GEN)198308-198407

main81146-22371iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

main81146-30490iLX60,RX60..RHD..GEN198009-198208

81150HEADLAMP ASSY, LH

main81150-80092iLX60,RX60..RHD..GEN198009-198208

main81150-80094iLX60,RX60..LHD..(DLX,STD)..EUG; LX60,RX60..LHD..(GEN,ME,SAA)198009-198208

main81150-80095iLX60,RX60..LHD198009-198208

WHITE,HALOGEN

main81150-80096iLX60..LHD;RX60..SED..LHD..GEN;RX60..SED..LHD..EUG;RX60..WG..LHD..(EUR,GEN)198009-198208

YELLOW,HALOGEN

main81150-80097iLX60,MX62,RX6#,TX62..RHD198009-198208

WHITE,HALOGEN

main81150-80231iGX6#,LX60,RX60..LHD198208-198308

WHITE,HALOGEN

main81150-80232iGX60,LX60,RX60..LHD..GEN198208-198407

YELLOW,HALOGEN

main81150-80233iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

HALOGEN

main81150-80343iGX60,RX60..ME198308-198407

81150KHEADLAMP KIT, W/O SEALED BEAM, LH

main04818-22030iLX60,RX60..LHD198010-198208

main04818-22040iLX60,MX62,RX6#,TX62..RHD198010-198208

main04818-22050iGX6#,LX60,RX60..LHD..(EUR,GEN)198308-198407

main04818-22060iGX60,LX60,RX60..LHD..GEN198308-198407

BAHAMA SPEC

main04818-22080iGX60,RX60..ME198308-198407

81176PROTECTOR, HEADLAMP, NO.1 LH

main81136-22370×2iLX60,MX62,RX6#,TX62198009-198208

81186LENS, HEADLAMP, LH

main81186-14221iLX60,RX60..LHD..(DLX,STD)..EUG; LX60,RX60..LHD..(GEN,ME,SAA)198009-198208

main81186-14461iLX60,RX60..LHD198009-198208

HALOGEN

main81186-14471iLX60,MX62,RX6#,TX62..RHD198009-198208

WHITE,HALOGEN

main81186-22341iGX6#,LX60,RX60..LHD198208-198308

main81186-22371iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

main81186-30600iLX60,RX60..RHD..GEN198009-198208

8111930490SCREW, HEADLAMP

main81119-30490

9011906126

main90119-06126

9017906115

main90179-06115

17 parts on this diagram · 3 diagrams in section
