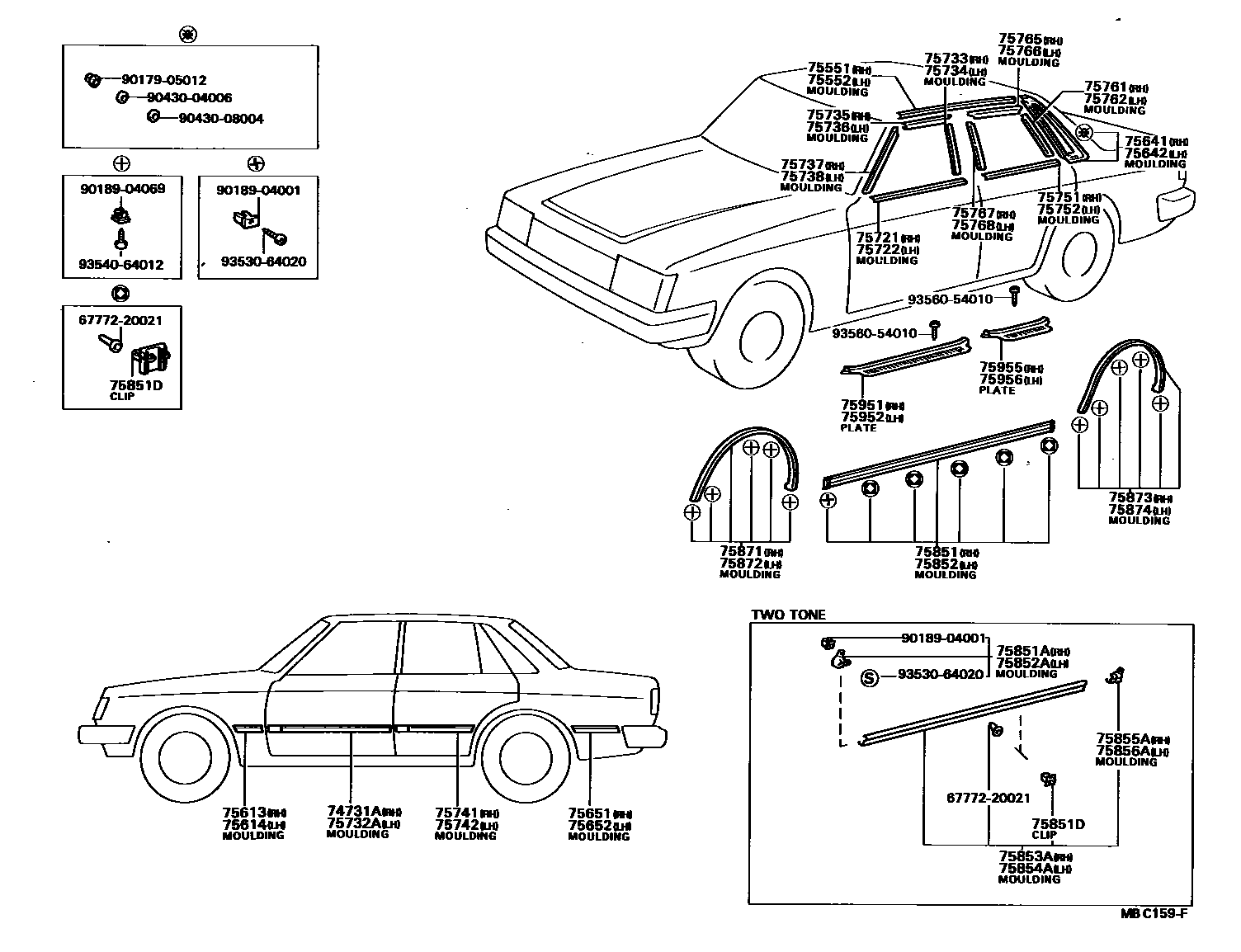

SIDE MOULDING

0001 1 0002 1

74731APIPE, HAND GRIP, NO.1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-22070iLX60,MX62,RX60,TX62..SED198009-198110

main75551-22071iRX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198110-198301

main75551-22072iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198301-198504

main75551-91606iLX60,MX62,RX6#..WG198009-198210

main75551-91607iLX60,MX62,RX60..WG198210-198504

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-22070iLX60,MX62,RX60,TX62..SED198009-198110

main75552-22071iRX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198110-198301

main75552-22072iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198301-198504

main75552-91605iLX60,MX62,RX6#..WG198009-198210

main75552-91606iLX60,MX62,RX60..WG198210-198504

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-22020iLX60,MX62,RX6#198009-198108

main75611-22030-01iRX60..SED..LHD..(GEN,ME)198108-198208

W/METAL,BLACK,BLACK

main75611-22030-06iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BROWN,BROWN

main75611-22030-14iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BLUE,BLUE

main75611-22090iGX60,LX60,RX60..SED..GEN198208-198308

W/METAL

main75611-22090-01iGX60,MX63..SA198308-198504

BLACK,BLACK

main75611-22090-06iGX60,LX60,RX60..SED..(GEN,ME)198308-198407

W/METAL,BROWN,BROWN

main75611-22100-01iLX60,MX62,RX60..WG198208-198504

BLACK,BLACK

main75611-22100-02iGX60,RX60..GL..(GEN,ME)198208-198308

MAROON,RED/MAROON

main75611-22100-06iGX60,RX60..GL..(GEN,ME)198308-198407

BROWN,BROWN

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-22020iLX60,MX62,RX6#198009-198108

main75612-22030-01iRX60..SED..LHD..(GEN,ME)198108-198208

W/METAL,BLACK,BLACK

main75612-22030-06iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BROWN,BROWN

main75612-22030-14iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BLUE,BLUE

main75612-22090iGX60,LX60,RX60..SED..GEN198208-198308

W/METAL

main75612-22090-01iGX60,MX63..SA198312-198504

BLACK,BLACK

main75612-22090-06iGX60,LX60,RX60..SED..(GEN,ME)198308-198407

W/METAL,BROWN,BROWN

main75612-22100-01iRX60..SED..SA198308-198504

BLACK,BLACK

main75612-22100-02iGX60,RX60..GL..(GEN,ME)198208-198308

MAROON,RED/MAROON

main75612-22100-06iGX60,RX60..GL..(GEN,ME)198308-198407

BROWN,BROWN

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main68153-29015iLX60,MX62,RX60,TX62..SED198009-198108

main68153-29016iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198108-198504

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main68154-29015iLX60,MX62,RX60,TX62..SED198009-198108

main68154-29016iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198108-198504

75651MOULDING, QUARTER, OUTSIDE RH

main75651-22060iLX60,MX62,RX60..SED198009-198108

main75651-22070-01iRX60..SED..LHD..(GEN,ME)198108-198208

W/METAL,BLACK,BLACK

main75651-22070-06iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BROWN,BROWN

main75651-22070-14iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BLUE,BLUE

main75651-22120-01iGX60,RX60..SED..ME198208-198407

BLACK,BLACK

main75651-22120-02iGX60,RX60..GL..ME198208-198308

MAROON,RED/MAROON

main75651-22120-06iGX60,RX60..GL..ME198308-198407

BROWN,BROWN

main75651-22140-01iGX60,RX60..SED..ME198308-198407

W/METAL,BLACK,BLACK

main75651-91607iLX60,MX62,RX60..WG..DLX198009-198208

W/URETHANE

main75651-91608iLX60,RX6#..WG..(EUR,GEN,SA)198009-198208

main75651-91614iLX60,MX62,RX60..WG198208-198504

75652MOULDING, QUARTER, OUTSIDE LH

main75652-22060iLX60,MX62,RX60..SED..(ARL,EUR,GEN,SA)198108-198208

main75652-22070-01iRX60..SED..LHD..(GEN,ME)198108-198208

W/METAL,BLACK,BLACK

main75652-22070-06iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BROWN,BROWN

main75652-22070-14iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BLUE,BLUE

main75652-22120-01iGX60,RX60..SED..ME198208-198407

BLACK,BLACK

main75652-22120-02iGX60,RX60..GL..ME198208-198308

MAROON,RED/MAROON

main75652-22120-06iGX60,RX60..GL..ME198308-198407

BROWN,BROWN

main75652-22140-01iGX60,RX60..SED..ME198308-198407

W/METAL,BLACK,BLACK

main75652-91607iLX60,MX62,RX60..WG..DLX198009-198208

W/URETHANE

main75652-91608iLX60,RX6#..WG..(EUR,GEN,SA)198009-198208

main75652-91614iLX60,MX62,RX60..WG198208-198504

75721MOULDING, FRONT DOOR BELT, RH

main75710-22040iLX60,MX62,RX6#,TX62198009-198208

main75710-22041iGX6#,LX60,MX6#,RX60,TX62198208-198504

75722MOULDING, FRONT DOOR BELT, LH

main75720-22040iLX60,MX62,RX6#,TX62198009-198208

main75720-22041iGX6#,LX60,MX6#,RX60,TX62198208-198504

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-22090iLX60,MX62,RX6#..WG; LX60,MX62,RX60..SED..(ARL,EUR,GEN,SA)198108-198208

LH

main75732-22101-01iRX60..LHD..GL..(GEN,ME)198108-198208

LH,W/METAL,BLACK,BLACK

main75732-22101-06iRX60..LHD..GL..(GEN,ME)198108-198208

LH,W/METAL,BROWN,BROWN

main75732-22101-14iRX60..LHD..GL..(GEN,ME)198108-198208

LH,W/METAL,BLUE,BLUE

main75732-22200iGX60,LX60,RX60..SED..GEN198208-198308

LH,W/METAL

main75732-22200-01iGX60,LX60,RX60..SED..(GEN,ME)198308-198407

LH,W/METAL,BLACK,BLACK

main75732-22210-01iRX60..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198308

LH,BLACK,BLACK

main75732-22210-02iGX60,RX60..GL..(GEN,ME)198208-198308

LH,MAROON,RED/MAROON

main75732-22210-06iGX60,RX60..GL..(GEN,ME)198308-198407

LH,BROWN,BROWN

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-22030iGX60,MX62,RX60..ARL,GEN,ME,SA198208-198308

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-22030iLX60,RX6#..(DLX,GL,SXL,XL)..(GEN,ME,SA,SAA); LX60,RX60..LHD..(DLX,GL)..EUG198009-198208

75735MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-22030iMX62198009-198108

75736MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-22010iMX62..GL198108-198208

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-22050iLX60,RX6#..(DLX,GL,SXL,XL)..(GEN,ME,SA,SAA); LX60,RX60..LHD..(DLX,GL)..EUG198009-198208

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-22050iMX62198009-198108

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-22070iLX60,MX62,RX6#198009-198108

main75741-22081-01iRX60..SED..LHD..(GEN,ME)198108-198208

W/METAL,BLACK,BLACK

main75741-22081-06iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BROWN,BROWN

main75741-22081-14iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BLUE,BLUE

main75741-22180iGX60,LX60,RX60..SED..GEN198208-198308

W/METAL

main75741-22180-01iGX60,LX60,RX60..SED..(GEN,ME)198308-198407

W/METAL,BLACK,BLACK

main75741-22190-01iRX60..SA198308-198504

BLACK,BLACK

main75741-22190-02iGX60,RX60..GL..(GEN,ME)198208-198308

MAROON,RED/MAROON

main75741-22190-06iGX60,RX60..GL..(GEN,ME)198308-198407

BROWN,BROWN

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-22060iLX60,MX62,RX60..SED..(ARL,EUR,GEN,SA)198108-198208

main75742-22071-01iRX60..SED..LHD..(GEN,ME)198108-198208

W/METAL,BLACK,BLACK

main75742-22071-06iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BROWN,BROWN

main75742-22071-14iRX60..LHD..GL..(GEN,ME)198108-198208

W/METAL,BLUE,BLUE

main75742-22170iGX60,LX60,RX60..SED..GEN198208-198308

W/METAL

main75742-22170-01iGX60,MX63..SA198308-198504

BLACK,BLACK

main75742-22180-01iGX6#,LX60,MX62,RX60..ARL,EUR,GEN,ME198308-198407

BLACK,BLACK

main75742-22180-02iGX60,RX60..GL..(GEN,ME)198208-198308

MAROON,RED/MAROON

main75742-22180-06iGX60,RX60..GL..(GEN,ME)198308-198407

BROWN,BROWN

75751MOULDING, REAR DOOR BELT, RH

main75730-22050iGX6#,LX60,MX6#,RX6#,TX62198009-198504

75752MOULDING, REAR DOOR BELT, LH

main75740-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-22040iMX63,RX60..SED..(GEN,ME,SA);GX60,MX62..SED..(ARL,GEN,ME)198208-198504

main75765-91607iRX60..WG..LHD;RX60..WG..RHD..GEN;LX60,RX62..WG..(DLX,XL)198108-198208

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-22050iMX63,RX60..SED..(GEN,ME,SA);GX60,MX62..SED..(ARL,GEN,ME)198208-198504

main75766-91604iRX60..WG..LHD;RX60..WG..RHD..GEN;LX60,RX62..WG..(DLX,XL)198108-198208

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-22030iMX63,RX60..SED..(GEN,ME,SA);GX60,MX62..SED..(ARL,GEN,ME)198208-198504

main75763-91607iRX60..WG..LHD;RX60..WG..RHD..GEN;LX60,MX62,RX62..WG..(DLX,XL)198009-198108

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-22030iMX63,RX60..SED..(GEN,ME,SA);GX60,MX62..SED..(ARL,GEN,ME)198208-198504

main75764-91607iRX60..WG..LHD;RX60..WG..RHD..GEN;LX60,RX62..WG..(DLX,XL)198108-198208

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-22060iRX60..WG..LHD;RX60..WG..RHD..GEN;LX60,MX62,RX62..WG..(DLX,XL)198009-198108

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-22060iGX60,MX6#;RX60..WG..SA;RX60..WG..LHD..(GEN,ME);LX60,RX60..SED..(GEN,ME,SA)198302-198504

75851MOULDING, ROCKER PANEL, RH

main75850-29085iGX6#,LX60,MX6#,RX6#,TX62198009-198504

75851AMOULDING, ROCKER PANEL, FRONT RH

main75851-29035iRX60..LHD..GL..(GEN,ME)198108-198208

TWO TONE

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-22030×10iGX6#,LX60,MX6#,RX6#,TX62198009-198504

main75867-22040×10iRX60..LHD..GL..(GEN,ME)198108-198208

TWO TONE

75852MOULDING, ROCKER PANEL, LH

main75860-29085iGX6#,LX60,MX6#,RX6#,TX62198009-198504

75852AMOULDING, ROCKER PANEL, FRONT LH

main75852-29025iRX60..LHD..GL..(GEN,ME)198108-198208

TWO TONE

75853AMOULDING, ROCKER PANEL, CENTER RH

main75853-29016iGX60,RX60..GL..(GEN,ME)198208-198407

TWO TONE

75854AMOULDING, ROCKER PANEL, CENTER LH

main75854-29016iRX60..LHD..GL..(GEN,ME)198108-198208

TWO TONE

75855AMOULDING, ROCKER PANEL, REAR RH

main75855-22010iRX60..LHD..GL..(GEN,ME)198108-198208

TWO TONE

75856AMOULDING, ROCKER PANEL, REAR LH

main75856-22010iRX60..LHD..GL..(GEN,ME)198108-198208

TWO TONE

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-29055iRX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;LX60,MX62,RX62..DLX,GL,XL;RX60..SED..LHD..(GEN,ME,SAA)198009-198108

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-29055iLX60,RX6#..WG..(DLX,XL); RX60..SED..RHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME);LX60,MX62..SED..(DLX,GL)198108-198208

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-29065iMX63,RX60..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

main75087-29075iLX60,RX6#..WG..(DLX,XL)198108-198208

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-29065iRX60..SED..RHD;RX60..SED..LHD..EUG;LX60,MX62..SED..(DLX,GL);RX60..SED..LHD..(GEN,ME,SAA)198009-198208

main75088-29075iLX60,RX6#..WG..(DLX,XL)198108-198208

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-22050-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main67913-22050-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67913-22050-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main67913-22050-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

DARK BROWN,BROWN,TRIM0#,4#

main67913-22050-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-22050-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main67913-22050-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67913-22050-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main67913-22050-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

DARK BROWN,BROWN,TRIM0#,4#

main67913-22050-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-22050-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main67917-22050-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67917-22050-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main67917-22050-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

DARK BROWN,BROWN,TRIM0#,4#

main67917-22050-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-22050-01iRX60,TX62..SA198009-198208

BLACK,BLACK,TRIM2#

main67918-22050-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67918-22050-04iRX60,TX62..SA198009-198208

BLUE,BLUE,TRIM8#

main67918-22050-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

DARK BROWN,BROWN,TRIM0#,4#

main67918-22050-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9017905012

main90179-05012

9018904001

main90189-04001

9018904069

main90189-04069

9043004006

main90430-04006

9043008004

main90430-08004

9353064020

main93530-64020

9354064012

main93540-64012

9356054010

main93560-54010

54 parts on this diagram · 2 diagrams in section
