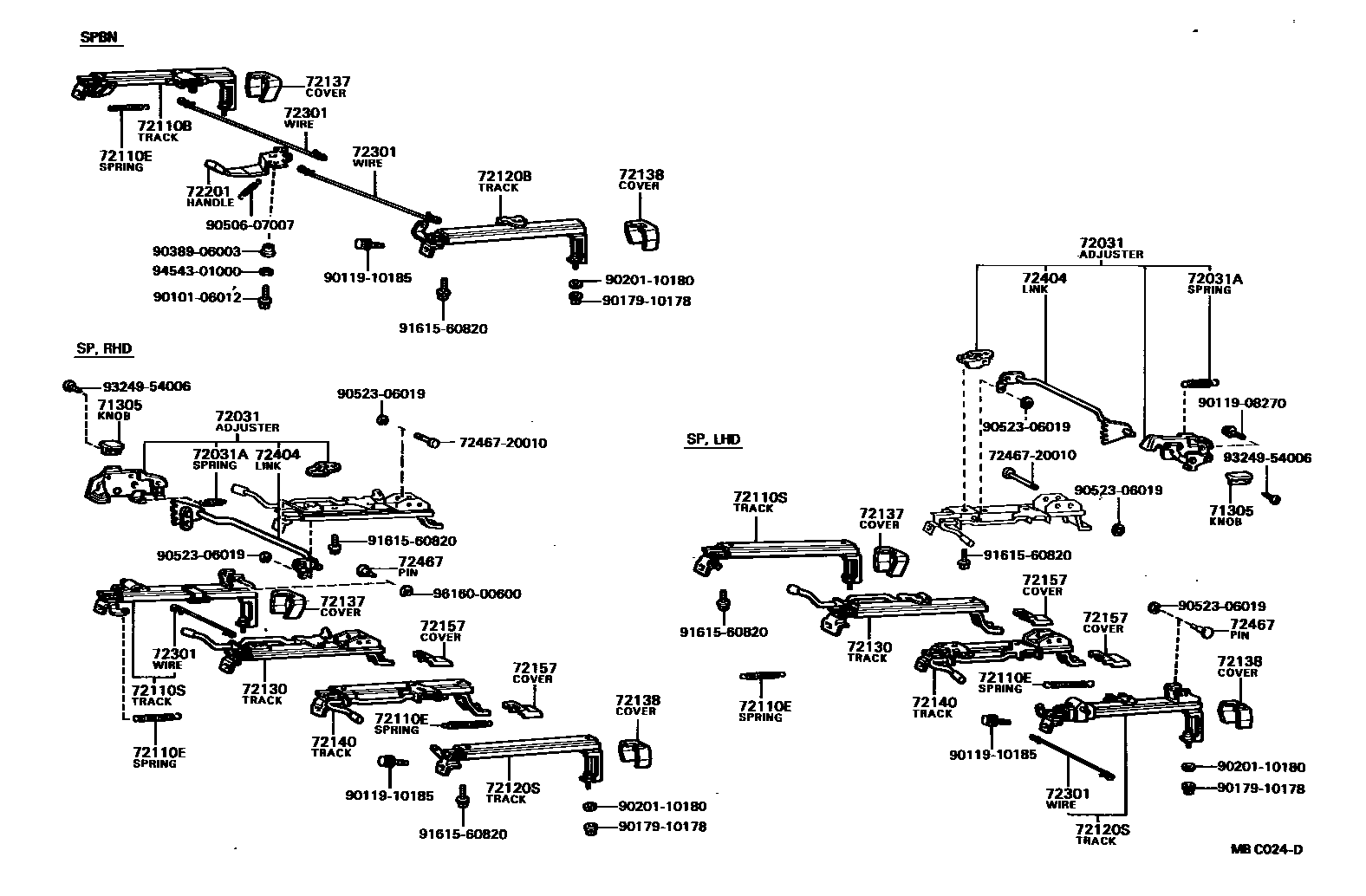

SEAT TRUCK
71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM0#,4#
BLUE,BLUE,TRIM8#
main72457-14020-01iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..LHD..GL198009-198208
BLACK,BLACK,TRIM2#
main72457-14020-04iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..LHD..GL198009-198208
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
main72457-14020-26iGX6#,RX60..LHD..GL; LX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,4FC,5F)..DLX..(EUR,GEN)198009-198407
DARK BROWN,BROWN,TRIM0#,4#; DARK BROWN,BROWN,TRIM4#
72031ADJUSTER ASSY, FRONT SEAT VERTICAL
main72310-22040iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..LHD..GL198009-198109
main72310-22070iGX6#,RX60..LHD..GL; LX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,4FC,5F)..DLX..(EUR,GEN)198109-198407
72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)
main90506-18025iLX60..DLX;LX60..STD..EUG;MX62,RX6#,TX62..(DLX,STD,XL)..(ARL,EUR,GEN,SA); MX62,RX60..GL,SXL198009-198109
main90506-22001iLX60..DLX;LX60..STD..EUG;MX62,RX6#,TX62..(DLX,STD,XL)..(ARL,EUR,GEN,SA)198109-198208
72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
main72110-22230iLX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198009-198208
VERTICAL
W/VERTICAL
main72110-22310iGX60,RX60..LHD..GL..(GEN,ME); LX60,TX62..GEN,SA;RX60..(3FC,4F,4FC)..DLX..(GEN,ME)198208-198407
72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
main72120-22210iLX60,MX62,RX6#,TX62..RHD..(3FC,4F,4FC,5F); LX60..LHD..STD;LX60,RX60..LHD..(3FC,4F,4FC,5F)..DLX..(GEN,ME)198009-198208
main72120-22220iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..LHD..GL198009-198208
VERTICAL
VERTICAL
72130TRACK ASSY, RH SEAT, INNER
main72130-22120iLX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198009-198208
VERTICAL
W/VERTICAL
72137COVER, SEAT TRACK, OUTER RH
BLACK,BLACK,TRIM2#; VERTICAL,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#; VERTICAL,BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM0#,4#; VERTICAL,DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#; VERTICAL,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#; VERTICAL,BLUE,BLUE,TRIM8#
main72137-22012-06iRX60..WG..RHD..(EUR,SA);GX6#,MX6#,RX62,TX62..RHD;LX60,RX60..SED..RHD..(DLX,GL,SXL,XL)198207-198504
VERTICAL,DARK BROWN,BROWN,TRIM0#,4#
DEEP MAROON,RED/MAROON,TRIM3#
W/VERTICAL,BLUE,BLUE,TRIM8#
main72137-22020-01iLX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198009-198207
BLACK,BLACK,TRIM2#
main72137-22020-04iLX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198009-198207
BLUE,BLUE,TRIM8#
main72137-22020-06iLX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198009-198207
DARK BROWN,BROWN,TRIM0#,4#
main72137-22021-01iLX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198207-198208
BLACK,BLACK,TRIM2#
main72137-22021-04iLX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198207-198208
BLUE,BLUE,TRIM8#
main72137-22021-06iGX6#,LX60,RX60..LHD..(3FC,4F,4FC,5F); LX60,RX60..RHD..(3FC,4F,4FC,5F)..DLX..GEN198207-198209
DARK BROWN,BROWN,TRIM0#,4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
72138COVER, SEAT TRACK, OUTER LH
main72138-22011-01iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..3H,4H; RX60..LHD..GL198009-198207
BLACK,BLACK,TRIM2#; VERTICAL BLACK,BLACK,TRIM2#; VERTICAL,BLACK,BLACK,TRIM2#
main72138-22011-04iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..3H,4H; RX60..LHD..GL198009-198207
BLUE,BLUE,TRIM8#; VERTICAL BLUE,BLUE,TRIM8#; VERTICAL,BLUE,BLUE,TRIM8#
main72138-22011-06iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..3H,4H; RX60..LHD..GL198009-198207
DARK BROWN,BROWN,TRIM0#,4#; VERTICAL,DARK BROWN,BROWN,TRIM0#,4#; VERTICAL,DARK BROWN,BROWN,TRIM4#
main72138-22012-01iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..3H,4H; RX60..LHD..GL198207-198208
BLACK,BLACK,TRIM2#; VERTICAL BLACK,BLACK,TRIM2#; VERTICAL,BLACK,BLACK,TRIM2#
main72138-22012-04iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..3H,4H; RX60..LHD..GL198207-198208
BLUE,BLUE,TRIM8#; VERTICAL BLUE,BLUE,TRIM8#; VERTICAL,BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM0#,4#; VERTICAL,DARK BROWN,BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#; VERTICAL,DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#; VERTICAL BLUE,BLUE,TRIM8#
main72138-22020-01iLX60,MX62,RX6#,TX62..RHD..(3FC,4F,4FC,5F); LX60..LHD..STD;LX60,RX60..LHD..(3FC,4F,4FC,5F)..DLX..(GEN,ME)198009-198208
BLACK,BLACK,TRIM2#
main72138-22020-04iLX60,MX62,RX6#,TX62..RHD..(3FC,4F,4FC,5F); LX60..LHD..STD;LX60,RX60..LHD..(3FC,4F,4FC,5F)..DLX..(GEN,ME)198009-198208
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM0#,4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
72140TRACK ASSY, LH SEAT, INNER
main72140-22090iLX60,MX62,RX6#,TX62..RHD..(3FC,4F,4FC,5F); LX60..LHD..STD;LX60,RX60..LHD..(3FC,4F,4FC,5F)..DLX..(GEN,ME)198009-198208
main72140-22110iLX60..LHD..EUG;LX60..LHD..DLX..GEN;RX60..LHD..(3FC,4F,5F)..DLX..(EUR,GEN); RX60..LHD..GL198009-198208
VERTICAL
VERTICAL
72157COVER, SEAT TRACK BRACKET, INNER
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM0#,4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
72201HANDLE SUB-ASSY, SEAT TRACK
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-22070iLX60..DLX;LX60..STD..EUG;MX62,RX6#,TX62..(DLX,STD,XL)..(ARL,EUR,GEN,SA); MX62,RX60..GL,SXL198009-198208
W/VERTICAL
72404LINK SUB-ASSY, VERTICAL SEAT
main72404-20021iGX6#,RX60..LHD..GL; LX60..SED..STD..EUG;LX60,RX60..LHD..(3FC,4F,4FC,5F)..DLX..(EUR,GEN)198009-198407
72467PIN, VERTICAL ADJUSTER
main72467-20010×2iLX60;RX60..WG..SA;RX60..WG..LHD..(EUR,GEN);RX60..SED..DLX..(EUR,GEN,SA)198208-198504
7246720010PIN, VERTICAL ADJUSTER
main72467-20010
9010106012
main90101-06012
9011908270
main90119-08270
9011910185
main90119-10185
9017910178
main90179-10178
9020110180
main90201-10180
9038906003
main90389-06003
9050607007
main90506-07007
9052306019
main90523-06019
9161560820
main91615-60820
9324954006
main93249-54006
9454301000
main94543-01000
9616000600
main96160-00600
30 parts on this diagram · 1 diagram in section
