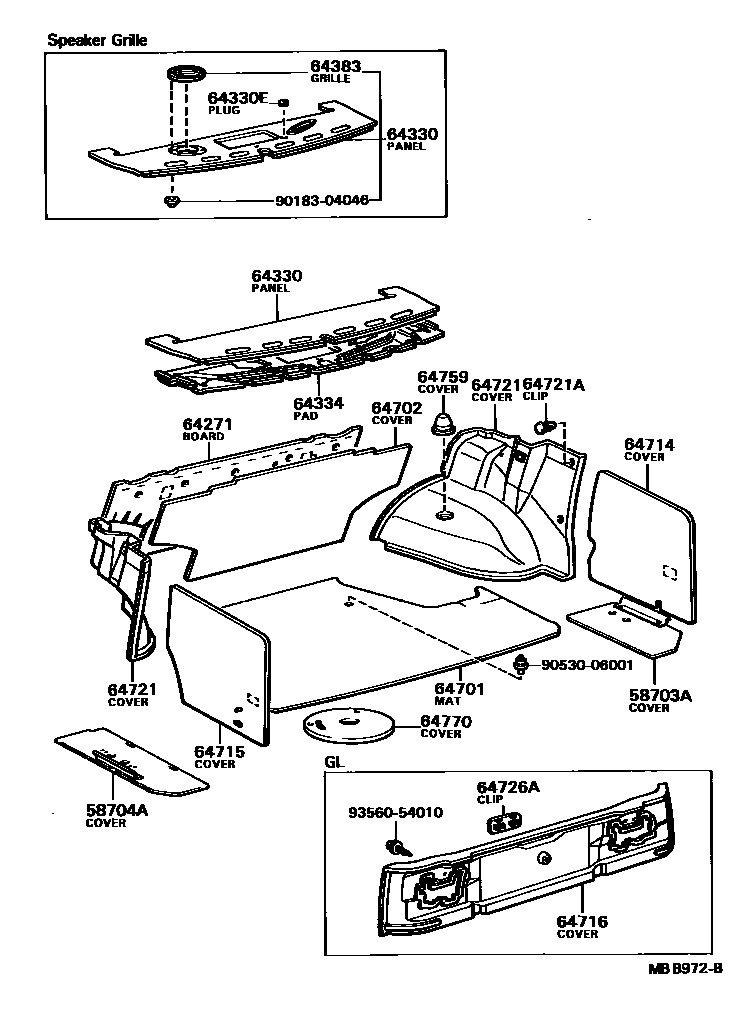

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22040iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-22020iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

64271BOARD, ROOM PARTITION, NO.1

main64271-22060iLX60,TX62..SED..STD198009-198504

main64271-22070iMX63,RX60..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME)198009-198504

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-22260-01iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198208

BLACK,BLACK,TRIM2#

main64330-22260-02iLX60,RX60,TX62..SED..(DLX,STD)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main64330-22260-04iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198208

BLUE,BLUE,TRIM8#

main64330-22260-06iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198504

D-BROWN,BROWN,TRIM0#,4#

main64330-22260-14iLX60,RX60,TX62..SED..(DLX,STD)198208-198504

BLUE,BLUE,TRIM8#

main64330-22270-01iMX62..GL198009-198208

BLACK,BLACK,TRIM2#

main64330-22270-02iMX63;GX60,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

W/SPEAKER GRILLE,DEEP MAROON,RED/MAROON,TRIM3#

main64330-22270-04iMX62..GL198009-198208

BLUE,BLUE,TRIM8#

main64330-22270-06iMX63;GX60,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

W/SPEAKER GRILLE,D-BROWN,BROWN,TRIM4#

main64330-22270-14iMX63;GX60,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

main64330-22280-01iRX60..GL,SXL198009-198208

W/SPEAKER GRILLE,BLACK,BLACK,TRIM2#

main64330-22280-04iRX60..GL,SXL198009-198208

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

main64330-22280-06iRX60..GL,SXL198009-198208

W/SPEAKER GRILLE,D-BROWN,BROWN,TRIM4#

main64330-22290-02iGX6#,RX60..GL..(EUR,GEN)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64330-22290-06iGX6#,RX60..GL..(EUR,GEN)198208-198407

D-BROWN,BROWN,TRIM4#

main64330-22290-14iGX6#,RX60..GL..(EUR,GEN)198208-198407

BLUE,BLUE,TRIM8#

main64330-22330-01iLX60..SED;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..GEN;RX60..SED..LHD..DLX..EUG198009-198208

W/SPEAKER GRILLE,BLACK,BLACK,TRIM2#

main64330-22330-02iLX60..RHD198308-198407

W/SPEAKER GRILLE,DEEP MAROON,RED/MAROON,TRIM3#

main64330-22330-04iLX60..SED;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..GEN;RX60..SED..LHD..DLX..EUG198009-198208

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

main64330-22330-06iLX60..RHD198308-198407

W/SPEAKER GRILLE,D-BROWN,BROWN,TRIM4#

main64330-22330-14iLX60,RX60..SED..DLX..(GEN,ME)198208-198407

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01198-01×3iMX62..GL198009-198208

BLACK,BLACK,TRIM2#

main90950-01198-04×3iMX62..GL198009-198208

BLUE,BLUE,TRIM8#

main90950-01198-26×3iMX62..GL198009-198208

D-BROWN,BROWN,TRIM0#,4#

main90950-01393-02×3iMX62..SED198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main90950-01393-04×3iMX62..SED198208-198407

BLUE,BLUE,TRIM8#

main90950-01393-06×3iMX62..SED198208-198407

D-BROWN,BROWN,TRIM4#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-22050iRX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198306

main64334-22060iGX60,LX60,MX62,RX60..SED..(ARL,GEN,ME)198306-198407

W/SPEAKER

64383GRILLE, SPEAKER, REAR

main64383-22020-01×2iLX60..SED..DLX;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..GEN;RX60..SED..LHD..DLX..EUG; MX62,RX60..GL,SXL198009-198208

BLACK,BLACK,TRIM2#

main64383-22020-02×2iLX60,RX60..SED..DLX..GEN198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64383-22020-04×2iLX60..SED..DLX;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..GEN;RX60..SED..LHD..DLX..EUG; MX62,RX60..GL,SXL198009-198208

BLUE,BLUE,TRIM8#

main64383-22020-06×2iLX60..SED..DLX;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..GEN;RX60..SED..LHD..DLX..EUG; MX62,RX60..GL,SXL198009-198208

D-BROWN,BROWN,TRIM0#,4#; D-BROWN,BROWN,TRIM4#

main64383-22020-14×2iLX60..RHD198308-198407

BLUE,BLUE,TRIM8#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-22100iLX60,RX60..SED..(DLX,XL)198009-198208

main64701-22120iLX60,TX62..SED..STD198009-198208

main64701-22130iGX6#,MX6#,RX60..GL,SXL198009-198504

64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT

main64717-22040iMX63,RX60..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME)198009-198504

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-22080iLX60,MX62,RX60,TX62..SED198009-198208

main64714-22130iGX61,LX60,RX60..SED..EUG198308-198407

64715COVER, LUGGAGE COMPARTMENT, LH

main64715-22070iLX60,MX62,RX60,TX62..SED198009-198208

main64715-22071iMX63,RX60,TX62..SED..(GEN,ME,SA);GX60,LX60,MX62..SED..(ARL,GEN,ME)198308-198504

main64715-22120iGX61,LX60,RX60..SED..EUG198308-198407

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-22100iMX62,RX60..GL,SXL198009-198208

main64716-22130iGX60,RX60..GL..ME198208-198407

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-22060iMX63,RX60..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME)198009-198504

RH

main64722-22070iMX63,RX60..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME)198009-198504

LH

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-03×6iMX63,RX60..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME)198009-198504

GRAY,GRAY,TRIM2#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-30020iGX6#,MX6#,RX60..GL..(ARL,EUR,GEN,SA)198208-198504

main90467-22002-03iGX60,RX60..GL..ME198208-198407

GRAY,GRAY,TRIM2#

64759COVER, SHOCK ABSORBER HEAD

main58731-22020×2iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main58731-22030×2iGX61,MX63198208-198504

64770COVER ASSY, SPARE WHEEL

main64770-30050iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

9018304046

main90183-04046

9053006001

main90530-06001

9356054010

main93560-54010

20 parts on this diagram · 1 diagram in section
