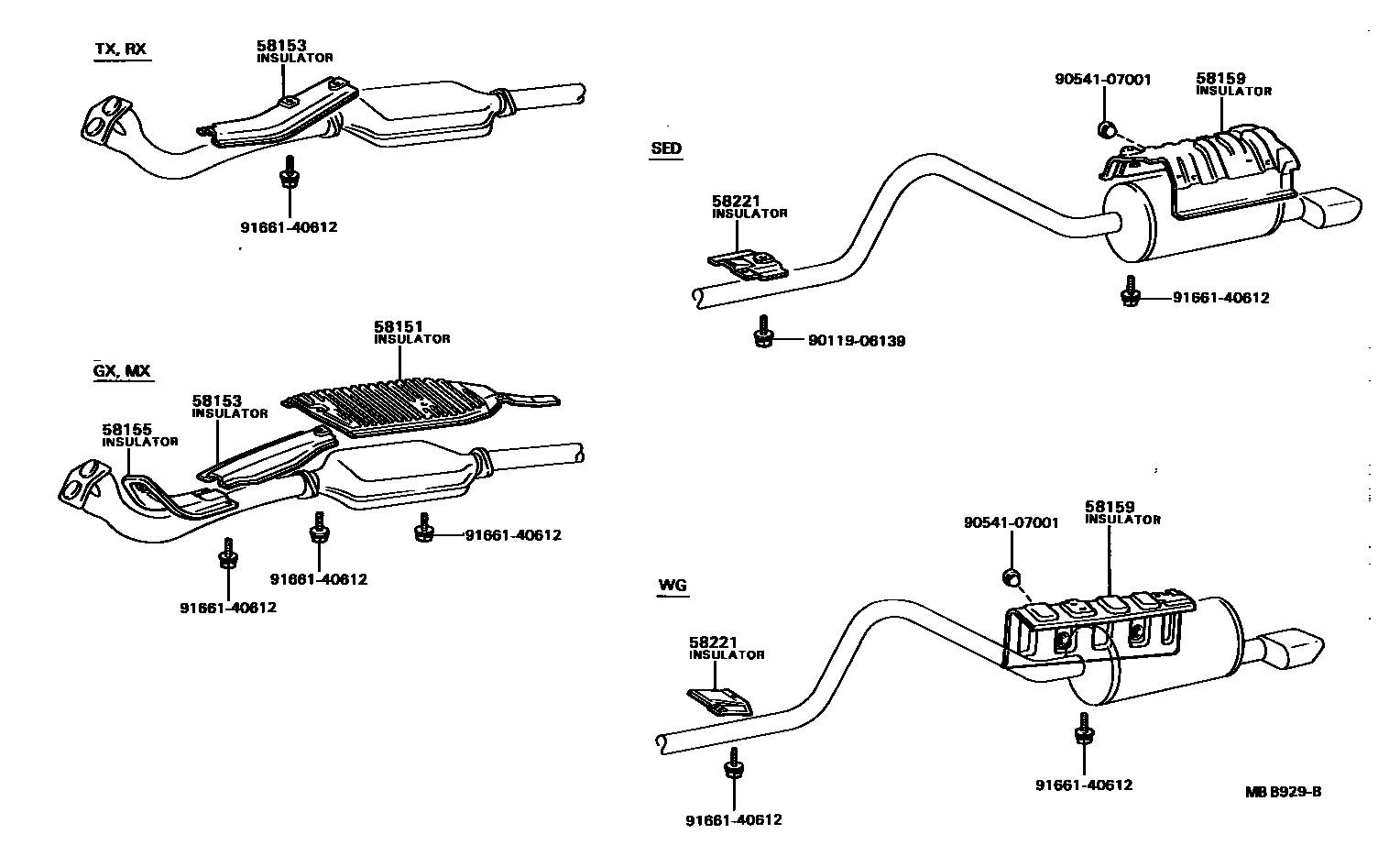

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-22041iMX62198009-198208

main58041-22042iMX62198208-198407

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-22030iGX6#,MX6#198009-198504

main58153-91601iRX60,TX62198009-198504

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22020iMX62198009-198208

58159INSULATOR, MAIN MAFFLAR HEAT

main58031-22020iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main58327-91602iLX60,MX62,RX6#..WG198009-198504

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58221-22060iMX62..GL198009-198208

main58221-91600iMX62..DLX198009-198208

9011906139

main90119-06139

9054107001

main90541-07001

9166140612

main91661-40612

8 parts on this diagram · 1 diagram in section
