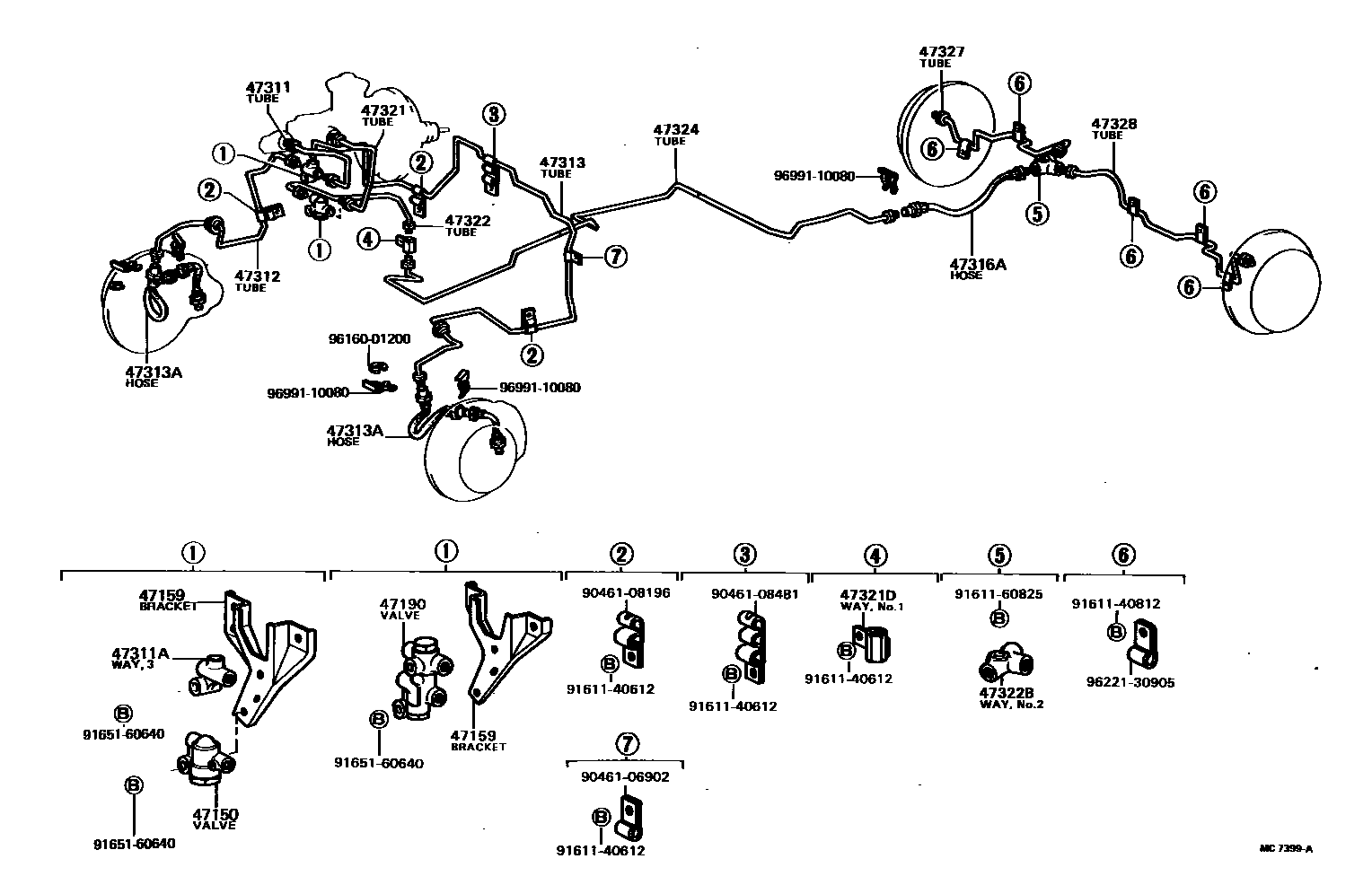

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47150VALVE ASSY, PROPORTIONING

main47150-12031iGX60,LX60,RX60..GEN,ME,SAA198009-198407

47159BRACKET, PROPORTIONING VALVE

main47159-22100iGX60,LX60,RX60..GEN,ME,SAA198009-198407

main47159-22110iGX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA198009-198504

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-22030iGX6#,LX60,MX63,RX60,TX62..EUR,SA198009-198504

20KG/CM2

main47190-22040iMX62198009-198407

main47190-22050iRX60..WG..SA;RX60..WG..EUG;LX60,RX62..WG..(EUR,SA)198009-198504

35KG/CM2

47311TUBE, FRONT BRAKE, NO.1

main47311-22190iRX60..SDZ198208-198407

SWITZERLAND SPEC

main47311-22220iRX60..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iGX60,LX60,RX60..GEN,ME,SAA198009-198407

47312TUBE, FRONT BRAKE, NO.2

main47312-22060iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

main47312-22070iRX60..EUG;RX60..LHD..(GEN,ME); RX60..SDZ198208-198407

SWITZERLAND SPEC

main47312-22080iRX60..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

main47312-22100iGX6#,LX60..LHD198208-198407

47313TUBE, FRONT BRAKE, NO.3

main47313-22190iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

main47313-22200iGX6#,LX60..LHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA)198009-198407

main47313-22210iRX60..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02407×2iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iRX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main96940-33055iLX60,MX62,RX6#..WG198009-198504

47321TUBE, REAR BRAKE, NO.1

main47321-22040iRX60..DLX..SDZ198208-198407

SWITZERLAND SPEC

main47321-22070iRX60..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10017iGX6#,LX60,MX6#..RHD198101-198504

main90412-10030iRX60..LHD198009-198407

main90412-10036iRX6#,TX62..RHD198009-198504

main90412-10093iGX6#,LX60..LHD198101-198407

47322TUBE, REAR BRAKE, NO.2

main47322-22050iGX6#,LX60..LHD198009-198407

main47322-22060iRX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA)198009-198407

main47322-22080iGX6#,LX60,MX6#..RHD198009-198504

main47322-22090iRX6#,TX62..RHD198009-198504

main47322-22100iRX60..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10076iGX61,MX63198208-198504

main90413-10098iLX60,MX62,RX6#,TX62198009-198504

47324TUBE, REAR BRAKE, NO.4

main47324-22100iRX60,TX62..SED..RHD198009-198504

main47324-22110iGX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main47324-22130iRX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA)198009-198407

main47324-22150iRX60..SED..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

main47324-22160iGX61,MX63198208-198504

main47324-23060iRX60..WG..LHD198009-198407

main47324-23070iLX60,MX62..WG198009-198407

main47324-23090iRX6#..WG..RHD198009-198504

47327TUBE, REAR BRAKE, NO.7

main47327-22020iGX61,MX63198208-198504

main47327-22060iRX60..SED..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

main47327-22070iRX60,TX62..SED..RHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA);GX60,LX60..SED..(EUR,GEN,ME)198009-198504

main47327-23040iLX60,MX62,RX6#..WG198009-198504

47328TUBE, REAR BRAKE, NO.8

main47328-22020iGX61,MX63198208-198504

main47328-22060iRX60..SED..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

main47328-22070iRX60..SED..SDZ198208-198407

SWITZERLAND SPEC

main47328-23040iLX60,MX62,RX6#..WG198009-198504

9046106902

main90461-06902

9046108196

main90461-08196

9046108481

main90461-08481

9161140612

main91611-40612

9161140812

main91611-40812

9161160825

main91611-60825

9165160640

main91651-60640

9616001200

main96160-01200

9622130905

main96221-30905

9699110080

main96991-10080

26 parts on this diagram · 6 diagrams in section
