TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

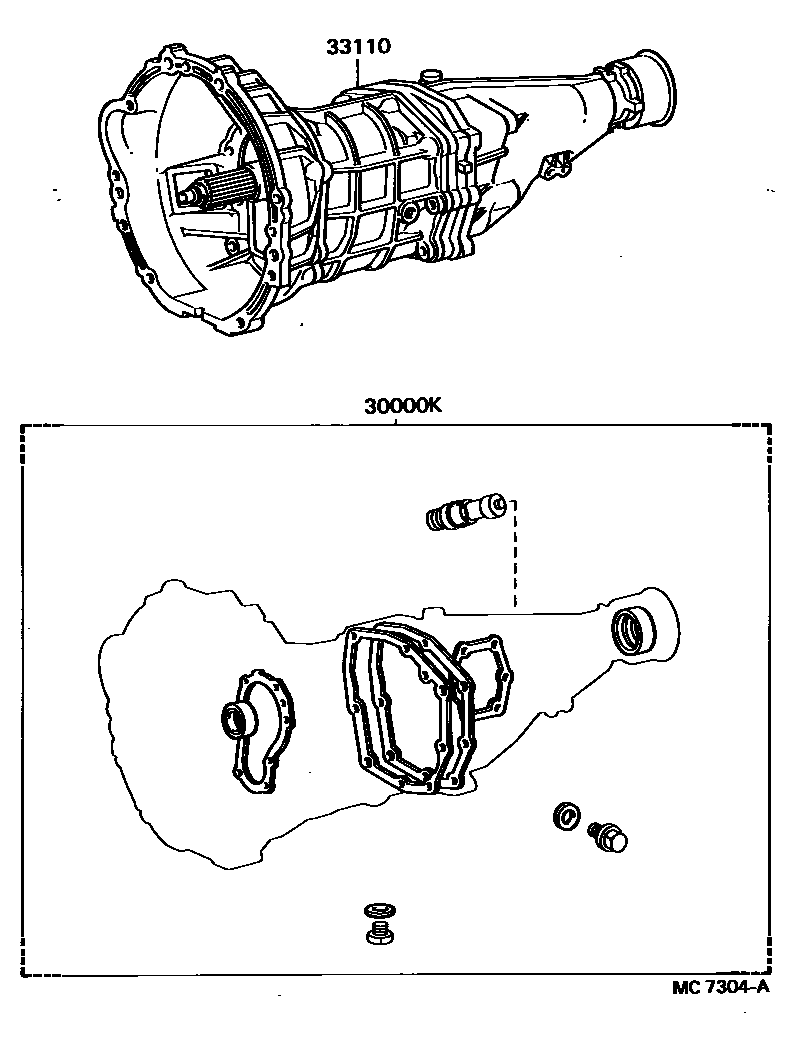

Parts diagram

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20040i198009-198208

main04331-20050i198009-198504

main04331-30081i198009-198108

33110TRANSMISSION ASSY, MANUAL

main33030-20820i198009-198504

main33030-22520i198107-198208

main33030-22551i198009-198407

main33030-22590i198009-198104

main33030-22591i198104-198407

main33030-22620i198009-198108

main33030-22640i198009-198208

main33030-22670i198108-198407

main33030-22680i198107-198208

main33030-22700i198209-198504

main33030-24020i198208-198504

2 parts on this diagram · 4 diagrams in section
