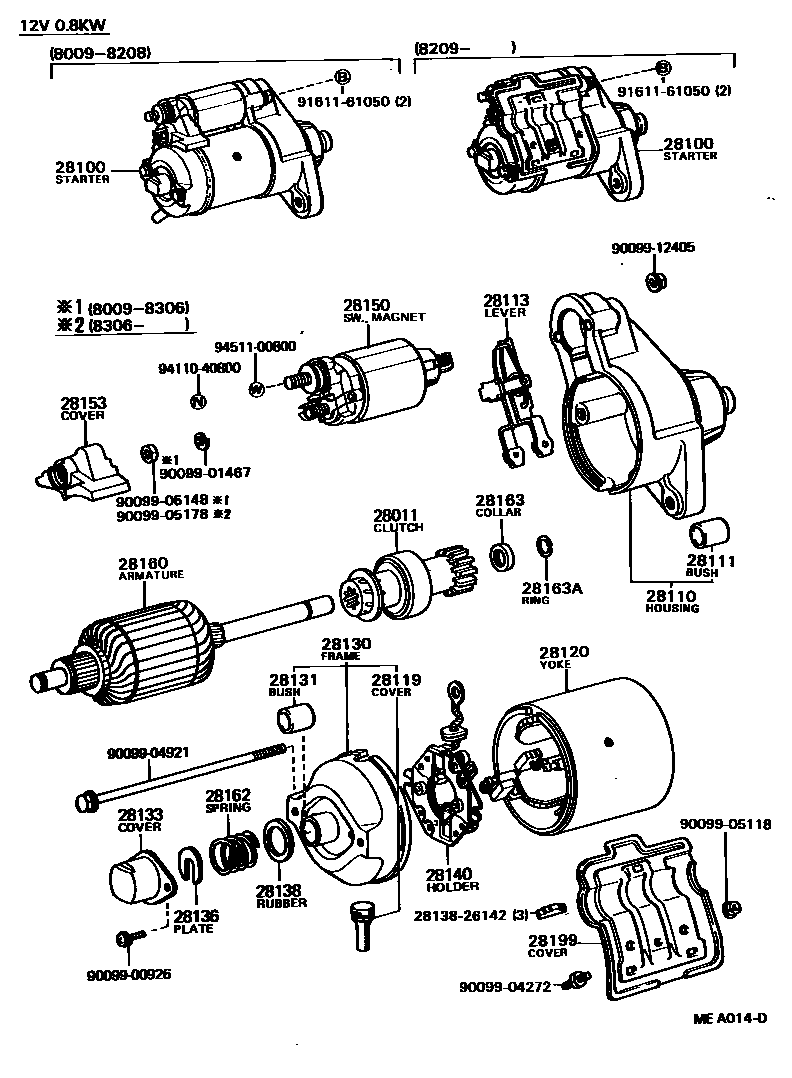

STARTER

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0009 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28011-26042i21RC..RX60198009-198407

12V 1.0KW

main28011-41020i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

main28011-54010iL..LX60..4FC198009-198407

12V 2.5KW

main28011-54070iL..LX60..5F198009-198407

12V 2.0KW

28100STARTER ASSY

main28100-15040i1GE..GX6#198208-198504

12V 1.0KW,12V 1.0KW

main28100-26160i3T..TX62198009-198208

12V 0.8KW

main28100-27020i3T..TX62198209-198504

12V 0.8KW,12V 0.8KW

main28100-34060i21R..RX60..RHD198308-198504

12V 1.0KW,12V 1.0KW

main28100-34070i21R,18R..RX6#..EUR,GEN,SA198009-198308

12V 1.0KW,12V 1.0KW

sub28100-40061

main28100-34080i21RC..RX60198009-198407

12V 1.0KW,12V 1.0KW

main28100-37010i21R..RX60..GEN,ME,SAA198009-198303

12V 0.8KW,12V 0.8KW

main28100-37011i21R..RX60..GEN,ME198303-198407

12V 0.8KW,12V 0.8KW

main28100-41060i5ME..MX6#198308-198504

12V 1.0KW,12V 1.0KW

sub28100-45050

main28100-42021i5ME..MX62198009-198308

12V 1.0KW

sub28100-42070

main28100-54052iL..LX60..LHD..DLX..EUG198009-198407

12V 2.5KW,12V 2.5KW,COLD SPEC

sub28100-54220

main28100-54061iL..LX60..4FC198009-198407

12V 2.5KW,12V 2.5KW

sub28100-54220

main28100-54070iL..LX60..5F198009-198407

12V 2.0KW,12V 2.0KW

sub28100-54180

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GE..GX6#198208-198504

12V 1.0KW

main28110-27020i3T..TX62198009-198504

12V 0.8KW

main28110-34060i21R..RX60..RHD198308-198504

12V 1.0KW

main28110-34080i21RC..RX60198009-198407

12V 1.0KW

main28110-37010i21R..RX60..GEN,ME,SAA198009-198407

12V 0.8KW

main28110-40061i21R,18R..RX6#..EUR,GEN,SA198009-198308

12V 1.0KW

main28110-41021i5ME..MX62198009-198308

12V 1.0KW

main28110-41060i5ME..MX6#198308-198504

12V 1.0KW

main28115-54011iL..LX60..4FC198009-198407

12V 2.5KW

main28115-54070iL..LX60..5F198009-198407

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28113-41011i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

28119COVER, STARTER END FRAME

main28119-54070iL..LX60..5F198009-198407

12V 2.0KW

main28199-77090iL..LX60..4FC198009-198407

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-15010i21R..RX60..GEN,ME198208-198407

12V 0.8KW

main28120-26070i1GE..GX6#198208-198504

12V 1.0KW

main28120-26071i21R,5ME..MX6#,RX60..ARL,EUR,GEN,SA198308-198504

12V 1.0KW

main28120-26140i3T..TX62198209-198504

12V 0.8KW

main28120-34070i21R,18R..RX6#..EUR,GEN,SA198009-198308

12V 1.0KW

main28120-42020i5ME..MX62198009-198308

12V 1.0KW

main28120-47040iL..LX60..4FC198009-198407

12V 2.5KW

main28120-54070iL..LX60..5F198009-198407

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i5ME..MX6#198308-198504

12V 1.0KW

main28130-15040i1GE..GX6#198208-198504

12V 1.0KW

main28130-34060i21RC..RX60198009-198407

12V 1.0KW

main28130-37010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28130-41020i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

main28130-54060iL..LX60..4FC198009-198407

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

28131BUSH, COMMUTATOR END FRAME

main28131-20010i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

STD,12V 1.0KW

main90099-10039i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

U/S 0.3,12V 1.0KW

main90099-10040i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

U/S 0.5,12V 1.0KW

main90099-10134i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

sub28132-15011

main28132-40010i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

28136PLATE, STARTER LOCK

main28136-15010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28136-40010i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28138-40010i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

sub28138-26030

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28140-25020i21R,18R..RX6#..EUR,GEN,SA198009-198308

12V 1.0KW

main28140-26070i1GE..GX6#198208-198504

12V 1.0KW

main28140-41020i5ME..MX62198009-198308

12V 1.0KW

main28140-54070iL..LX60..5F198009-198407

12V 2.0KW

main28140-77090iL..LX60..4FC198009-198407

12V 2.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i21R..RX60..GEN,ME,SAA198009-198303

12V 0.8KW

main28150-15012i3T..TX62198209-198304

12V 0.8KW

main28150-15070i1GE..GX6#198208-198504

12V 1.0KW

main28150-26160i3T..TX62198009-198208

12V 0.8KW

main28150-34070i21R,18R..RX6#..EUR,GEN,SA198009-198308

12V 1.0KW

main28150-34080i21RC..RX60198009-198407

12V 1.0KW

main28150-37010i3T..TX62198304-198504

12V 0.8KW

sub28150-37011

main28150-41060i5ME..MX6#198308-198504

12V 1.0KW

main28150-54011iL..LX60..4FC198009-198407

12V 2.5KW

sub28150-54190

main28150-54051iL..LX60..LHD..DLX..EUG198009-198407

12V 2.5KW,COLD SPEC

sub28150-54221

main28150-54070iL..LX60..5F198009-198407

12V 2.0KW

sub28150-54110

main28150-60040i5ME..MX62198009-198308

12V 1.0KW

28153COVER, MAGNET SWITCH

main28159-13030i3T..TX62198009-198208

12V 0.8KW

main28159-15010i21R..RX60..GEN,ME,SAA198009-198209

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28160-26070i21RC..RX60198009-198407

12V 1.0KW

sub28160-26071

main28160-41020i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

main28160-47040iL..LX60..4FC198009-198407

12V 2.5KW

sub28160-54140

main28160-54070iL..LX60..5F198009-198407

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

main28162-41022i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3T..TX62;21R..RX60..GEN,ME,SAA198009-198504

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i21R,18R,5ME..MX62,RX6#..ARL,EUR,GEN,SA198009-198308

12V 1.0KW

28199COVER, STARTER

main28199-15110i3T..TX62198304-198504

12V 0.8KW

main28199-26131i3T..TX62198209-198304

12V 0.8KW

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009900926

main90099-00926

9009901467

main90099-01467

9009904272

main90099-04272

9009904921

main90099-04921

9009905118

main90099-05118

9009905148

main90099-05148

9009905178

main90099-05178

9009912405

main90099-12405

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

32 parts on this diagram · 7 diagrams in section
