Toyota 311230 — OIL FILTER

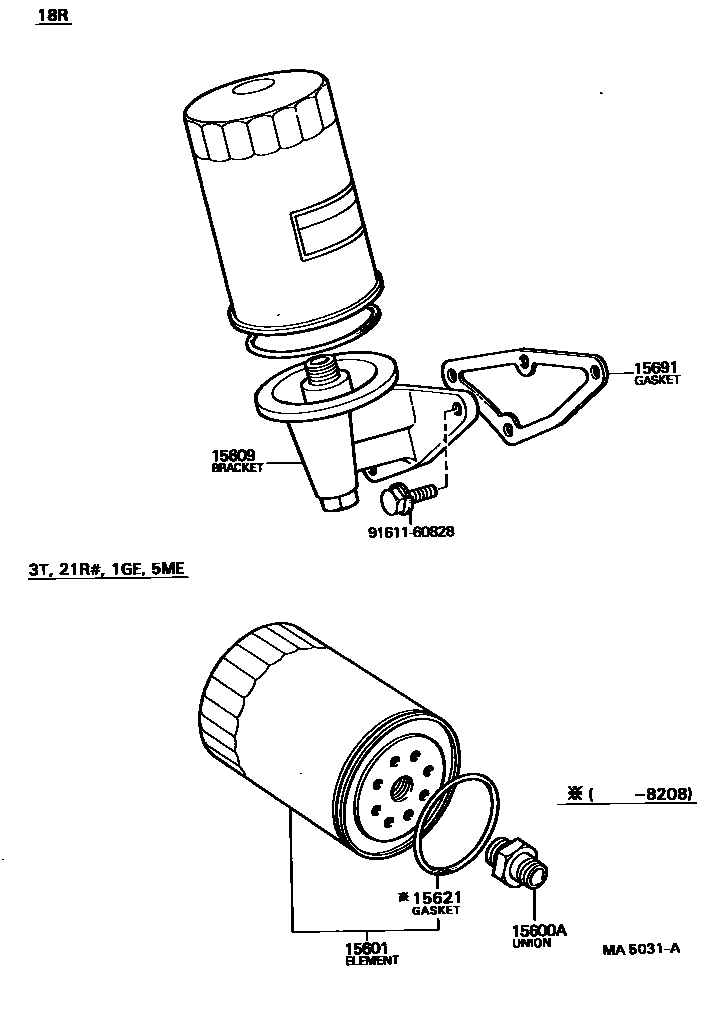

Parts diagram

15600AUNION(FOR OIL FILTER)

15601FILTER SUB-ASSY, OIL

15609BRACKET SUB-ASSY, OIL FILTER

15621GASKET, OIL FILTER BODY

15691GASKET, OIL FILTER

9161160828

6 parts on this diagram · 3 diagrams in section

OIL FILTER for Toyota 311230

This section contains 16 genuine Toyota parts for the OIL FILTER system of the Toyota 311230. Key components include: CYLINDER BLOCK, UNION(FOR OIL FILTER), PLUG(FOR OIL FILTER), WASHER(FOR OIL FILTER), SPRING, COMPRESSION(FOR OIL FILTER).
