MOUNTING

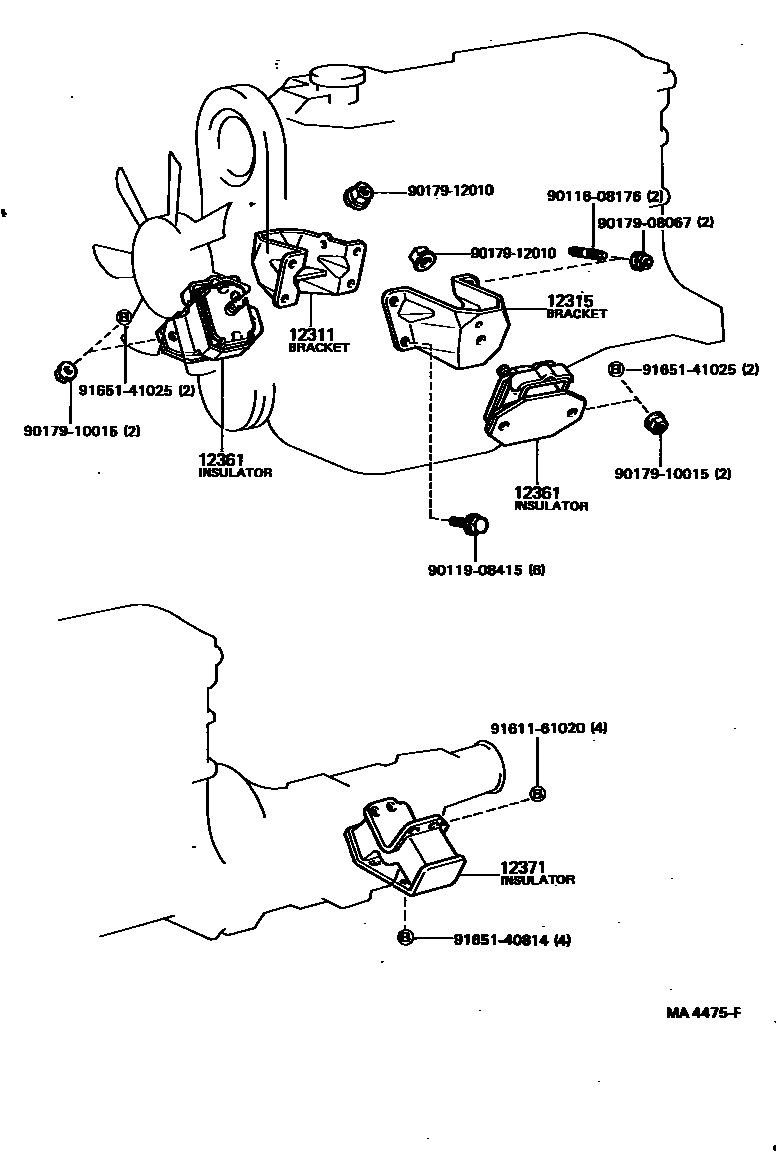

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35020i198009-198208

main12301-35090i198208-198407

main12311-25051i198107-198504

main12311-41051i198009-198504

main12311-54050i198009-198101

main12311-54051i198101-198208

main12311-54080i198208-198407

main12311-70010i198208-198307

main12311-70040i198307-198407

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35030i198208-198407

main12302-37010i198009-198103

main12302-37020i198103-198208

main12302-37030i198204-198407

NEWZEALAND

main12302-38140i198009-198208

main12312-25041i198107-198504

main12312-54020i198009-198208

main12315-41070i198009-198206

main12315-41071i198206-198504

main12315-54010i198208-198407

W/O PS

main12315-70010i198208-198307

main12315-70011i198307-198504

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-18010×2i198107-198504

MARUYASU,TOKAIGOMU

main12361-18020×2i198107-198504

TOYOGOMU

main12361-18030×2i198209-198504

TOYOTA GOSEI

main12361-38120i198107-198504

RH

main12361-41080×2i198208-198504

main12361-49125×2i198009-198504

main12361-54060×2i198009-198208

main12361-54090×2i198208-198407

main12362-34071i198107-198504

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i198009-198504

main12371-34030i198009-198504

main12371-54021i198009-198102

main12371-54040i198203-198208

9011608176

main90116-08176

9011908415

main90119-08415

9017908067

main90179-08067

9017910015

main90179-10015

9017912010

main90179-12010

9161161020

main91611-61020

9165140814

main91651-40814

9165141025

main91651-41025

12 parts on this diagram · 9 diagrams in section
