ENGINE OVERHAUL GASKET KIT

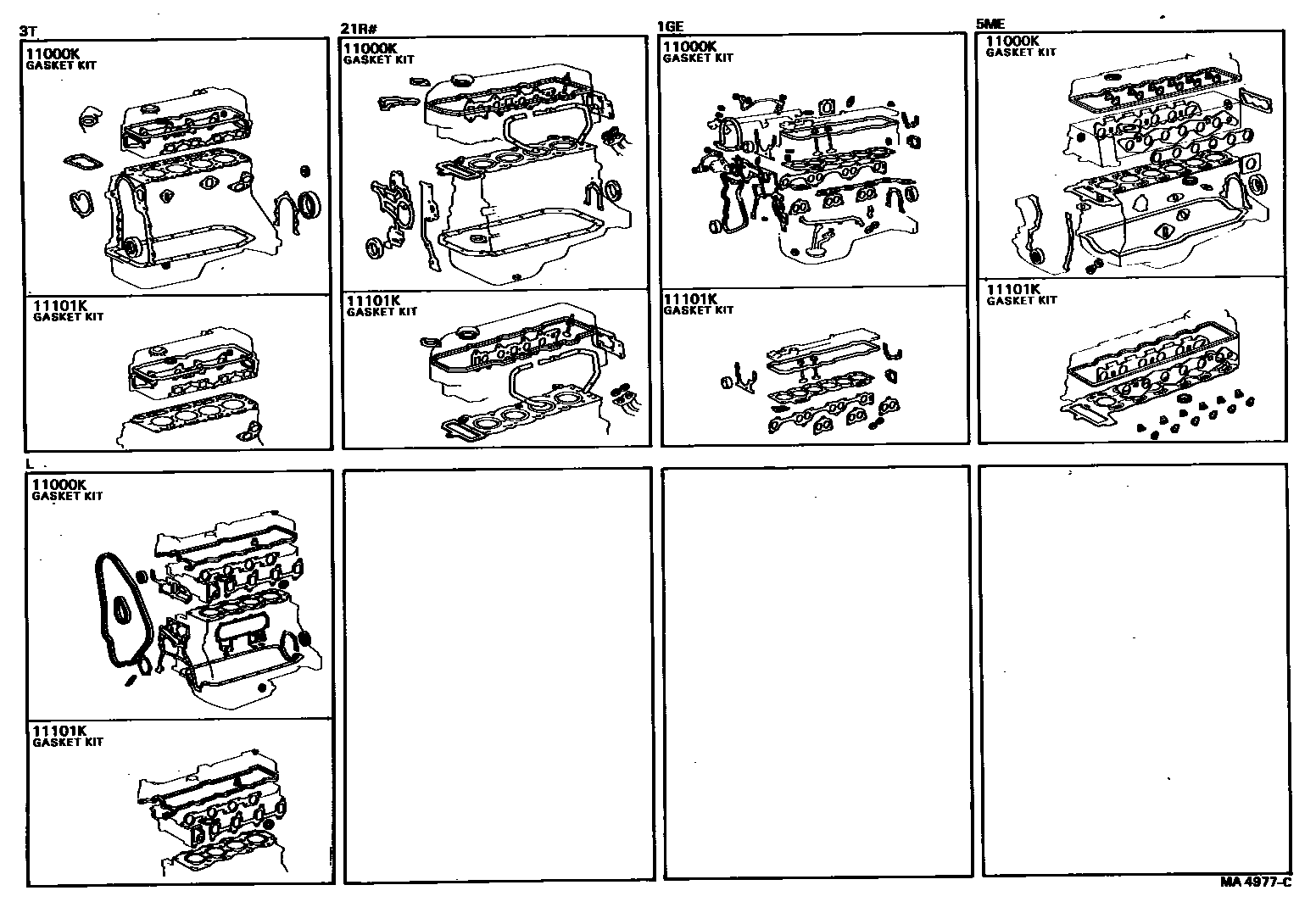

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-28015i198107-198201

main04111-28017i198201-198504

main04111-37031i198009-198407

main04111-37060i198408-198411

main04111-37061i198411-198504

main04111-43010i198009-198111

main04111-43011i198111-198504

main04111-54021i198009-198101

main04111-54022i198101-198105

main04111-54023i198105-198107

main04111-54024i198107-198108

main04111-54030i198108-198111

main04111-54031i198111-198201

main04111-54032i198201-198204

main04111-54033i198204-198208

main04111-54034i198208-198407

main04111-70012i198208-198504

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-28015i198107-198201

main04112-28016i198201-198504

main04112-37031i198009-198407

main04112-37040i198408-198411

main04112-37041i198411-198504

main04112-43010i198009-198111

main04112-43011i198111-198504

main04112-54011i198009-198107

main04112-54012i198107-198108

main04112-54020i198108-198111

main04112-54021i198111-198208

main04112-54022i198208-198407

main04112-70010i198208-198504

2 parts on this diagram · 1 diagram in section
