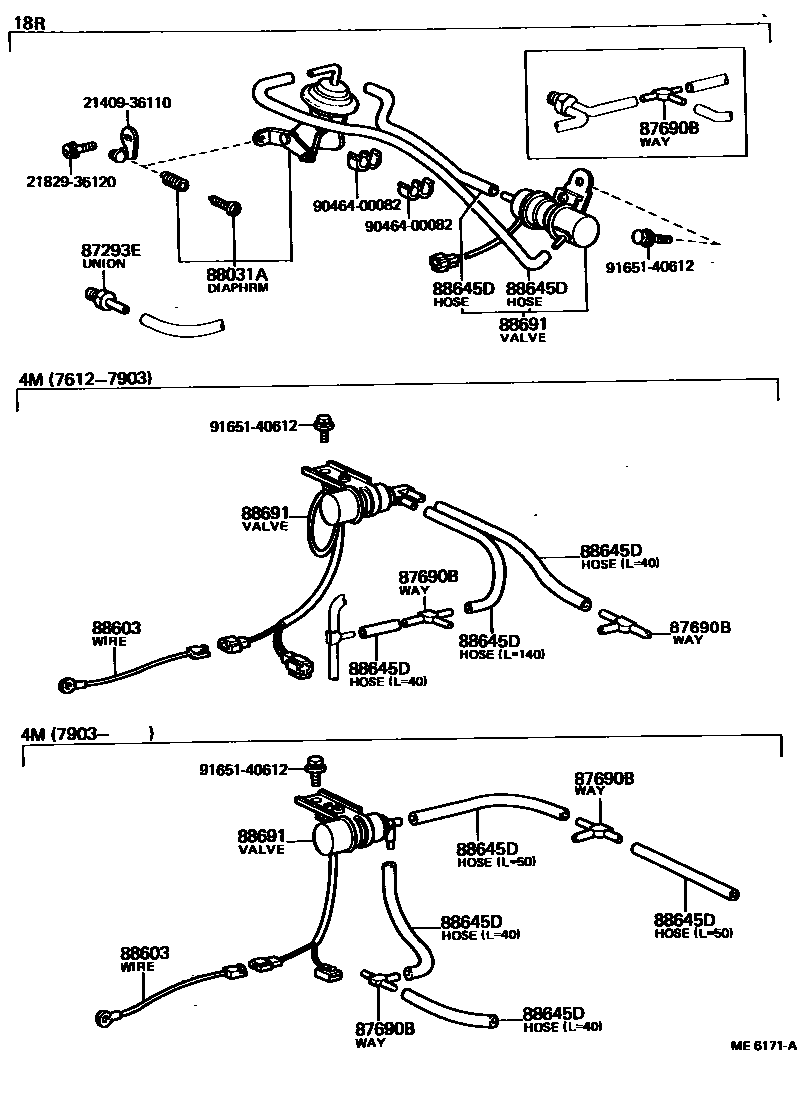

HEATING & AIR CONDITIONING - VACUUM PIPING

87293EUNION, HOSE

main90404-51093iRX3#197612-198008

87690BWAY, 3

main90413-04001×2iMX3#,RX3#197612-198008

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main21099-36110iRX3#197612-198008

88603WIRE, IDLE UP DEVICE

main88648-30380iMX3#197612-198008

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iRX3#197612-198008

*H,L=420,MARK=#0

main95411-10830iMX3#197612-197903

*H,L=140,MARK=#8

main95411-11030iMX3#197612-197903

H,L=40

main95411-11630×2iMX3#197903-198008

H,L=50

main95411-19960iRX3#197612-198008

*H,L=480,MARK=#*

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-22090iRX3#197612-198008

main88691-30320iMX3#197612-197903

main88691-30370iMX3#197903-198008

2140936110

main21409-36110

2182936120SCREW, HIGH SPEED VALVE SET

main21829-36120

9046400082

main90464-00082

9165140612

main91651-40612

10 parts on this diagram · 1 diagram in section
