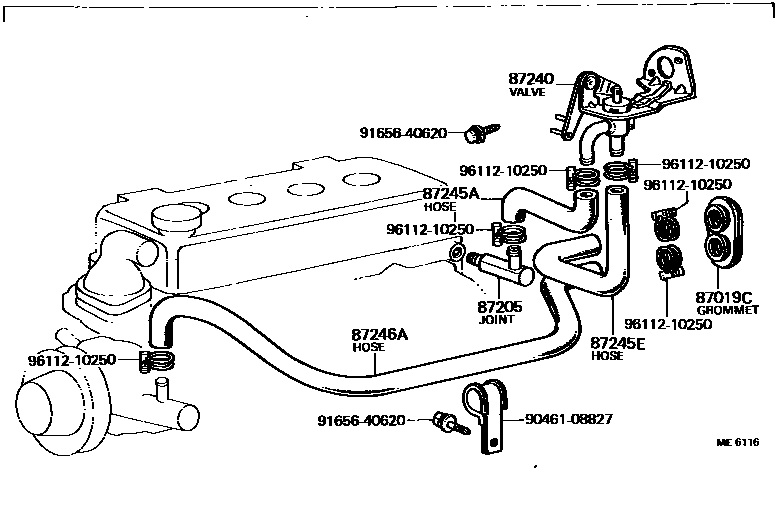

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01016iMX3#197612-198008

INLET

main90480-01017iRX3#,TX30197612-198008

main90480-36498iMX3#197612-198008

OUTLET

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-20100iTX30198001-198008

main87251-30200iMX3#197612-198008

87240VALVE ASSY, HEATER WATER

main87240-22060iMX3#197612-198008

main87240-22070iRX3#,TX30..RHD197612-198008

main87240-22090iRX3#..LHD197612-198008

main87240-22110iRX3#..SDN197707-198008

87245AHOSE, HEATER WATER, INLET A

main87245-22120iMX3#197612-198008

main87245-22220iTX30198001-198008

main99552-30520iRX3#..SDN197707-197912

*H,L=520

main99552-30640iRX3#..LHD197612-197912

L=640

main99552-30700iRX3#..LHD; RX30..SDN197912-198008

H,L=520; H,L=640

main99552-30740iRX3#..RHD197612-197912

L=740

main99552-31000iRX3#..RHD197912-198008

H,L=740

87245EHOSE, HEATER WATER, INLET E

main87245-22130iMX3#,RX3#,TX30..RHD197612-198008

main87245-22170iRX3#..LHD197612-198008

main87245-22230iRX3#..SDN197707-198008

87246AHOSE, HEATER WATER, OUTLET A

main87245-22140iMX3#197612-198008

main87245-22150iRX3#..RHD197612-197704

main87245-22190iRX3#..LHD197612-197704

main87245-22240iRX3#..SDN197707-198008

main99552-31000iTX30198001-198008

H,L=900

9046108827

main90461-08827

9165640620

main91656-40620

9611210250

main96112-10250

9 parts on this diagram · 2 diagrams in section
