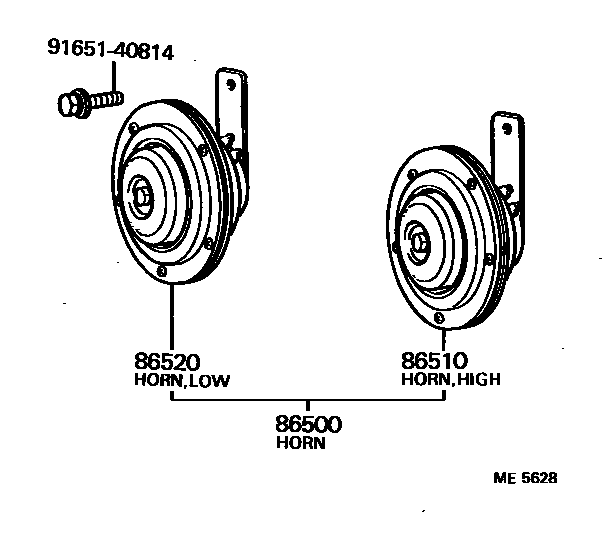

HORN

86500HORN ASSY

main86500-14021iMX3#,RX3#..ARL,GEN,SA197612-197708

MARUKO

main86500-14031iRX3#..LHD197803-197902

DENSO EEC SPEC.

86510HORN ASSY, HIGH PITCHED

main86510-14010iMX3#,RX3#..ARL,GEN,SA197612-197708

DENSO

main86510-14021iMX3#,RX3#..ARL,GEN,SA197612-197708

MARUKO

main86510-14031iRX3#..EUR197612-198008

DENSO

main86510-20110iMX3#,RX3#,TX30..ARL,GEN,SA197708-198008

DENSO

main86510-20120iMX3#,RX3#,TX30..ARL,GEN,SA197708-198008

MARUKO

86520HORN ASSY, LOW PITCHED

main86520-14010iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

DENSO

main86520-14021iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

MARUKO

main86520-14031iRX3#..LHD197803-197902

DENSO EEC SPEC.

9165140814

main91651-40814

4 parts on this diagram · 1 diagram in section
