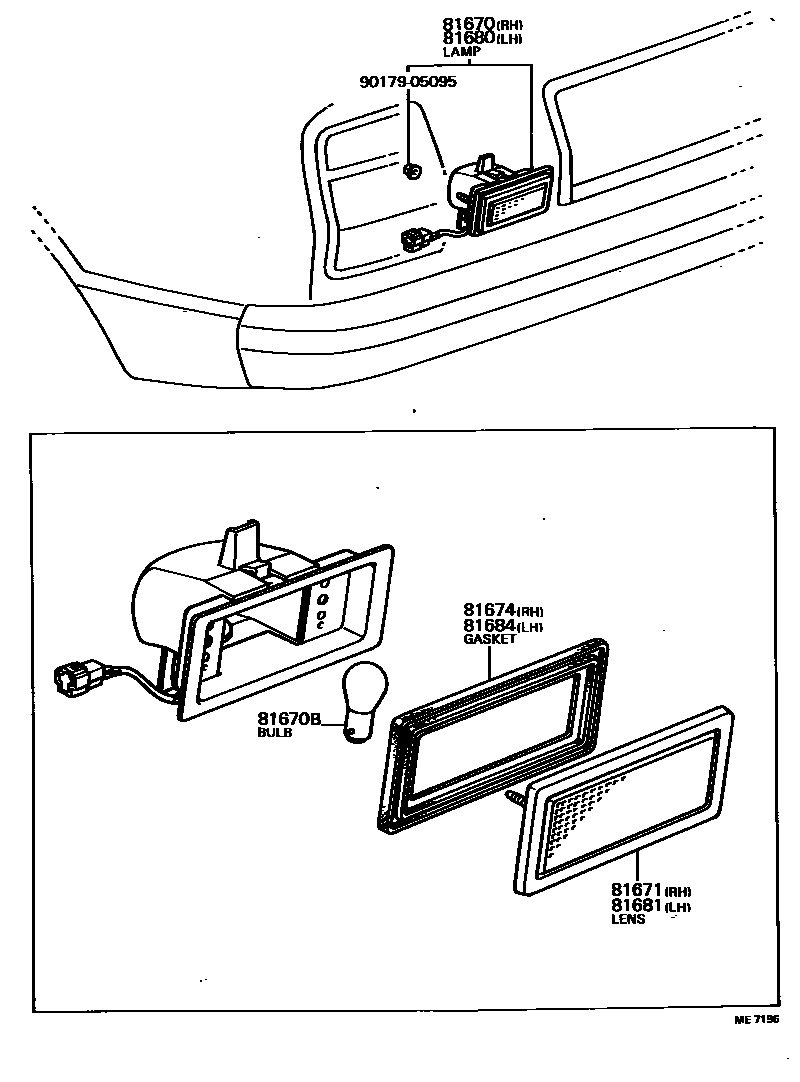

BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-29075iMX32,RX30,TX30197808-198008

81670BBULB(FOR BACK-UP LAMP)

main99132-11270×2iMX32,RX30,TX30197808-198008

12V 27W,12V 21W

81671LENS, BACK-UP LAMP, RH

main81671-22020iMX32,RX30,TX30197808-198008

81674GASKET, BACK-UP LAMP BODY, RH

main81672-22020iMX32,RX30,TX30197808-198008

81680LAMP ASSY, BACK UP, LH

main81670-29075iMX32,RX30,TX30197808-198008

81681LENS, BACK-UP LAMP, LH

main81671-22020iMX32,RX30,TX30197808-198008

81684GASKET, BACK UP LAMP BODY, LH

main81672-22020iMX32,RX30,TX30197808-198008

9017905095

main90179-05095

8 parts on this diagram · 1 diagram in section
