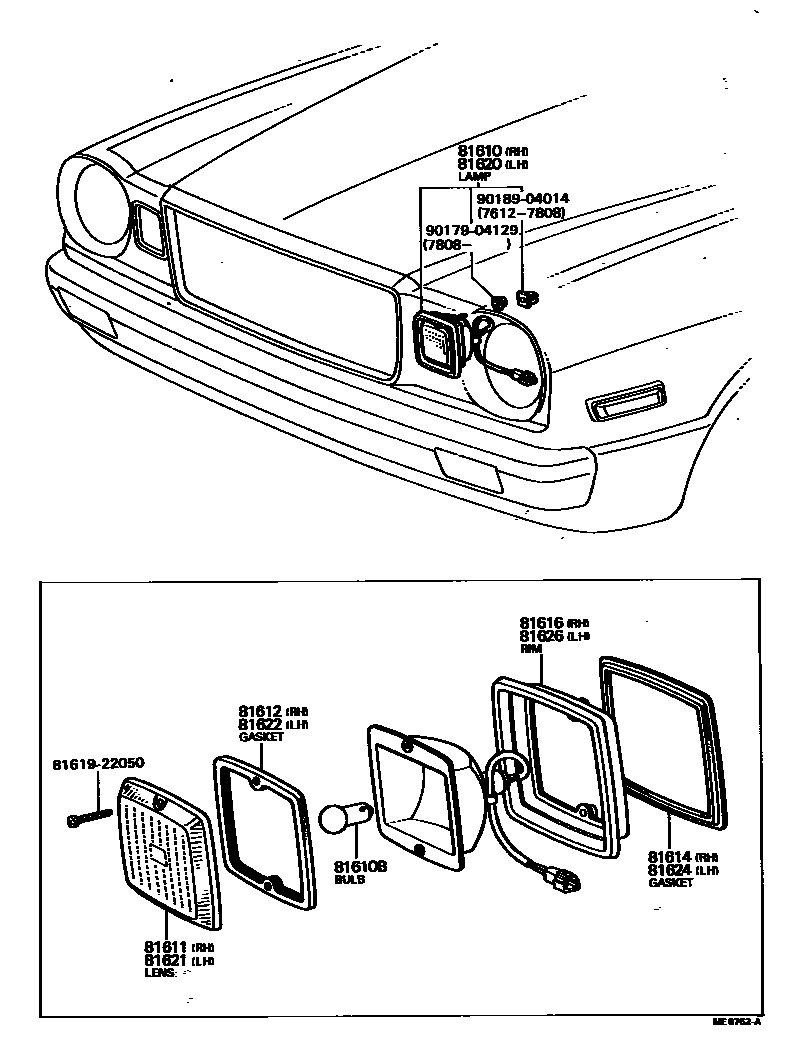

FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-29085iRX3#..STD197612-197808

main81610-29095iMX3#,RX3#..DLX,SDX197612-197808

main81610-29185iMX3#,RX3#,TX30197808-198008

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-11050×2iMX3#,RX3#,TX30197612-198008

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-22010iMX3#,RX3#197612-197808

main81611-22050iMX3#,RX3#,TX30197808-198008

81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH

main81612-22010iMX3#,RX3#197612-197808

main81612-22040iMX3#,RX3#,TX30197808-198008

81614GASKET, PARKING AND CLEARANCE LAMP BODY, RH

main81614-22010iMX3#,RX3#197612-197808

main81614-22040iMX3#,RX3#,TX30197808-198008

81616RIM, PARKING AND CLEARANCE LAMP, RH

main81616-22010iMX3#,RX3#197612-197808

main81616-22040iMX3#,RX3#,TX30197808-198008

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-29075iRX3#..STD197612-197808

main81620-29085iMX3#,RX3#..DLX,SDX197612-197808

main81620-29175iMX3#,RX3#,TX30197808-198008

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-22010iMX3#,RX3#197612-197808

main81621-22050iMX3#,RX3#,TX30197808-198008

81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH

main81612-22010iMX3#,RX3#197612-197808

main81612-22040iMX3#,RX3#,TX30197808-198008

81624GASKET, PARKING AND CLEARANCE LAMP BODY, LH

main81614-22010iMX3#,RX3#197612-197808

main81614-22040iMX3#,RX3#,TX30197808-198008

81626RIM, PARKING AND CLEARANCE LAMP, LH

main81626-22010iMX3#,RX3#197612-197808

main81626-22040iMX3#,RX3#,TX30197808-198008

8161922050

main81619-22050

9017904129

main90179-04129

9018904014

main90189-04014

14 parts on this diagram · 1 diagram in section
