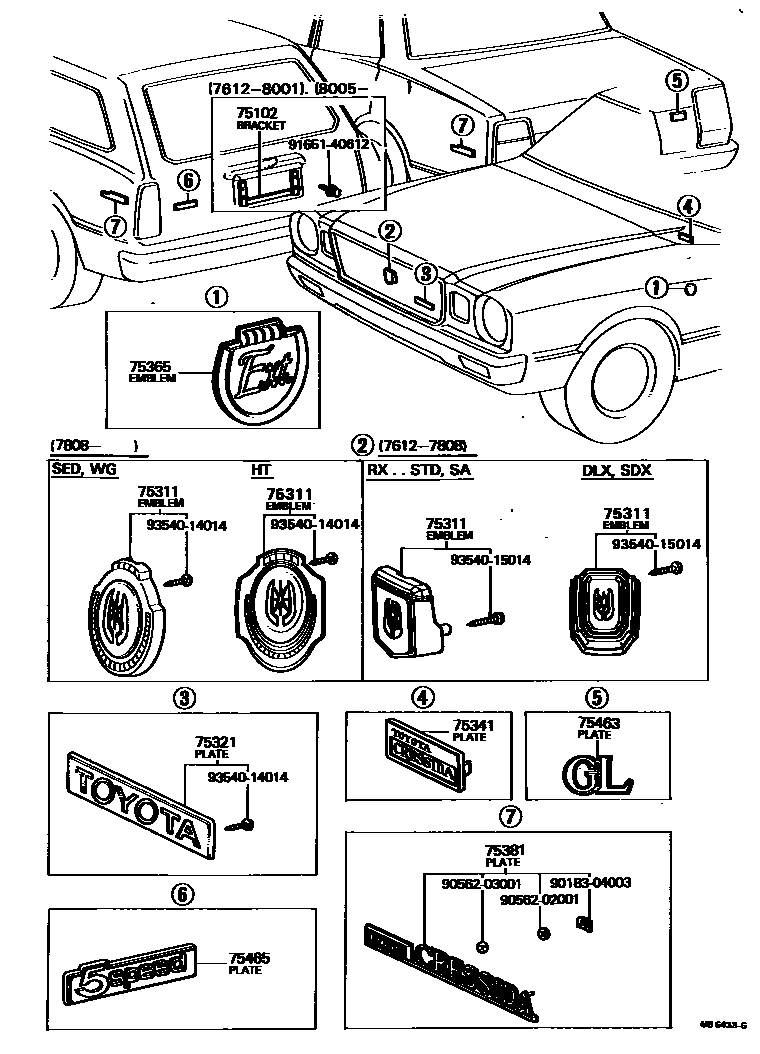

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75121-91600iRX35..EUG198005-198008

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-29085iRX3#..STD197612-197808

main75301-29095iMX3#;RX3#..DLX..GEN197612-197711

main75301-29115iRX3#..DLX..EUR197612-197711

main75301-29135iRX3#,TX30..STD197808-198008

main75301-29145iMX3#;RX3#..(DLX,GL)..(EUR,GEN)197808-198008

main75301-29195iRX30..5F..GL..SA198001-198008

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-29395iMX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)197808-198008

75341PLATE, INSTRUMENT PANEL NAME, NO.1

main55511-22060iMX3#,RX3#,TX30197612-198008

CRESSIDA

75365EMBLEM, FRONT FENDER

main75370-30010×2iRX30..SED..LHD..4F..DLX..GEN197908-198008

EXTRA INTERIOR

75381PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)

main75381-29125×2iMX3#,RX3#,TX30197612-198008

TOYOTA CRESSIDA

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75461-29145iRX30..GL197808-198008

GL

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75441-30040iRX3#..5F197612-198008

5SPEED

9018304003

main90183-04003

9056202001

main90562-02001

9056203001

main90562-03001

9165140612

main91651-40612

9354014014

main93540-14014

9354015014

main93540-15014

14 parts on this diagram · 1 diagram in section
