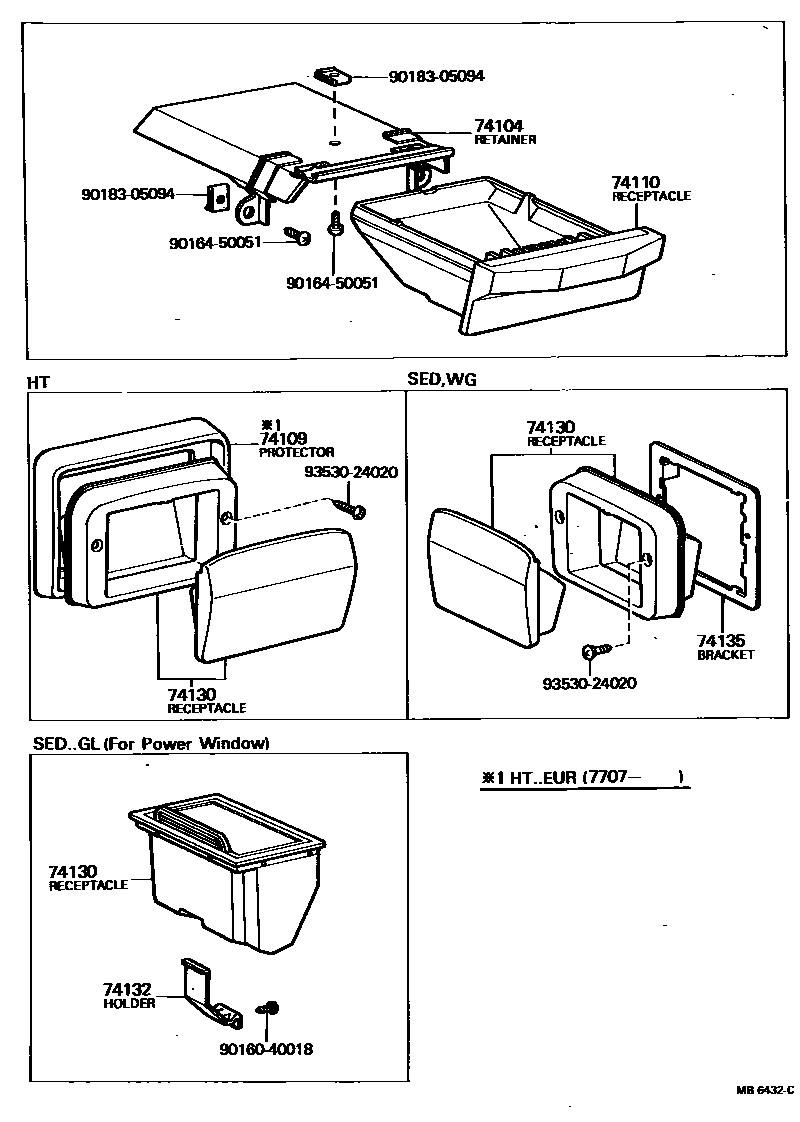

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-22050iMX3#,RX3#,TX30197612-198008

74109PROTECTOR SUB-ASSY, REAR ASH RECEPTACLE

main74109-95800×2iRX30..HT..EUG197707-198008

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-22010-03iMX3#,RX3#..DLX,SDX197612-197808

GRAY M.,GRAY,TRIM1#,2#

main74102-22010-13iMX3#,RX3#..DLX,SDX197612-197808

SILVER M.,GRAY,TRIM4#

main74102-22010-23iMX3#,RX3#..DLX,GL,SDX197808-198008

SILVER,GRAY

main74102-22020iRX3#,TX30..STD197612-198008

74130RECEPTACLE ASSY, REAR ASH

main74130-22020-01×2iRX35..3H..GEN;MX3#,RX30,TX30;RX35..3FC,4F,5F197612-198008

BLACK,BLACK,TRIM2#

main74130-22020-02×2iMX3#,RX3#,TX30197808-198008

GRAY,RED/MAROON,TRIM3#

main74130-22020-03×2iMX3#,RX30;RX35..3H..GEN;RX35..3FC,4F,5F197612-197808

GRAY,GRAY,TRIM1#

main74130-22020-05×2iRX35..3H..GEN;MX3#,RX30,TX30;RX35..3FC,4F,5F197612-198008

BEIGE,BEIGE,TRIM4#

main74130-22030×2iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR

74132HOLDER, REAR ASH RECEPTACLE

main74239-30020×2iRX30..SED..GL..(EUR,GEN)197808-198008

74135BRACKET, REAR ASH RECEPTACLE

main67641-30010×2iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG197612-198008

9016040018

main90160-40018

9016450051

main90164-50051

9018305094

main90183-05094

9353024020

main93530-24020

10 parts on this diagram · 1 diagram in section
