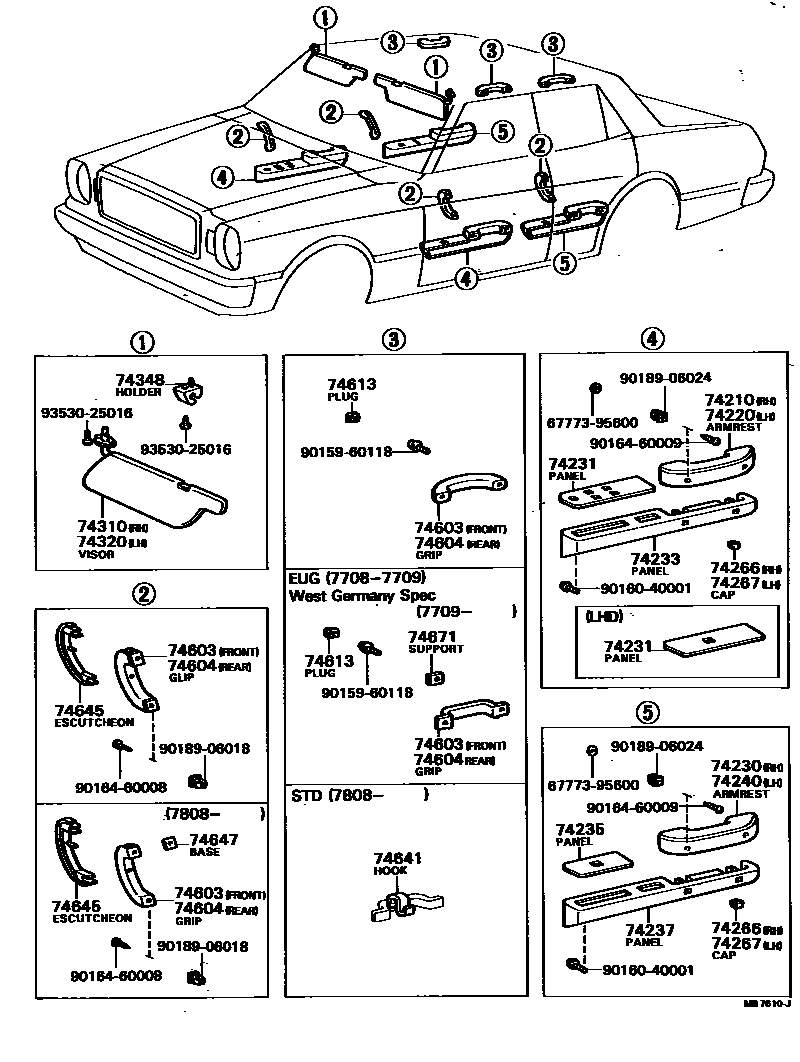

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
FOR EXTRA INTERIOR,BLACK,BLACK,TRIM2#
FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#
FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#
74220ARMREST ASSY, FRONT, LH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
FOR POWER WINDOW,BLACK,BLACK,TRIM2#
FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#
FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#
74230ARMREST ASSY, REAR, RH
FOR POWER WINDOW,BLACK,BLACK,TRIM2#
FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#
FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
RH.
FOR EXTRA INTERIOR,RH.
LH.
LH.
74233PANEL, FRONT ARMREST BASE, LOWER
RH.BLACK,BLACK,TRIM2#
FOR EXTRA INTERIOR,RH.D.WINE,RED/MAROON,TRIM3#
RH.BEIGE,BEIGE,TRIM4#
LH.BLACK,BLACK,TRIM2#
FOR EXTRA INTERIOR,LH.D.WINE,RED/MAROON,TRIM3#
LH.BEIGE,BEIGE,TRIM4#
74235PANEL, REAR ARMREST BASE, UPPER
FOR EXTRA INTERIOR,RH.
FOR EXTRA INTERIOR,LH.
74237PANEL, REAR ARMREST BASE, LOWER
FOR EXTRA INTERIOR,RH.BLACK,BLACK,TRIM2#
FOR EXTRA INTERIOR,RH.D.WINE,RED/MAROON,TRIM3#
RH.BEIGE,BEIGE,TRIM4#
LH.BLACK,BLACK,TRIM2#
LH.DARK WINE,RED/MAROON,TRIM3#
FOR EXTRA INTERIOR,LH.BEIGE,BEIGE,TRIM4#
74240ARMREST ASSY, REAR, LH
FOR EXTRA INTERIOR,BLACK,BLACK,TRIM2#
FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#
FOR EXTRA INTERIOR,BEIGE,BEIGE,TRIM4#
FOR POWER WINDOW,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#
74266CAP, DOOR ARMREST, RH
BLACK,BLACK,TRIM2#
FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
74267CAP, DOOR ARMREST, LH
FOR EXTRA INTERIOR,BLACK,BLACK,TRIM2#
FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
74310VISOR ASSY, RH
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
74320VISOR ASSY, LH
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
74348HOLDER, VISOR
GRAY,GRAY
74603GRIP SUB-ASSY, ASSIST, FRONT
FOR ROOF SIDE,GRAY,GRAY,TRIM1#,2#
FOR ROOF SIDE,BEIGE,BEIGE,TRIM4#
FOR ROOF SIDE,GRAY,GRAY,TRIM1#,2#
ROOF SIDE,BEIGE,WEST GARMANY,BEIGE,TRIM4#
ROOF SIDE,IVORY,WEST GARMANY,IVORY,TRIM2#,3#
FOR ROOF SIDE,BEIGE,BEIGE,TRIM4#
FOR ROOF SIDE,IVORY,IVORY,TRIM2#,3#
FOR DOOR,BLACK,BLACK,TRIM2#
FOR DOOR,DARK WINE,RED/MAROON,TRIM3#
FOR DOOR,GRAY,GRAY,TRIM1#
FOR DOOR,BEIGE,BEIGE,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
FOR ROOF SIDE,GRAY,GRAY,TRIM1#,2#
FOR ROOF SIDE,BEIGE,BEIGE,TRIM4#
FOR ROOF SIDE,BEIGE,BEIGE,TRIM4#
FOR ROOF SIDE,GRAY,GRAY,TRIM1#,2#
FOR ROOF SIDE,GRAY,GRAY,TRIM1#,2#
ROOF SIDE,BEIGE,WEST GARMANY,BEIGE,TRIM4#
ROOF SIDE,IVORY,WEST GARMANY,IVORY,TRIM2#,3#
FOR ROOF SIDE,GRAY,GRAY,TRIM1#,2#
FOR ROOF SIDE,BEIGE,BEIGE,TRIM4#
ROOF SIDE,IVORY,WEST GARMANY,IVORY,TRIM2#,3#
FOR ROOF SIDE,BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
FOR ROOF SIDE,BEIGE,BEIGE,TRIM4#
FOR ROOF SIDE,IVORY,IVORY,TRIM2#,3#
FOR DOOR,BLACK,BLACK,TRIM2#
FOR DOOR,DARK WINE,RED/MAROON,TRIM3#
FOR DOOR,GRAY,GRAY,TRIM1#
FOR DOOR,BEIGE,BEIGE,TRIM4#
74613PLUG, ASSIST GRIP
FOR REAR,BEIGE,BEIGE,TRIM4#
FOR REAR,GRAY,GRAY,TRIM1#,2#
FOR FRONT,GRAY,GRAY,TRIM1#,2#; GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#; FOR FRONT,BEIGE,BEIGE,TRIM4#
L.BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM2#,3#
GRAY,WEST GARMANY SPEC.,GRAY,TRIM1#,2#
BEIGE,WEST GARMANY SPEC.,BEIGE,TRIM4#
IVORY,WEST GARMANY SPEC.,IVORY,TRIM2#,3#
74641HOOK, COAT, B
L.BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM2#,3#
74645ESCUTCHEON, DOOR ASSIST GRIP
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
74647BASE, DOOR ASSIST GRIP
74671SUPPORT, ASSIST GRIP
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
IVORY,WEST GARMANY SPEC.,IVORY,TRIM2#,3#
6777395600
main67773-95600
9015960118
main90159-60118
9016040001
main90160-40001
9016460008
main90164-60008
9016460009
main90164-60009
9018906018
main90189-06018
9018906024
main90189-06024
9353025016
main93530-25016
28 parts on this diagram · 1 diagram in section
