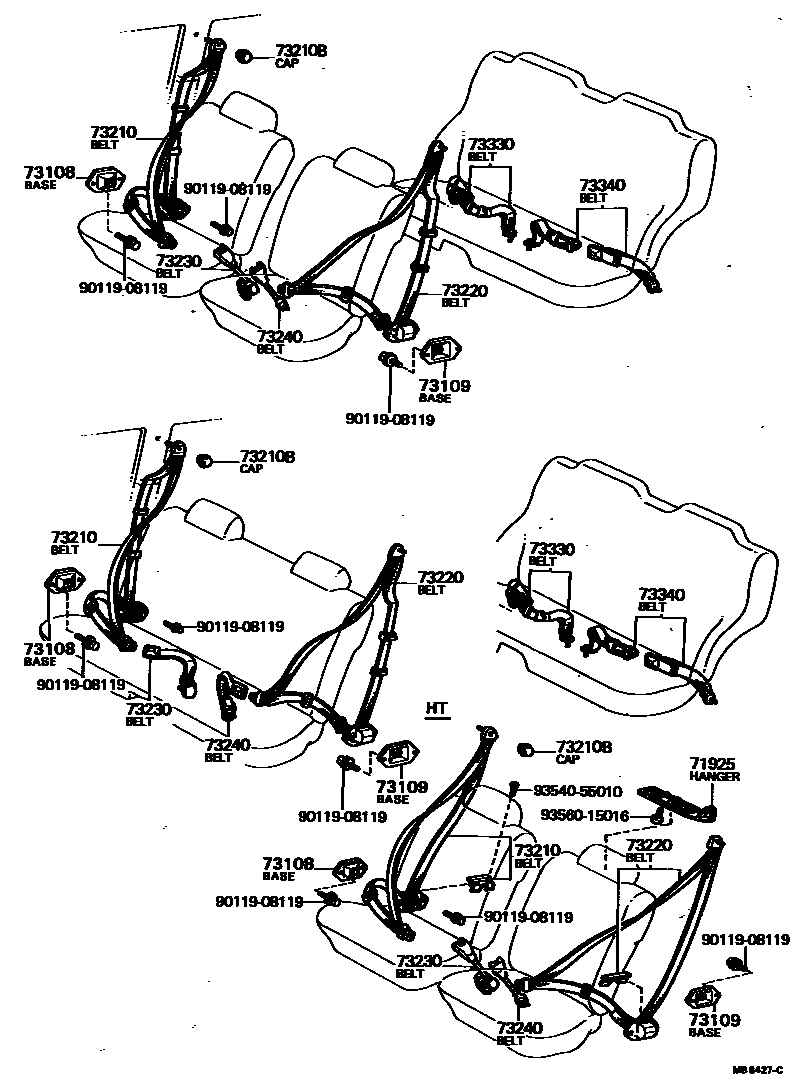

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1 0003 1 0004 1

71925HANGER, SEAT BELT

main73106-95800-01iRX30..HT..GEN197612-197708

FOR RH.BLACK,BLACK,TRIM2#

main73106-95800-02iRX30..HT197808-198008

FOR RH.DARK WINE,RED/MAROON,TRIM3#

main73106-95800-03iRX30..HT..GEN197612-197808

FOR RH.GRAY,GRAY,TRIM1#

main73106-95800-05iRX30..HT197612-198008

FOR RH.BEIGE,BEIGE,TRIM4#

main73106-95801iRX30..HT197708-198008

FOR RH.BLACK

main73107-95800-01iRX30..HT..RHD197612-197708

FOR LH.BLACK,BLACK,TRIM2#

main73107-95800-02iRX30..HT..RHD197808-198008

FOR LH.DARK WINE,RED/MAROON,TRIM3#

main73107-95800-03iRX30..HT..RHD197612-197808

FOR LH.GRAY,GRAY,TRIM1#

main73107-95800-05iRX30..HT..RHD197612-198008

FOR LH.BEIGE,BEIGE,TRIM4#

main73107-95801-01iRX30..HT..LHD..GEN197612-197708

FOR LH.BLACK,BLACK,TRIM2#

main73107-95801-02iRX30..HT..LHD197808-198008

FOR LH.DARK WINE,RED/MAROON,TRIM3#

main73107-95801-03iRX30..HT..LHD..GEN197612-197808

FOR LH.GRAY,GRAY,TRIM1#

main73107-95801-05iRX30..HT..LHD197612-198008

FOR LH.BEIGE,BEIGE,TRIM4#

main73107-95802iRX30..HT..RHD197708-198008

FOR LH.BLACK

main73107-95803iRX30..HT..LHD197708-198008

FOR LH.BLACK

73108BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH

main73108-22010iMX32,RX3#..(SED,WG)..(EUR,GEN,SA)197612-197808

main73108-95800iRX30..HT197612-197808

73109BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH

main73108-22010iRX3#..(SED,WG)..EUG197808-198008

main73109-95800iRX30..HT..GEN197808-198008

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-22110-01iRX3#..(SED,WG)..GEN197612-197808

BLACK,BLACK,TRIM2#

main73210-22110-03iRX3#..(SED,WG)..GEN197612-197808

GRAY,GRAY,TRIM1#

main73210-22110-05iRX3#..(SED,WG)..GEN197612-197707

BEIGE,BEIGE,TRIM4#

main73210-22110-15iRX3#..(SED,WG)..GEN197707-197808

BEIGE,BEIGE,TRIM4#

main73210-22111-01iRX3#..(SED,WG)..GEN197808-198008

BLACK,BLACK,TRIM2#

main73210-22111-02iRX3#..(SED,WG)..GEN197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73210-22111-05iRX3#..(SED,WG)..GEN197808-198008

BEIGE,BEIGE,TRIM4#

main73210-22130-01iMX3#..ARL197612-197808

BLACK,BLACK,TRIM2#

main73210-22130-05iMX3#197612-197707

BEIGE,BEIGE,TRIM4#

main73210-22130-11iMX3#..ARL197612-197808

BELT-BLACK,ANCHOR COVER-GRAY,BLACK,TRIM1#

main73210-22130-25iMX3#..ARL197707-197808

BEIGE,BEIGE,TRIM4#

main73210-22131-01iMX3#..ARL197808-198008

BLACK,BLACK,TRIM2#

main73210-22131-02iMX3#..ARL197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73210-22131-05iMX3#..ARL197808-198008

BEIGE,BEIGE,TRIM4#

main73210-22140-01iRX3#..(SED,WG)..(3FC,4F,5F)..EUR197612-197808

BLACK,BLACK,TRIM2#

main73210-22140-05iRX3#..(SED,WG)..(3FC,4F,5F)..EUG197612-197707

BEIGE,BEIGE,TRIM4#

main73210-22140-11iRX3#..(SED,WG)..(3FC,4F,5F)..EUR197612-197808

BELT-BLACK,ANCHOR COVER-GRAY,BLACK,TRIM1#

main73210-22140-25iRX3#..(SED,WG)..(3FC,4F,5F)..EUR197707-197808

BEIGE,BEIGE,TRIM4#

main73210-22141-01iRX3#..(SED,WG)..EUR197808-198008

BLACK,BLACK,TRIM2#

main73210-22141-02iRX3#..(SED,WG)..EUR197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73210-22141-05iRX3#..(SED,WG)..EUR197808-198008

BEIGE,BEIGE,TRIM4#

main73210-95800-01iRX30..HT..GEN197612-197808

BLACK,BLACK,TRIM2#

main73210-95800-03iRX30..HT..GEN197612-197808

GRAY,GRAY,TRIM1#

main73210-95800-05iRX30..HT..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73210-95801-01iRX30..HT..EUG197612-197808

BLACK,BLACK,TRIM2#

main73210-95801-03iRX30..HT..EUG197612-197808

GRAY,GRAY,TRIM1#

main73210-95801-05iRX30..HT..EUG197612-197808

BEIGE,BEIGE,TRIM4#

main73210-95803-01iRX30..HT..EUG197808-198008

BLACK,BLACK,TRIM2#

main73210-95803-02iRX30..HT..EUG197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73210-95803-05iRX30..HT..EUG197808-198008

BEIGE,BEIGE,TRIM4#

main73210-95804-01iRX30..HT..GEN197808-198008

BLACK,BLACK,TRIM2#

main73210-95804-02iRX30..HT..GEN197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73210-95804-05iRX30..HT..GEN197808-198008

BEIGE,BEIGE,TRIM4#

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-02×2iMX3#,RX3#..(SED,WG)..(ARL,EUR,GEN)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73178-12010-03×2iMX3#,RX3#..ARL,EUR,GEN197612-197808

GRAY,GRAY,TRIM1#

main73178-12010-08×2iRX30..HT197808-198008

IVORY,IVORY,TRIM2#,3#

main73178-12010-11×2iMX3#,RX3#..ARL,EUR,GEN197612-197808

BLACK,BLACK,TRIM2#

main73178-12010-15×2iMX3#,RX3#..ARL,EUR,GEN197612-198008

BEIGE,BEIGE,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-22020-01iRX3#..(SED,WG)..GEN197612-197808

BLACK,BLACK,TRIM2#

main73220-22020-03iRX3#..(SED,WG)..GEN197612-197808

GRAY,GRAY,TRIM1#

main73220-22020-05iRX3#..(SED,WG)..GEN197612-197707

BEIGE,BEIGE,TRIM4#

main73220-22020-15iRX3#..(SED,WG)..GEN197707-197808

BEIGE,BEIGE,TRIM4#

main73220-22021-01iRX3#..(SED,WG)..GEN197808-198008

BLACK,BLACK,TRIM2#

main73220-22021-02iRX3#..(SED,WG)..GEN197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73220-22021-05iRX3#..(SED,WG)..GEN197808-198008

BEIGE,BEIGE,TRIM4#

main73220-22040-01iMX3#..ARL197612-197808

BLACK,BLACK,TRIM2#

main73220-22040-05iMX3#197612-197707

BEIGE,BEIGE,TRIM4#

main73220-22040-11iMX3#..ARL197612-197808

BELT-BLACK,ANCHOR COVER-GRAY,BLACK,TRIM1#

main73220-22040-25iMX3#..ARL197707-197808

BEIGE,BEIGE,TRIM4#

main73220-22041-01iMX3#..ARL197808-198008

BLACK,BLACK,TRIM2#

main73220-22041-02iMX3#..ARL197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73220-22041-05iMX3#..ARL197808-198008

BEIGE,BEIGE,TRIM4#

main73220-22050-01iRX3#..(SED,WG)..(3FC,4F,5F)..EUR197612-197808

BLACK,BLACK,TRIM2#

main73220-22050-05iRX3#..(SED,WG)..(3FC,4F,5F)..EUG197612-197707

BEIGE,BEIGE,TRIM4#

main73220-22050-11iRX3#..(SED,WG)..(3FC,4F,5F)..EUR197612-197808

BELT-BLACK,ANCHOR COVER-GRAY,BLACK,TRIM1#

main73220-22050-25iRX3#..(SED,WG)..(3FC,4F,5F)..EUR197707-197808

BEIGE,BEIGE,TRIM4#

main73220-22051-01iRX3#..(SED,WG)..EUR197808-198008

BLACK,BLACK,TRIM2#

main73220-22051-02iRX3#..(SED,WG)..EUR197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73220-22051-05iRX3#..(SED,WG)..EUR197808-198008

BEIGE,BEIGE,TRIM4#

main73220-95800-01iRX30..HT..GEN197612-197808

BLACK,BLACK,TRIM2#

main73220-95800-03iRX30..HT..GEN197612-197808

GRAY,GRAY,TRIM1#

main73220-95800-05iRX30..HT..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73220-95801-01iRX30..HT..EUG197612-197808

BLACK,BLACK,TRIM2#

main73220-95801-03iRX30..HT..EUG197612-197808

GRAY,GRAY,TRIM1#

main73220-95801-05iRX30..HT..EUG197612-197808

BEIGE,BEIGE,TRIM4#

main73220-95803-01iRX30..HT..EUG197808-198008

BLACK,BLACK,TRIM2#

main73220-95803-02iRX30..HT..EUG197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73220-95803-05iRX30..HT..EUG197808-198008

DARK WINE,BEIGE,TRIM3#

main73220-95804-01iRX30..HT..GEN197808-198008

BLACK,BLACK,TRIM2#

main73220-95804-02iRX30..HT..GEN197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73220-95804-05iRX30..HT..GEN197808-198008

BEIGE,BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-22080-01iRX3#..(3FC,4F)..GEN197612-197808

BLACK,BLACK,TRIM2#

main73230-22080-03iRX3#..(3FC,4F)..GEN197612-197808

GRAY,GRAY,TRIM1#

main73230-22080-05iRX3#..(3FC,4F)..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73230-22081-01iRX3#..(3FC,4F,5F)..GEN197808-198002

BLACK,BLACK,TRIM2#

main73230-22081-02iRX3#..(3FC,4F,5F)..GEN197808-198002

DARK WINE,RED/MAROON,TRIM3#

main73230-22081-05iRX3#..(3FC,4F,5F)..GEN197808-198002

BEIGE,BEIGE,TRIM4#

main73230-22082-01iRX3#..(3FC,4F,5F)..GEN198002-198008

BLACK,BLACK,TRIM2#

main73230-22082-02iRX3#..(3FC,4F,5F)..GEN198002-198008

DARK WINE,RED/MAROON,TRIM3#

main73230-22082-05iRX3#..(3FC,4F,5F)..GEN198002-198008

BEIGE,BEIGE,TRIM4#

main73230-22100-01iRX3#..3H..GEN197612-197808

BLACK,BLACK,TRIM2#

main73230-22100-05iRX3#..3H..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73230-22100-13iRX3#..3H..GEN197612-197808

GRAY,GRAY,TRIM1#

main73230-22101-01iRX3#..3H197808-198002

BLACK,BLACK,TRIM2#

main73230-22101-02iRX3#..3H197808-198002

DARK WINE,RED/MAROON,TRIM3#

main73230-22101-05iRX3#..3H197808-198002

BEIGE,BEIGE,TRIM4#

main73230-22102-01iRX3#..3H198002-198008

BLACK,BLACK,TRIM2#

main73230-22102-02iRX3#..3H198002-198008

DARK WINE,RED/MAROON,TRIM3#

main73230-22102-05iRX3#..3H198002-198008

BEIGE,BEIGE,TRIM4#

main73230-22110-01iMX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)197612-197808

BLACK,BLACK,TRIM2#

main73230-22110-03iMX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)197612-197808

GRAY,GRAY,TRIM1#

main73230-22110-05iMX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)197612-197808

BEIGE,BEIGE,TRIM4#

main73230-22111-01iMX3#,RX3#..ARL,EUR197808-198008

BLACK,BLACK,TRIM2#

main73230-22111-02iMX3#,RX3#..ARL,EUR197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73230-22111-05iMX3#,RX3#..ARL,EUR197808-198008

BEIGE,BEIGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-22080-01iRX3#..(3FC,4F)..GEN197612-197808

BLACK,BLACK,TRIM2#

main73230-22080-03iRX3#..(3FC,4F)..GEN197612-197808

GRAY,GRAY,TRIM1#

main73230-22080-05iRX3#..(3FC,4F)..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73230-22081-01iRX3#..(3FC,4F,5F)..GEN197808-198002

BLACK,BLACK,TRIM2#

main73230-22081-02iRX3#..(3FC,4F,5F)..GEN197808-198002

DARK WINE,RED/MAROON,TRIM3#

main73230-22081-05iRX3#..(3FC,4F,5F)..GEN197808-198002

BEIGE,BEIGE,TRIM4#

main73230-22082-01iRX3#..(3FC,4F,5F)..GEN198002-198008

BLACK,BLACK,TRIM2#

main73230-22082-02iRX3#..(3FC,4F,5F)..GEN198002-198008

DARK WINE,RED/MAROON,TRIM3#

main73230-22082-05iRX3#..(3FC,4F,5F)..GEN198002-198008

BEIGE,BEIGE,TRIM4#

main73230-22100-01iRX3#..3H..GEN197612-197808

BLACK,BLACK,TRIM2#

main73230-22100-05iRX3#..3H..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73230-22100-13iRX3#..3H..GEN197612-197808

GRAY,GRAY,TRIM1#

main73230-22101-01iRX3#..3H197808-198002

BLACK,BLACK,TRIM2#

main73230-22101-02iRX3#..3H197808-198002

DARK WINE,RED/MAROON,TRIM3#

main73230-22101-05iRX3#..3H197808-198002

BEIGE,BEIGE,TRIM4#

main73230-22102-01iRX3#..3H198002-198008

BLACK,BLACK,TRIM2#

main73230-22102-02iRX3#..3H198002-198008

DARK WINE,RED/MAROON,TRIM3#

main73230-22102-05iRX3#..3H198002-198008

BEIGE,BEIGE,TRIM4#

main73230-22110-01iMX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)197612-197808

BLACK,BLACK,TRIM2#

main73230-22110-03iMX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)197612-197808

GRAY,GRAY,TRIM1#

main73230-22110-05iMX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)197612-197808

BEIGE,BEIGE,TRIM4#

main73230-22111-01iMX3#,RX3#..ARL,EUR197808-198008

BLACK,BLACK,TRIM2#

main73230-22111-02iMX3#,RX3#..ARL,EUR197808-198008

DARK WINE,RED/MAROON,TRIM3#

main73230-22111-05iMX3#,RX3#..ARL,EUR197808-198008

BEIGE,BEIGE,TRIM4#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-22010-01iRX3#..GEN197612-197808

BLACK,BLACK,TRIM2#

main73330-22010-03iRX3#..GEN197612-197808

GRAY,GRAY,TRIM1#

main73330-22010-05iRX3#..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73330-22011-01iRX3#..GEN197808-198002

BLACK,BLACK,TRIM2#

main73330-22011-02iRX3#..GEN197808-198002

DARK WINE,RED/MAROON,TRIM3#

main73330-22011-05iRX3#..GEN197808-198002

BEIGE,BEIGE,TRIM4#

main73330-22012-01iRX3#..GEN198002-198008

BLACK,BLACK,TRIM2#

main73330-22012-02iRX3#..GEN198002-198008

DARK WINE,RED/MAROON,TRIM3#

main73330-22012-05iRX3#..GEN198002-198008

BEIGE,BEIGE,TRIM4#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-22010-01iRX3#..GEN197612-197808

BLACK,BLACK,TRIM2#

main73330-22010-03iRX3#..GEN197612-197808

GRAY,GRAY,TRIM1#

main73330-22010-05iRX3#..GEN197612-197808

BEIGE,BEIGE,TRIM4#

main73330-22011-01iRX3#..GEN197808-198002

BLACK,BLACK,TRIM2#

main73330-22011-02iRX3#..GEN197808-198002

DARK WINE,RED/MAROON,TRIM3#

main73330-22011-05iRX3#..GEN197808-198002

BEIGE,BEIGE,TRIM4#

main73330-22012-01iRX3#..GEN198002-198008

BLACK,BLACK,TRIM2#

main73330-22012-02iRX3#..GEN198002-198008

DARK WINE,RED/MAROON,TRIM3#

main73330-22012-05iRX3#..GEN198002-198008

BEIGE,BEIGE,TRIM4#

9011908119

main90119-08119

9354055010

main93540-55010

9356015016

main93560-15016

13 parts on this diagram · 4 diagrams in section
