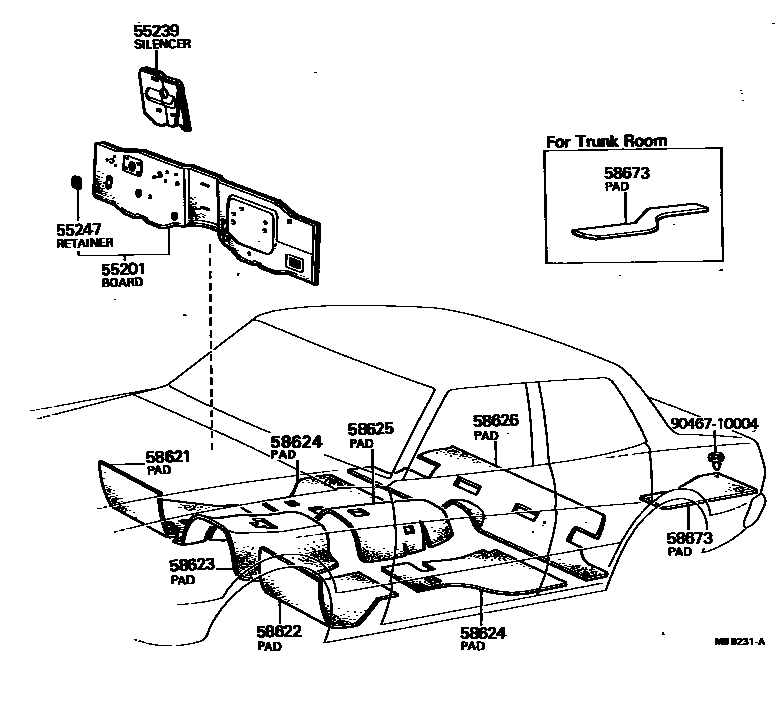

DASH SILENCER BOARD & FLOOR SILENCER PAD

55201BOARD SUB-ASSY, DASH PANEL SILENCER

main55210-22030iMX3#,RX3#..RHD197612-197709

main55210-22040iMX3#,RX3#,TX30..RHD197709-198008

main55210-22050iRX3#..LHD197709-197902

main55210-22051iRX3#..LHD197902-198008

main55210-22060iRX3#..LHD197612-197709

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-22020iMX3#,RX3#,TX30..RHD..(3FC,4F,5F)197612-198008

main55212-22030iRX3#..RHD..3H197612-198008

main55212-22040iRX3#..LHD..(3FC,4F,5F)197704-198008

main55212-22050iRX3#..LHD..3H197704-198008

55247RETAINER, DASH PANEL SILENCER BOARD

main55217-22010iMX3#,RX3#,TX30..RHD197802-198008

58621PAD, FLOOR SILENCER, FRONT RH

main58621-22050iRX3#,TX30..STD197612-198008

58622PAD, FLOOR SILENCER, FRONT LH

main58621-22050iRX3#,TX30..STD197612-198008

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-22070iRX3#..3H197612-198008

main58623-22080iMX3#,RX3#,TX30..3FC,4F,5F197612-198008

58624PAD, FLOOR SILENCER, REAR SIDE

main58634-22010×2iRX30,TX30..STD;RX35..4F..STD..EUG;RX35..STD..(GEN,SA)197612-198008

58625PAD, FLOOR SILENCER, REAR CENTER

main58636-22010iRX3#..3H..STD..GEN197612-198008

main58636-22020iRX3#,TX30..(3FC,4F)..STD197612-198008

58626PAD, FLOOR SILENCER, REAR

main58624-22050iMX32,RX30,TX30197612-198008

main58624-91604iRX35..3H..GEN;MX36,RX35..3FC,4F,5F197612-198008

58673PAD, REAR FLOOR SILENCER, NO.1

main58676-22010iMX32,RX30,TX30197612-198008

FOR TRUNK ROOM

main58676-91603×2iRX35..STD..(EUR,GEN)197612-198008

9046710004

main90467-10004

11 parts on this diagram · 1 diagram in section
